Sensata / Crydom HD Series Solid State Relay, 12 A rms Load, Panel Mount, 530 V ac Load, 32 V dc Control
- RS Stock No.:
- 145-0597
- Mfr. Part No.:
- HD48125K
- Brand:
- Sensata / Crydom
Available to back order for despatch 01/10/2024
Added
Price Each
£114.31
(exc. VAT)
£137.17
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £114.31 |
| 5 - 9 | £108.59 |
| 10 - 24 | £102.88 |
| 25 - 49 | £97.16 |
| 50 + | £91.45 |
- RS Stock No.:
- 145-0597
- Mfr. Part No.:
- HD48125K
- Brand:
- Sensata / Crydom
Legislation and Compliance
- COO (Country of Origin):
- MX
Product Details

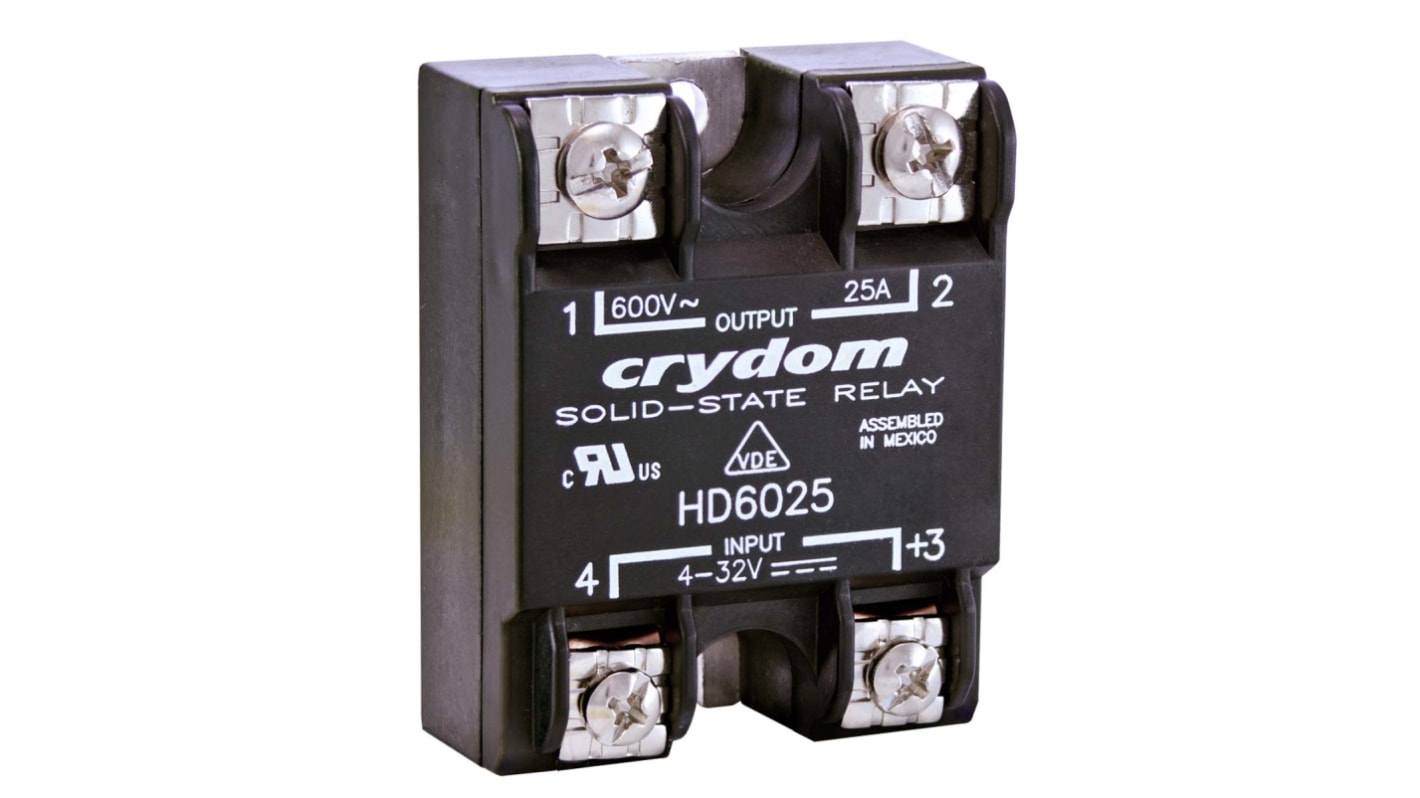

Crydom HA/HD Series Solid State Relays
Crydom HA/HD series robust and versatile panel mount solid state relays. These powerful SSRs have superior thermal performance thanks to the use of DBC technology. The HA/HD series solid state relays feature anti-rotation barriers, flexible control voltage options and a wide range of power ratings.
Features and Benefits
SCR output for heavy industrial loads
Zero Voltage or instantaneous turn-on outputs
UL/CSA/VDE Approved, CE Compliant to EN60950-1
Improved SEMS screw and washer
Anti-rotation barriers
AC or DC control
Direct Bond Copper (DBC) substrate
EMC compliant to Level 3
Direct power lead frame
Epoxy free design
Note
Heat sink not included. For load current de-rating and heat sink details see manufacturers datasheet
Caution
Derating will limit the maximum load current at temperatures above 25 °C
Approvals
UL recognised component for Canada and US, VDE
Crydom Solid State Relay and Accessories
Specifications
Attribute | Value |
|---|---|
| Maximum Load Current | 12 A rms |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 530 V ac |
| Minimum Load Voltage | 48 V ac |
| Minimum Control Voltage | 4 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero Cross |
| Control Voltage Range | 4 → 32 V dc |
| Minimum Load Current | 150mA rms |
| Number of Poles | 1 |
| Terminal Type | Screw |
| Output Device | SCR |
| Relay Type | Solid State Relay |
| Load Voltage Range | 48 → 530V ac |
| Maximum Turn On Time | 1/2 cycle |
| Series | HD |
| Dimensions | 44.5 x 57.3 x 26.4mm |
| Off State Leakage Current | 1mArms |
| Length | 44.5mm |
| Minimum Operating Temperature | -40°C |
| Standards Met | CE, CSA LR 81689, cULus Recognised E116949, cULus Recognised E116950, EN 60950-1, IEC, IEC 60068-2-27, IEC 60068-2-6, IEC 61000-4-2, IEC 61000-4-4, IEC 62314, UL, VDE Approved 10143 UG |
| Operating Temperature Range | -40 → +80°C |
| Height | 26.4mm |
| Capacitance | 8pF |
| Depth | 57.3mm |
| Maximum Operating Temperature | +80°C |
| Special Features | AC or DC Control, Direct Bond Copper Substrate, Direct Power Lead Frame, Epoxy-Free Design, Improved SEMS Screw & Washer, Redesigned Housing with Anti-Rotation Barriers |
- RS Stock No.:
- 145-0597
- Mfr. Part No.:
- HD48125K
- Brand:
- Sensata / Crydom
