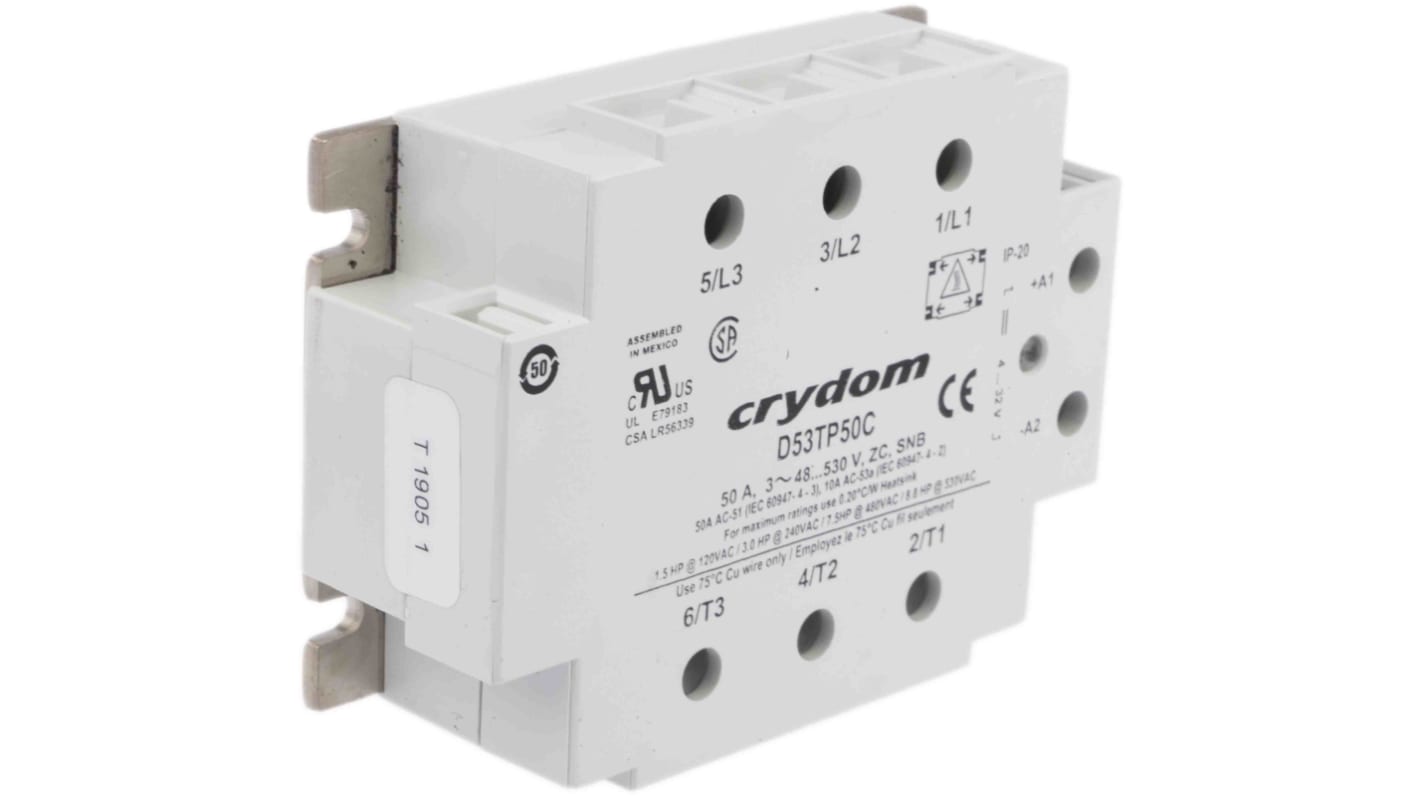

Sensata Crydom 53TP Series Solid State Relay, 50 A rms Load, Panel Mount, 530 V ac Load, 32 V dc Control

RS Stock No.:: 720-3928
Mfr. Part No.:: D53TP50C
Brand:: Sensata / Crydom

Sensata Crydom 53TP Series Solid State Relay, 50 A rms Load, Panel Mount, 530 V ac Load, 32 V dc Control

View all Solid State Relays

Bulk discount available

Subtotal (1 unit)*

£225.76

(exc. VAT)

£270.91

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

3 unit(s) ready to ship
Plus 10 unit(s) shipping from 18 November 2025
Plus 10 unit(s) shipping from 27 January 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£225.76
5 - 9	£214.47
10 - 24	£203.18
25 - 49	£191.89
50 +	£180.60

*price indicative

RS Stock No.:: 720-3928
Mfr. Part No.:: D53TP50C
Brand:: Sensata / Crydom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Sensata / Crydom
	Maximum Load Current	50 A rms
	Mounting Type	Panel Mount
	Maximum Load Voltage	530 V ac
	Minimum Load Voltage	48 V ac
	Minimum Control Voltage	4 V dc
	Maximum Control Voltage	32 V dc
	Switching Type	Zero Cross
	Control Voltage Range	4 → 32 V dc
	Minimum Load Current	0.1 A rms
	Terminal Type	Screw
	Output Device	SCR
	Relay Type	Solid State Relay
	Package Style	IP20 or IP00
	Load Voltage Range	48 → 530Vrms
	Maximum Turn On Time	8.33ms
	Series	53TP
	Dimensions	101.3 x 35.4 x 79.7mm
	Capacitance	8pF
	Maximum Operating Temperature	+80°C
	Standards Met	CE, RoHS Compliant
	Off State Leakage Current	3mA rms
	Length	101.3mm
	Operating Temperature Range	-40 → +80°C
	Minimum Operating Temperature	-40°C
	Depth	35.4mm
	Height	79.7mm

	Select all
	Brand Sensata / Crydom
	Maximum Load Current 50 A rms
	Mounting Type Panel Mount
	Maximum Load Voltage 530 V ac
	Minimum Load Voltage 48 V ac
	Minimum Control Voltage 4 V dc
	Maximum Control Voltage 32 V dc
	Switching Type Zero Cross
	Control Voltage Range 4 → 32 V dc
	Minimum Load Current 0.1 A rms
	Terminal Type Screw
	Output Device SCR
	Relay Type Solid State Relay
	Package Style IP20 or IP00
	Load Voltage Range 48 → 530Vrms
	Maximum Turn On Time 8.33ms
	Series 53TP
	Dimensions 101.3 x 35.4 x 79.7mm
	Capacitance 8pF
	Maximum Operating Temperature +80°C
	Standards Met CE, RoHS Compliant
	Off State Leakage Current 3mA rms
	Length 101.3mm
	Operating Temperature Range -40 → +80°C
	Minimum Operating Temperature -40°C
	Depth 35.4mm
	Height 79.7mm

COO (Country of Origin):: MX

Sensata | Crydom Solid-State Relay, 101.3mm Length, 50A Rated Load Current - 53TP Series - D53TP50C

Ensure speedy switching of your circuit with this solid-state relay from Sensata | Crydom. Its light-based semiconductors snap circuits open and closed without moving parts, so it cuts down on mechanical wear to keep going strong for longer. You can wire up the device in no time, thanks to its simple screw termination method. As the component comes with built-in transient voltage protection, it shuts down the risk of damage from electrical faults. You'll find SSRs like this one used for controlling data acquisition and material handling systems.

Features & Benefits

• LED indicator clearly shows input status for quick spot-checks
• Turn-on time of 8.33ms means it's up and running in a flash
• Labelled front plate for easy connection identification
• Touch-proof cover for safe handling during installation and inspection
• Compact dimensions of 101.3 (L) x 36.8 (W) x 79.7mm (H) to take up minimal space in your setup

What's the current rating of this SSR?

This SSR has a rated load current of 50A, so it's a go-to choice for heavy-duty industrial applications.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.
