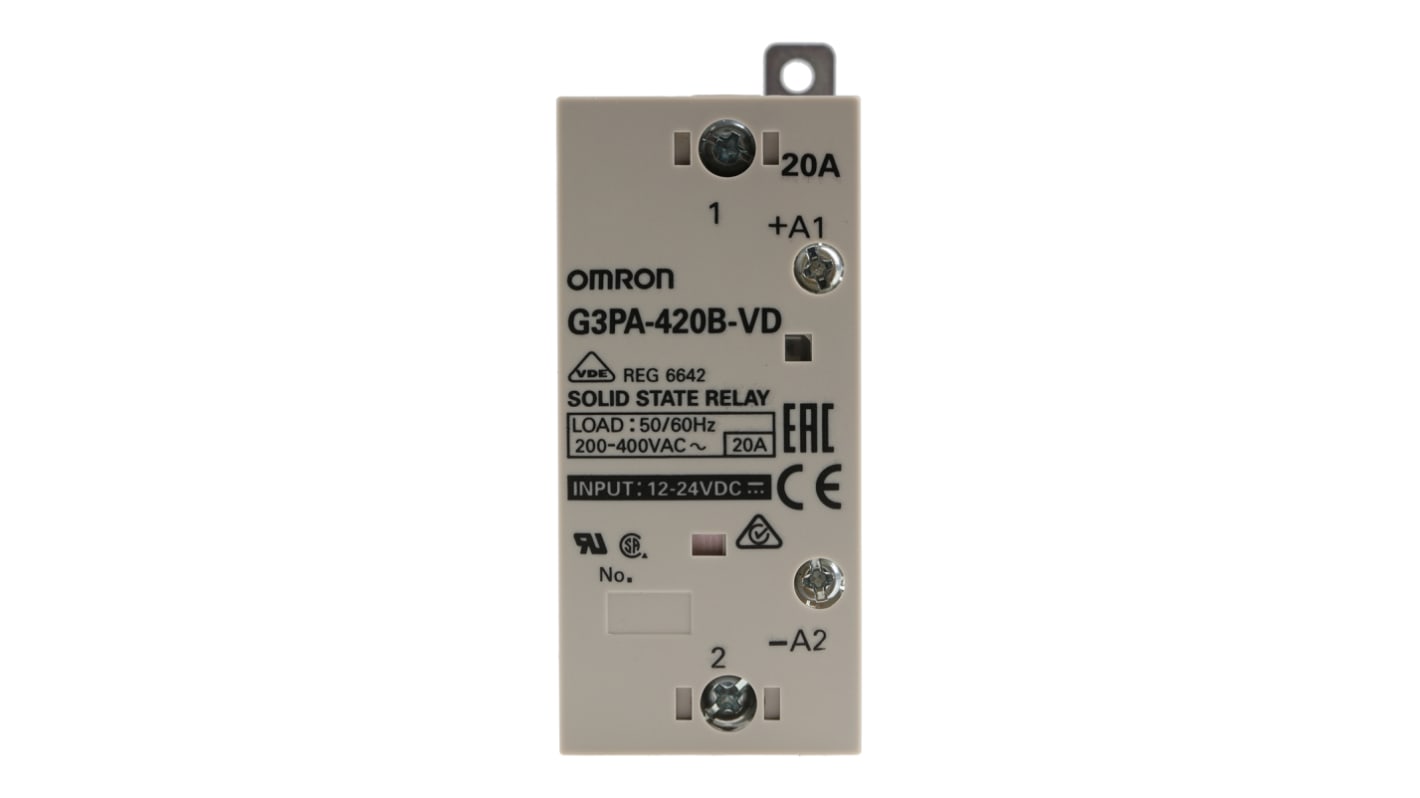

Omron G3PA Series Solid State Relay, 20 A Load, Panel Mount, 440 V Load, 30 V Control

RS Stock No.:: 513-3638
Mfr. Part No.:: G3PA-420B-VD DC12-24
Brand:: Omron

Omron G3PA Series Solid State Relay, 20 A Load, Panel Mount, 440 V Load, 30 V Control

Bulk discount available

Price Each

£136.50

(exc. VAT)

£163.80

(inc. VAT)

4 In stock - FREE next working day delivery available*

6 available from Europe for delivery within 2 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 4	£136.50
5 - 9	£132.32
10 +	£126.67

RS Stock No.:: 513-3638
Mfr. Part No.:: G3PA-420B-VD DC12-24
Brand:: Omron

DIN Rail Mount SSR's

Replaceable SSR power cartridge
DIN rail or surface mounting options
Finger protected terminals
LED input status indicator
Thermal overload indicator changes colour permanently to indicate possibility of a damaged power cartridge
Inputs may be ’commoned’ via integral linking terminals
Release Voltage 1 Vdc (Min)
Operating Temperature Range -30 to +80°C

Approvals

UL; CSA; VDE

G3PA-420B-VD DC12-24 SSR – Solid State Relay with Replaceable Power Cartridge.

The design of the heat sink provides a smaller SSR – solid state relay with easily maintained replaceable element cartridges. The relays are applicable with 3-phase loads. The G3PA series of SSR – solid state relays can be DIN rail mounted or mounted using screws.

Features and Benefits of G3PA-420B-VD DC12-24 SSR –Solid state relay.

• Phototriac coupler.
• Zero cross function.
• Indicator.
• Rated output load 20 A at 200 to 240 V ac.
• Rated input voltage 12 to 24 V dc.

SSR – Solid state relay Input Rating at 25°C ambient.

• Operating voltage range 9.6 to 30 V dc.
• Input current impedance 7 mA max.
• Must operate voltage 9.2 V dc max.
• Must release voltage 1 V dc.

SSR – Solid state relay Output.

• Rated load voltage 200 to 400 V ac, 50 / 60 Hz.
• Load voltage range 180 to 440 V ac, 50/ 60 Hz.
• Load current 0.5 to 20 A at 30°C.
• Inrush current 220 A, 60 Hz, 1 cycle.
• VDRM 1000 V.

Additional Features G3PA-420B-VD DC12-24 SSR – Solid State Relay.

• Operate and release time of load power source cycle + 1 ms max (DC models). 1 pf load power source cycle + 1 ms max (AC input).
• Output ON voltage drop 1.8 V (RMS) max.
• Leakage current 20 mA max at 400 V ac.
• Vibration resistance – destruction – 10 to 55 to 10 Hz, 0.375 mm single amplitude mounted to a DIN rail.
• Shock resistance – destruction – 300 m/s² mounted to a DIN rail.
• Operating temperature – ambient - -30°C to 80°C. No icing or condensation.
• Screw terminal.
• Relay weight 290 g.

Replacement Parts for the SSR – Solid State Relay Power Device Cartridges.

• Part number G32A-A420-VD DC12-24, Stock number 5383451 (G3PA-420B-VD DC 12-24)

Replacing the SSR – Solid state relay cartridge.

• Turn OFF the power supply when replacing a cartridge.
• Damaged cartridges can be replaced without disconnecting the wires.
• If the temperature indicator changes from pink to red triac circuits may be malfunctioning, replace.
• Improve heat radiation efficiency before cartridge replacement.

What does Zero Cross Function mean in SSR in Solid State Relays?

Zero cross function will allow the relay to turn ON when the AC load power supply approaches 0 V suppressing any noise generated with a sudden load current increase. Zero cross function is effective across 2 types of noise, noise on power lines and noise emitted into open space.

Approvals

UL; CSA

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Attribute	Value
Maximum Load Current	20 A
Mounting Type	Panel Mount
Maximum Load Voltage	440 V
Maximum Control Voltage	30 V
Switching Type	Zero Cross
Control Voltage Range	9.6 → 30 V dc
Minimum Load Current	0.5 A
Contact Configuration	SPST-NO
Output Device	Triac
Load Voltage Range	150 → 440V ac
Series	G3PA
Dimensions	100 x 37 x 100mm
Height	100mm
Length	100mm
Operating Temperature Range	-30 → +80°C
Depth	37mm
Minimum Operating Temperature	-30°C
Maximum Operating Temperature	+80°C
