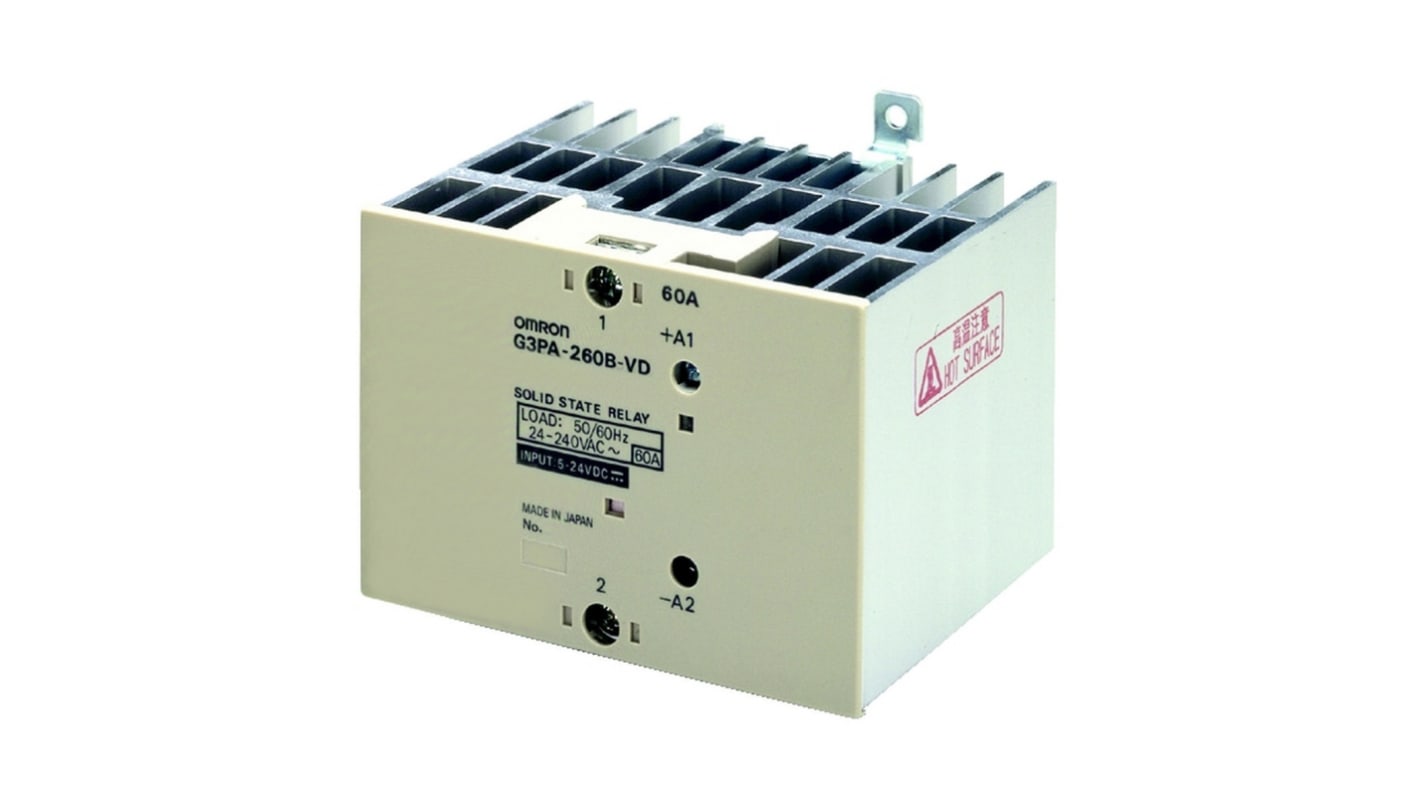

Omron G3PA Series Solid State Relay, 50 A Load, DIN Rail Mount, 528 V Load, 30V Control
- RS Stock No.:
- 214-7214
- Mfr. Part No.:
- G3PA-450B-VD-2 DC12-24
- Brand:
- Omron
Subtotal (1 unit)*
£297.04
(exc. VAT)
£356.45
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 03 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £297.04 |
*price indicative
- RS Stock No.:
- 214-7214
- Mfr. Part No.:
- G3PA-450B-VD-2 DC12-24
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Maximum Load Current | 50A | |
| Product Type | Solid State Relay | |
| Mount Type | DIN Rail | |
| Maximum Load Voltage | 528V | |
| Minimum Load Voltage | 180V | |
| Maximum Control Voltage | 30V | |
| Minimum Control Voltage | 5V | |
| Series | G3PA | |
| Terminal Type | Screw | |
| Contact Configuration | SPST-NO | |
| IP Rating | IP20 | |
| Switching Function | Zero cross function | |
| Minimum Operating Temperature | -30°C | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | CSA C22.2 (No.14,No.950), EN55011, EN60950-1, EN61000-6-2, UL508 | |
| Length | 100mm | |
| Height | 100mm | |
| Width | 110mm | |
| Off State Leakage Current | 20mA | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Maximum Load Current 50A | ||
Product Type Solid State Relay | ||
Mount Type DIN Rail | ||
Maximum Load Voltage 528V | ||
Minimum Load Voltage 180V | ||
Maximum Control Voltage 30V | ||
Minimum Control Voltage 5V | ||
Series G3PA | ||
Terminal Type Screw | ||
Contact Configuration SPST-NO | ||
IP Rating IP20 | ||
Switching Function Zero cross function | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals CSA C22.2 (No.14,No.950), EN55011, EN60950-1, EN61000-6-2, UL508 | ||
Length 100mm | ||
Height 100mm | ||
Width 110mm | ||
Off State Leakage Current 20mA | ||
Omron G3PA Series Solid State Relay, 50A Maximum Load Current, 528V Maximum Load Voltage - G3PA-450B-VD-2 12-24VDC
This solid-state relay provides contactless switching for AC loads in industrial control systems, enabling mains-side switching with a DC control signal. Designed for DIN-rail mounting in electrical panels, it employs a zero-cross switching method to minimise inrush stress on loads while operating across a wide AC voltage range.
Features and Benefits:
• 50A load capacity enabling high-current switching
• 180V-528V load range supporting varied AC supplies
• 12-24V DC control input allowing flexible drive options
• Zero cross switching reducing electrical stress during turn-on
• 100mΩ on-state resistance limiting voltage drop under load
• 20mA off-state leakage lowering unwanted standby current
• 180V-528V load range supporting varied AC supplies
• 12-24V DC control input allowing flexible drive options
• Zero cross switching reducing electrical stress during turn-on
• 100mΩ on-state resistance limiting voltage drop under load
• 20mA off-state leakage lowering unwanted standby current
Applications
• Suitable for heater control in process automation systems
• Ideal for motor soft-start arrangements with reduced switching transients
• Used for switching large AC loads in panel-mounted industrial equipment
• Suitable for integration into temperature control systems in manufacturing
• Can be used for remote load switching in factory electrical distribution
• Ideal for motor soft-start arrangements with reduced switching transients
• Used for switching large AC loads in panel-mounted industrial equipment
• Suitable for integration into temperature control systems in manufacturing
• Can be used for remote load switching in factory electrical distribution
What terminals are provided for electrical connections?
Screw-type terminals are supplied to secure both control and load conductors within the relay.
How is the device mounted within an electrical enclosure?
It is intended for DIN-rail mounting to facilitate Rapid installation on standard mounting rails.
What environmental temperature range can it withstand during operation?
It operates reliably between -30°C and 80°C, accommodating cold starts and elevated panel temperatures.
What protection rating does the enclosure provide against dust and contact?
The unit has an IP20 rating, offering protection against access to hazardous parts but not against dust ingress.
