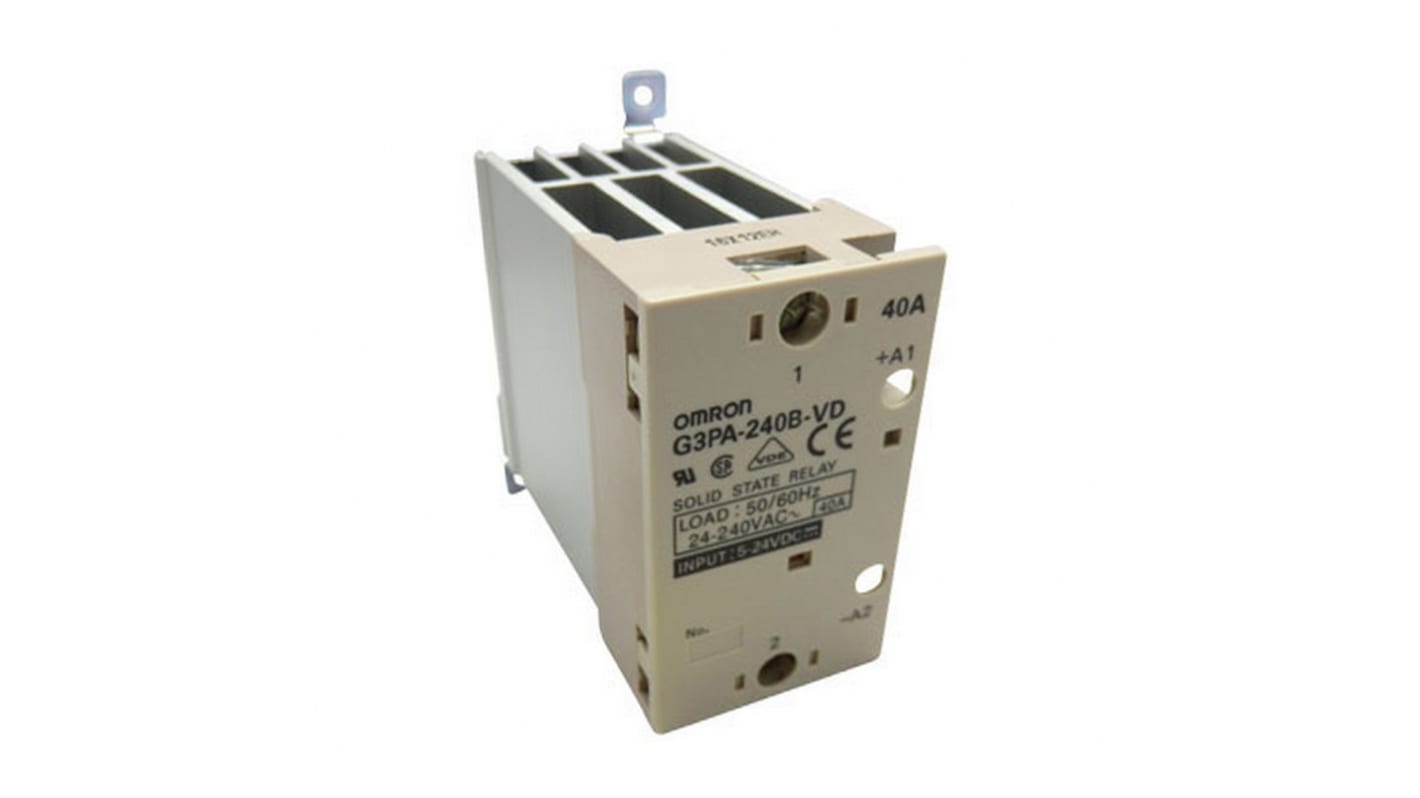

Omron G3PA Series Solid State Relay, 40 A Load, DIN Rail Mount, 264 V Load
- RS Stock No.:
- 214-7212
- Mfr. Part No.:
- G3PA-240B-VD 5-24VDC
- Brand:
- Omron
Subtotal (1 unit)*
£108.80
(exc. VAT)
£130.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
- Plus 18 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £108.80 |
*price indicative
- RS Stock No.:
- 214-7212
- Mfr. Part No.:
- G3PA-240B-VD 5-24VDC
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Omron | |
Maximum Load Current | 40 A | |
Mounting Type | DIN Rail | |
Maximum Load Voltage | 264 V | |
Minimum Load Voltage | 19 V | |
Switching Type | Zero Cross | |
Minimum Load Current | 0.5 A | |
Number of Poles | 1 | |
Terminal Type | Screw | |
Relay Type | Solid State Relay | |
Load Voltage Range | 19 → 264V ac | |
Series | G3PA | |
Maximum Turn On Time | 1/2 cycle + 1 ms | |
Dimensions | 100 x 47 x 100mm | |
Minimum Operating Temperature | -30°C | |
Operating Temperature Range | -30 → +80°C | |
Depth | 100mm | |
Height | 100mm | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Omron | ||
Maximum Load Current 40 A | ||
Mounting Type DIN Rail | ||
Maximum Load Voltage 264 V | ||
Minimum Load Voltage 19 V | ||
Switching Type Zero Cross | ||
Minimum Load Current 0.5 A | ||
Number of Poles 1 | ||
Terminal Type Screw | ||
Relay Type Solid State Relay | ||
Load Voltage Range 19 → 264V ac | ||
Series G3PA | ||
Maximum Turn On Time 1/2 cycle + 1 ms | ||
Dimensions 100 x 47 x 100mm | ||
Minimum Operating Temperature -30°C | ||
Operating Temperature Range -30 → +80°C | ||
Depth 100mm | ||
Height 100mm | ||
Maximum Operating Temperature +80°C | ||
Omron G3PA Series Solid State Relay, 40A Maximum Load Current, 19 to 264V AC Load Voltage Range - G3PA-240B-VD DC5-24
This solid state relay is engineered for the effective control of high voltage applications. With a maximum load current of 40A and the capability to handle voltages up to 264V, it is suitable for various industrial automation tasks. The relay supports a compact DIN rail mounting style with screw terminals, ensuring secure installation. Its dimensions of 100x47x100mm allow for versatility in standard control panels.
Features & Benefits
• Operates within a voltage range of 19 to 264V
• Quick load switching with a turn-on time of 1/2 cycle + 1ms
• Maximum operating temperature of +80°C
• Robust dielectric strength of 4000VAC for enhanced safety
• Compact design optimises space in applications
• Replaceable cartridges extend operational life
• Quick load switching with a turn-on time of 1/2 cycle + 1ms
• Maximum operating temperature of +80°C
• Robust dielectric strength of 4000VAC for enhanced safety
• Compact design optimises space in applications
• Replaceable cartridges extend operational life
Applications
• Suitable for automation systems that require low response times
• Ideal for managing power distribution in electrical panels
• Effective in environments with fluctuating temperatures
• Utilised in machinery to ensure smooth operation
• Ideal for managing power distribution in electrical panels
• Effective in environments with fluctuating temperatures
• Utilised in machinery to ensure smooth operation
Can it handle three-phase loads?
Yes, it is designed for three-phase loads.
Will it ensure safe operation under high temperatures?
It operates safely at temperatures up to +80°C.
Is it easy to replace the power element?
Yes, it has replaceable power element cartridges.
Can I mount this device vertically?
Yes, vertical mounting is feasible for optimal operation.
