MPN

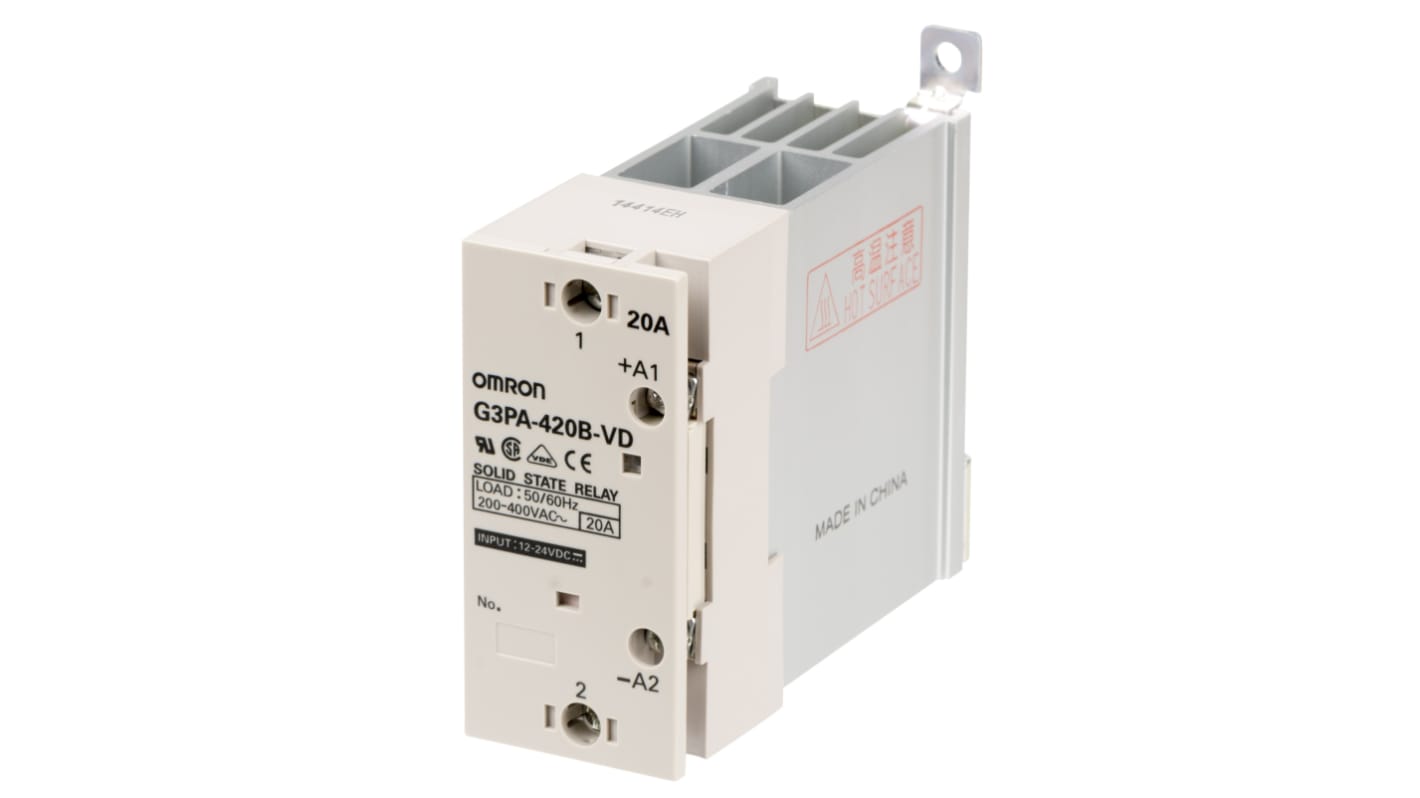

Omron G3PA Series Solid State Relay, 20 A Load, DIN Rail Mount, 528 V Load, 200 V ac Control

RS Stock No.:: 214-7213
Mfr. Part No.:: G3PA-420B-VD-2 12-24VDC
Brand:: Omron

Omron G3PA Series Solid State Relay, 20 A Load, DIN Rail Mount, 528 V Load, 200 V ac Control

Subtotal (1 unit)*

£173.00

(exc. VAT)

£207.60

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

5 unit(s) ready to ship
Plus 5 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£173.00

*price indicative

RS Stock No.:: 214-7213
Mfr. Part No.:: G3PA-420B-VD-2 12-24VDC
Brand:: Omron

Omron G3PA Series Solid State Relay, 20A Maximum Load Current, 180 to 528V AC Load Voltage Range - G3PA-420B-VD-2 DC12-24

This solid state relay is designed for industrial applications, providing reliable control for high voltage and current demands. The device measures 100mm in depth, 100mm in height, and 37mm in length, making it suitable for installation on DIN rails. The G3PA relay is versatile, supporting a load voltage range from 180V to 528V AC while ensuring a maximum load current of 20A.

Features & Benefits

• Designed for three-phase loads enhances versatility in applications
• Zero cross switching improves lifespan and reduces noise
• Compact design optimises space with integrated heat sinks
• Screw terminal type allows for secure and easy connections
• Compliant with safety standards for reinforced insulation
• Wide operating temperature range ensures performance in harsh conditions

Applications

• Used for automatic control in electrical panels
• Utilised in machine automation for precise load switching
• Applied in HVAC systems for reliable temperature management
• Employs energy efficiency in motor control

What is the significance of the zero cross function in this device?

The zero cross function helps to minimise electrical noise during switching, extending the life of both the relay and the load connected. This feature reduces the stress on the electrical components, making it ideal for sensitive applications.

How does the solid state relay handle high temperatures?

The product is rated for operation at up to 80°C, ensuring reliable performance in challenging environments. Proper mounting and thermal management can further enhance its operational efficiency even at elevated temperatures.

Can this relay be used in high voltage applications?

Yes, it can handle a maximum load voltage of 528V AC, making it suitable for various high voltage applications, ensuring effective control with safety precautions in place.

What kind of maintenance is required for this relay?

Regular visual inspections for signs of wear or damage are advisable, along with ensuring secure terminal connections. This will help maintain its operational integrity over time.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Omron
	Maximum Load Current	20 A
	Mounting Type	DIN Rail
	Maximum Load Voltage	528 V
	Minimum Load Voltage	180 V
	Minimum Control Voltage	480 V ac
	Maximum Control Voltage	200 V ac
	Switching Type	Zero Cross
	Control Voltage Range	200 → 480 V ac
	Minimum Load Current	16 A
	Number of Poles	1
	Terminal Type	Screw
	Series	G3PA
	Load Voltage Range	180 → 528V ac
	Minimum Operating Temperature	-30°C
	Length	37mm
	Operating Temperature Range	-30 → +80°C
	Maximum Operating Temperature	+80°C
	Depth	100mm
	Height	100mm

	Select all
	Brand Omron
	Maximum Load Current 20 A
	Mounting Type DIN Rail
	Maximum Load Voltage 528 V
	Minimum Load Voltage 180 V
	Minimum Control Voltage 480 V ac
	Maximum Control Voltage 200 V ac
	Switching Type Zero Cross
	Control Voltage Range 200 → 480 V ac
	Minimum Load Current 16 A
	Number of Poles 1
	Terminal Type Screw
	Series G3PA
	Load Voltage Range 180 → 528V ac
	Minimum Operating Temperature -30°C
	Length 37mm
	Operating Temperature Range -30 → +80°C
	Maximum Operating Temperature +80°C
	Depth 100mm
	Height 100mm
