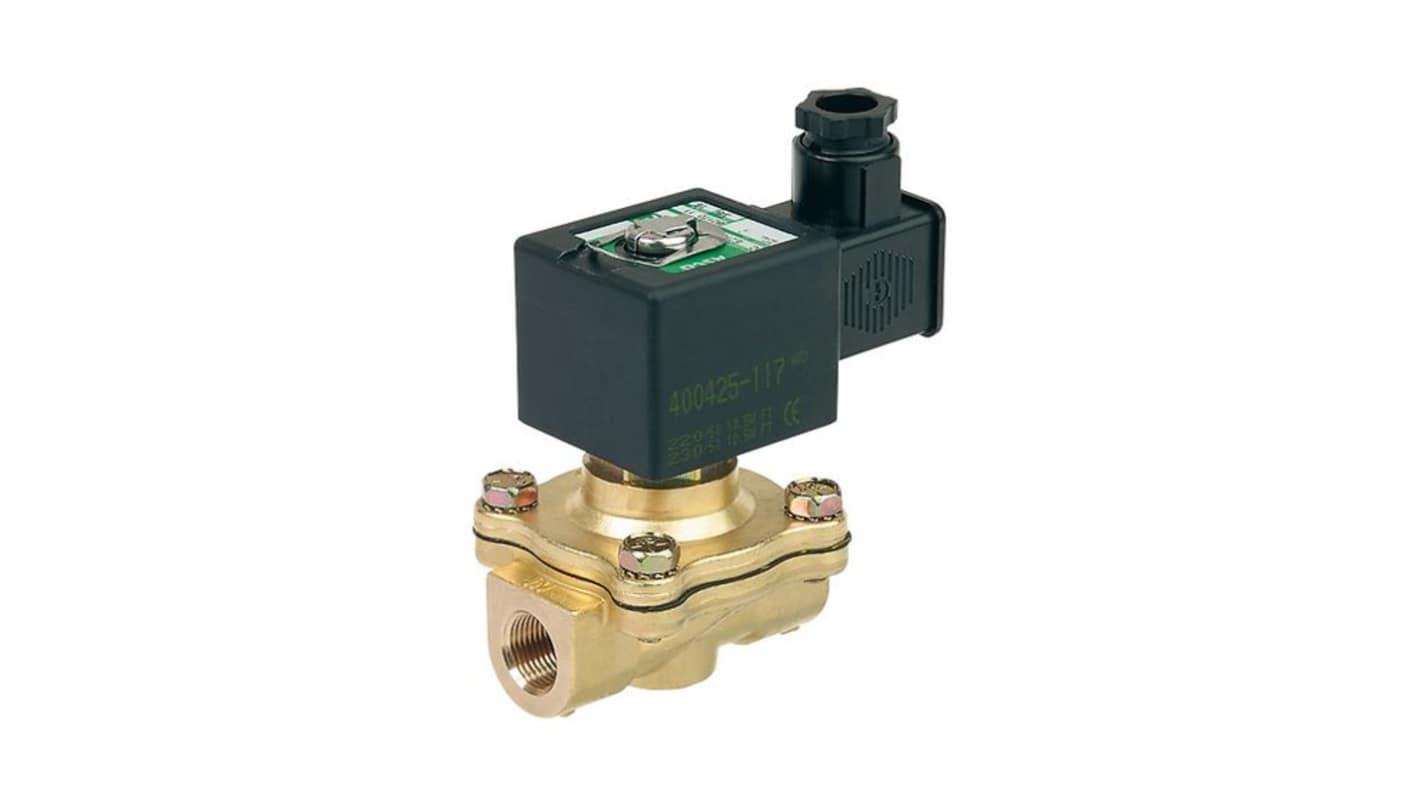

EMERSON ? ASCO Solenoid Valve SCXE210C434.230/50.17777, 2 port(s) , NO, 230 V, 1.5in
- RS Stock No.:
- 432-636
- Mfr. Part No.:
- SCXE210C434.230/50.17777
- Brand:
- EMERSON ? ASCO
Subtotal (1 unit)*
£267.73
(exc. VAT)
£321.28
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 08 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £267.73 |
*price indicative
- RS Stock No.:
- 432-636
- Mfr. Part No.:
- SCXE210C434.230/50.17777
- Brand:
- EMERSON ? ASCO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | EMERSON ? ASCO | |
Supply Voltage | 230 V | |
Number of Ports | 2 | |
Connection Size | 1.5in | |
Connection | 1-1/2 in G | |
Operation | Pilot | |
Default Valve Position | NO | |
Suitable Applications | Air, Inert Gas, Oil, Water | |
Type | Solenoid | |
Orifice Diameter | 16mm | |
Series | 210 | |
Body Material | Brass | |
Maximum Working Pressure | 16 bar | |
Operating Temperature Range | -20 → +85 °C | |
Servo Assist | No | |
Thread Standard or Connection Type | G | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +85°C | |
Flow Factor Kv | 57L/min | |
Select all | ||
---|---|---|
Brand EMERSON ? ASCO | ||
Supply Voltage 230 V | ||
Number of Ports 2 | ||
Connection Size 1.5in | ||
Connection 1-1/2 in G | ||
Operation Pilot | ||
Default Valve Position NO | ||
Suitable Applications Air, Inert Gas, Oil, Water | ||
Type Solenoid | ||
Orifice Diameter 16mm | ||
Series 210 | ||
Body Material Brass | ||
Maximum Working Pressure 16 bar | ||
Operating Temperature Range -20 → +85 °C | ||
Servo Assist No | ||
Thread Standard or Connection Type G | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +85°C | ||
Flow Factor Kv 57L/min | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
The Asco Solenoid Valve is engineered with precision for pilot operation through a hung diaphragm, catering to a variety of fluid control applications. Designed for robustness and reliability, this model operates effortlessly across a wide range of pressures and is compatible with air, water, oil, and inert gases. The valves versatility is apparent in its compatibility with multiple sealing materials, ensuring optimal performance in diverse environments. With an insulation class of F or H, it stands up to demanding electrical requirements while maintaining safety and adherence to EU directives. The compact and ergonomic design allows for installation flexibility, making it suitable for various systems, whether in commercial or industrial settings.
Two-way shut-off valve design enhances operational efficiency
No minimum operating pressure required for seamless functionality
Compliant with Pressure Equipment Directive ensuring reliability
Equipped with a durable epoxy moulded enclosure for protection against environmental factors
Multiple optional enclosures available for specialised applications
Mounting brackets included for easy installation
Various diaphragm and seal materials available to suit different fluid applications
Valves meet stringent electrical safety standards for added assurance
No minimum operating pressure required for seamless functionality
Compliant with Pressure Equipment Directive ensuring reliability
Equipped with a durable epoxy moulded enclosure for protection against environmental factors
Multiple optional enclosures available for specialised applications
Mounting brackets included for easy installation
Various diaphragm and seal materials available to suit different fluid applications
Valves meet stringent electrical safety standards for added assurance
