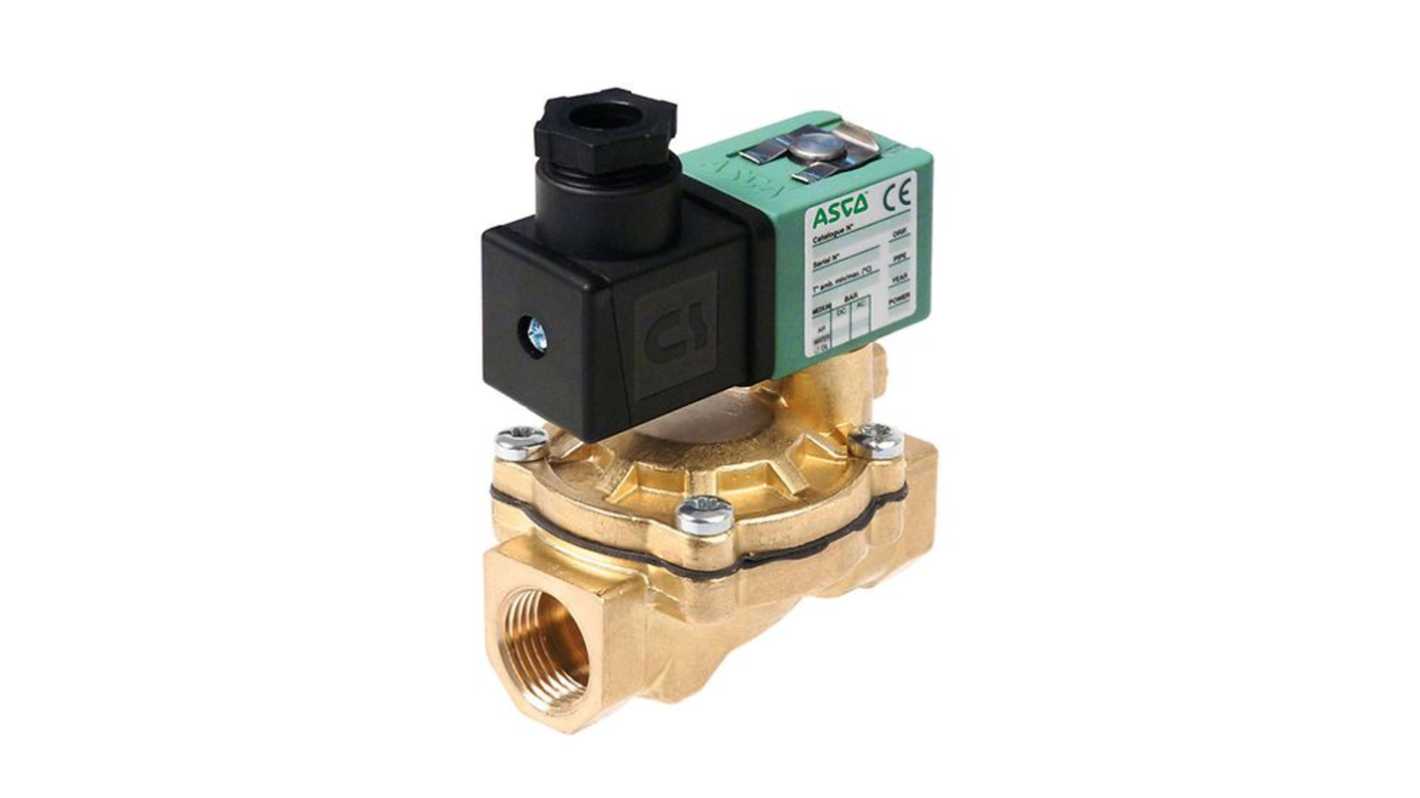

EMERSON – ASCO Solenoid Valve SCG238E017.230/50, 2 Port, NC G1-1/2 in, 230V, G1-1/2
- RS Stock No.:
- 432-428
- Mfr. Part No.:
- SCG238E017.230/50
- Brand:
- EMERSON ? ASCO
Subtotal (1 unit)*
£284.96
(exc. VAT)
£341.95
(inc. VAT)
FREE delivery for orders over £60.00
- Ready to ship from 03 July 2026
Units | Per unit |
|---|---|
| 1 + | £284.96 |
*price indicative
- RS Stock No.:
- 432-428
- Mfr. Part No.:
- SCG238E017.230/50
- Brand:
- EMERSON ? ASCO
Select all | Attribute | Value |
|---|---|---|
| Brand | EMERSON ? ASCO | |
| Product Type | Solenoid Valve | |
| Supply Voltage | 230V | |
| Number of Ports | 2 | |
| Inlet Port Size | G1-1/2 in | |
| Default Valve Position | NC | |
| Outlet Port Size | G1-1/2 | |
| Outlet Connection Type | Tapered | |
| Inlet Connection Type | Tapered | |
| Orifice Diameter | 45mm | |
| Application | Air, Water, Inert Gas | |
| Body Material | Brass | |
| Inlet Port Gender | Female | |
| Series | 238 | |
| Maximum Operating Pressure | 10 bar | |
| Outlet Port Gender | Female | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | EN 175301-803, UL/CSA, ISO 4400, DIN 43650, CEI 335, EN 60529 | |
| Servo Assist | No | |
| Hazardous Area Certification | ATEX 2014,34,UE, catégories 2-3, Zone | |
| Maximum Closing Time | 2000ms | |
| Maximum Opening Time | 1500ms | |
| Flow Factor Kv | 450L/min | |
| Select all | ||
|---|---|---|
Brand EMERSON ? ASCO | ||
Product Type Solenoid Valve | ||
Supply Voltage 230V | ||
Number of Ports 2 | ||
Inlet Port Size G1-1/2 in | ||
Default Valve Position NC | ||
Outlet Port Size G1-1/2 | ||
Outlet Connection Type Tapered | ||
Inlet Connection Type Tapered | ||
Orifice Diameter 45mm | ||
Application Air, Water, Inert Gas | ||
Body Material Brass | ||
Inlet Port Gender Female | ||
Series 238 | ||
Maximum Operating Pressure 10 bar | ||
Outlet Port Gender Female | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals EN 175301-803, UL/CSA, ISO 4400, DIN 43650, CEI 335, EN 60529 | ||
Servo Assist No | ||
Hazardous Area Certification ATEX 2014,34,UE, catégories 2-3, Zone | ||
Maximum Closing Time 2000ms | ||
Maximum Opening Time 1500ms | ||
Flow Factor Kv 450L/min | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
