Schmersal AZM 170 Series Solenoid Interlock Switch, Power to Lock, 24V ac/dc, Actuator Included
- RS Stock No.:
- 146-5799
- Mfr. Part No.:
- AZM170-11ZRIA-B1 24VAC/DC
- Brand:
- Schmersal
Subtotal (1 unit)*
£290.06
(exc. VAT)
£348.07
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £290.06 |
*price indicative
- RS Stock No.:
- 146-5799
- Mfr. Part No.:
- AZM170-11ZRIA-B1 24VAC/DC
- Brand:
- Schmersal
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schmersal | |
| Power to Lock / Unlock | Power to Lock | |
| Supply Voltage | 24V ac/dc | |
| Series | AZM 170 | |
| Actuator Included | Yes | |
| Actuator Type | Coded | |
| Safety Contacts | 1 | |
| Conduit Entry | M20 | |
| Auxiliary Contacts | 1NC | |
| Housing Material | Plastic | |
| IP Rating | IP67 | |
| Maximum AC Voltage | 24V | |
| Standards Met | BG, BG-GS-ET-19, CE, cULus, DIN EN 60269-1, EN 60947-5-1, EN ISO 13849-1, IEC/EN 60529 | |
| Depth | 30mm | |
| Pole Configuration | DP | |
| Width | 84mm | |
| Power Consumption | 10W | |
| Length | 90mm | |
| Maximum DC Voltage | 24V | |
Select all | ||
|---|---|---|
Brand Schmersal | ||
Power to Lock / Unlock Power to Lock | ||
Supply Voltage 24V ac/dc | ||
Series AZM 170 | ||
Actuator Included Yes | ||
Actuator Type Coded | ||
Safety Contacts 1 | ||
Conduit Entry M20 | ||
Auxiliary Contacts 1NC | ||
Housing Material Plastic | ||
IP Rating IP67 | ||
Maximum AC Voltage 24V | ||
Standards Met BG, BG-GS-ET-19, CE, cULus, DIN EN 60269-1, EN 60947-5-1, EN ISO 13849-1, IEC/EN 60529 | ||
Depth 30mm | ||
Pole Configuration DP | ||
Width 84mm | ||
Power Consumption 10W | ||
Length 90mm | ||
Maximum DC Voltage 24V | ||
- COO (Country of Origin):
- DE

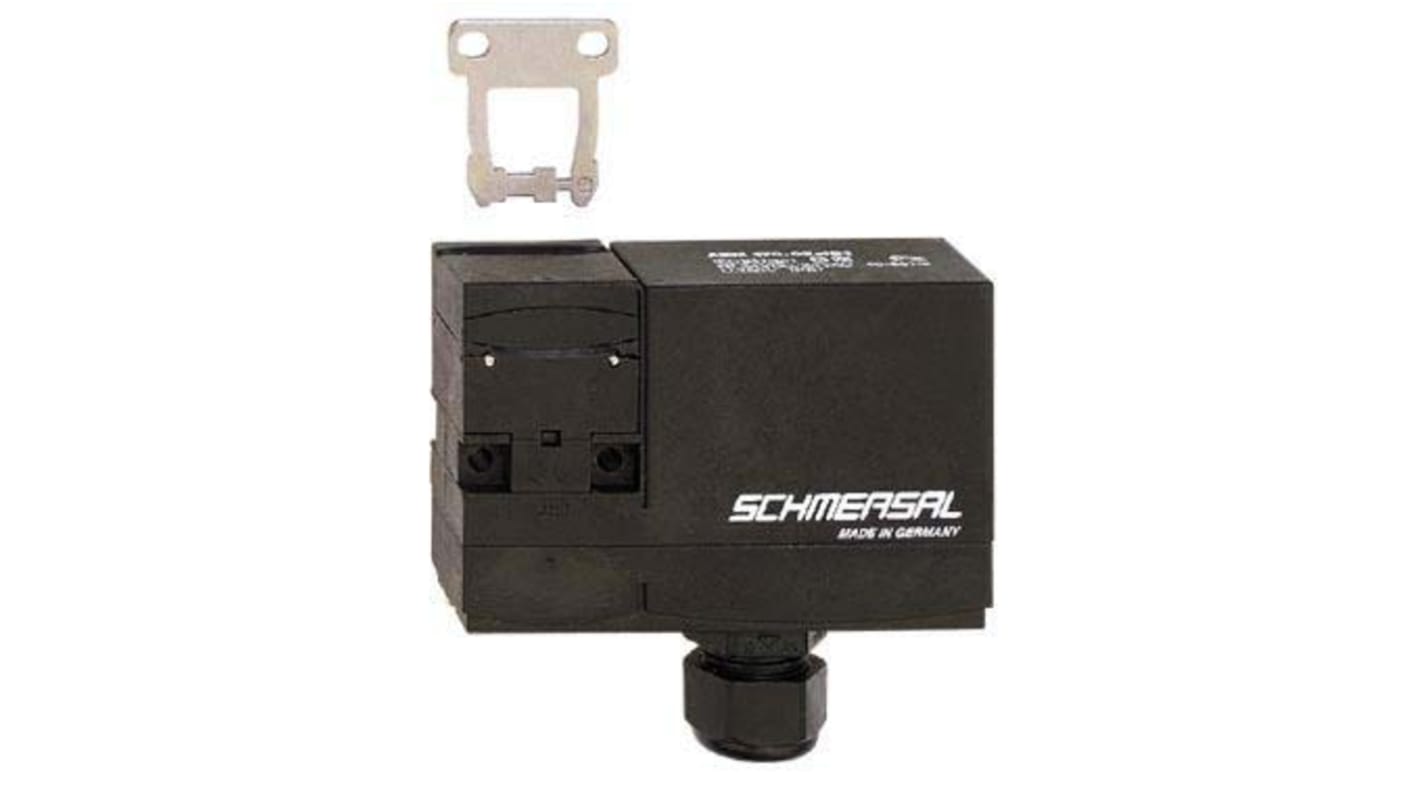

Schmersal Solenoid Interlock Switch, 10W Power Rating, Power-to-Lock - AZM 170 Series - AZM170-11ZRIA-B1 24VAC/DC
Quickly lock your protective gates with this solenoid interlock switch from Schmersal. It uses individually coded sensors that only work with their paired devices, protecting your machines from tampering for a high level of security. The unit's silver contacts are corrosion-resistant and highly conductive for a reliable electrical connection. As it's able to complete up to 1000 switching cycles per hour, this switch is an efficient choice for use in busy work environments. The lock's holding force of 1000N ensures your gates stay firmly closed for maximum safety.
Features & Benefits
• Supplied with an actuator for ease of assembly
• IP67 rating means it's protected against dust and submersion in 1m of water for up to 30 minutes
• Compact dimensions of 30 (length) x 90 (width) x 84mm (height) for installation in tight spaces
• Meets EN 60947 safety standards for low-voltage switchgear and controlgear
• IP67 rating means it's protected against dust and submersion in 1m of water for up to 30 minutes
• Compact dimensions of 30 (length) x 90 (width) x 84mm (height) for installation in tight spaces
• Meets EN 60947 safety standards for low-voltage switchgear and controlgear
Applications
• Pharmaceutical processing
• Stamping machines
• Robotics systems
• Manufacturing industry
• Stamping machines
• Robotics systems
• Manufacturing industry
What's the lifespan of this solenoid interlock switch?
This switch has a long mechanical lifespan of at least one million cycles, so it won't need frequent replacement.
