Weller Compressed Air Desoldering Station 80W, 230V

RS Stock No.:: 431-0323
Mfr. Part No.:: T0053256699N
Brand:: Weller

Technical Reference

Weller Compressed Air Desoldering Station 80W, 230V

View this category

3 In stock - FREE next working day delivery available

999999996 In stock - FREE next working day delivery available

6 available from Europe for delivery within 1 working day(s).

Price Each

£875.86

(exc. VAT)

£1,051.03

(inc. VAT)

Units	Per unit
1 +	£875.86

RS Stock No.:: 431-0323
Mfr. Part No.:: T0053256699N
Brand:: Weller

COO (Country of Origin):: MX

Note

Please be aware solder wire is not included with this Soldering Station. Why not try RS brand Solder wire? 756-8884

Desoldering Station WDD-81V

Introducing the Weller WDD 81 Desoldering Station. A microprocessor-controlled single output rework station for professional desoldering applications. Supplied with desoldering iron, replaceable nozzles and safety rest, this complete set is ideal for desoldering PCB boards with through-hole components. The ergonomically designed DSX 80 desoldering nozzle offers maximum comfort and firm grip even in extended use. The vacuum is activated by a switch incorporated in the handle. The DSX 80 is fully compatible with a wide range range of nozzles and CSFs.

The Weller WDD 81V is available with two plug options to choose from:

• F-Type (Shuko) plug - 431-0323

• G-Type (UK) plug - 343-8600

Features and Benefits:

PUDD 81 Control Unit:

• Power Consumption: 95 W

• 1 channel

• Digital controlled electronic for soldering or desoldering tools up to 80 W

• Compressed air converter provides vacuum for the desoldering iron

• Temperature control via buttons

• 3-position digital display

• Antistatic housing

• Equipotential bonding (normal state hard grounded)

• Automatic tool recognition

• Inlet pressure 500 - 600 KPA (58 - 87 psi) oil-free, dry compressed air or inert gas

• Dimensions: 166 x 115 x 101 mm (W x L x H)

• Additional functions can be programmed using optional Calibration Box WCB-1 including: temp. lock, set-back time, temp. offset and °C/F

DSX 80 Desoldering Iron:

• Threadless nozzle fixture system

• External solder collector

• Same working position as usual soldering irons

• 80W, 24V

Typical Applications:

Soldering / Desoldering Irons are used to work and rework solder in all manner of applications, particularly in repairing or building PCB circuit boards with SMD and through-hole components. They are commonly used in electronic prototyping and production, and any application where a circuit board component might have to be removed or adjusted. Soldering / Desoldering Irons are often used by:

• Engineers

• Electricians

• Metalworkers

• Jewellers

• Home inventors

FAQs:

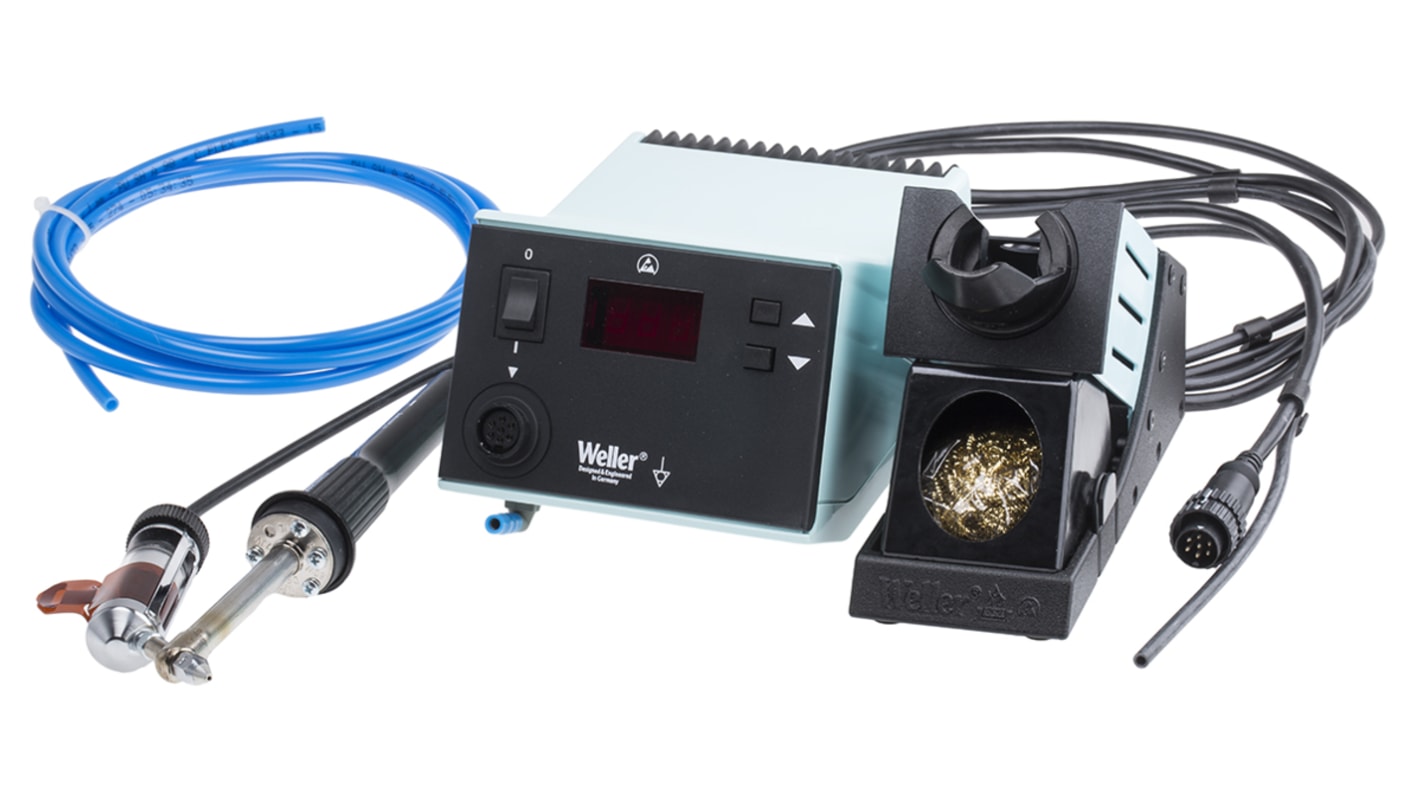

What is included in the set?

• PUDD 81 Control Unit 230 V

• DSX 80 Desoldering iron 80 W

• WDH 30 Safety rest

• 2 Nozzles (DX 112 & DX 113)

• Cleaning set

Do you stock replacement parts for this desoldering iron?

Yes, the full range covers:

• Iron Filter Cartridge - 533-0154

• Desoldering Iron Guards – 517-700

• Vacuum Glass Tube with film – 517-671

• Desoldering Iron Filter – 517-665

Do you stock compatible nozzles?

Yes, the DSX 80 Desoldering Iron is compatible with DX & XDS series threadless fixture system nozzels from Weller e.g:

XDS 1 - 764-2904

XDS 5 - 764-2913

DX 113 - 405-3525

DX 117 - 914-0104

De-Soldering - Weller

Attribute	Value
Model Number	WDD 81V
Tasks Supported	Desoldering
Plug Type	Type F - Schuko plug
Wattage	80W
Input Voltage	230V
Soldering Tip Temperature	450°C
Number of Outputs	1
Display Type	LED
ESD Safe	Yes
