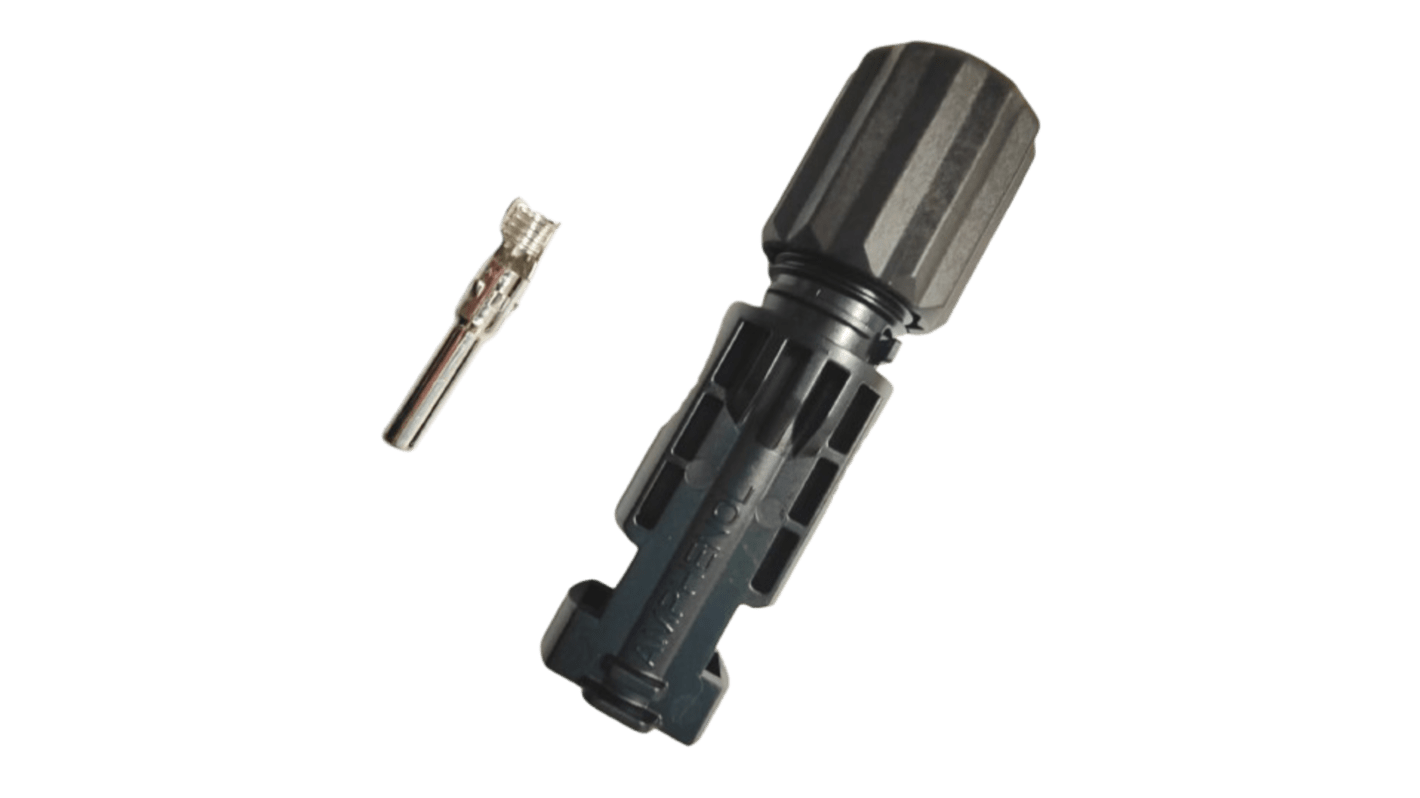

Amphenol Industrial H4 PLUS Series, Male Cable Solar Connector, Cable CSA, 4mm², 6 mm², 1.5kV, 45A
- RS Stock No.:
- 446-283
- Mfr. Part No.:
- HH4SMD4TMS
- Brand:
- Amphenol Industrial
Bulk discount available
Subtotal (1 unit)*
£2.06
(exc. VAT)
£2.47
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1,600 unit(s) shipping from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £2.06 |
| 10 - 24 | £1.89 |
| 25 + | £1.71 |
*price indicative
- RS Stock No.:
- 446-283
- Mfr. Part No.:
- HH4SMD4TMS
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Product Type | Solar Connector | |
| Termination Type | Crimp | |
| Sub Type | Connecting Cable | |
| Current | 45A | |
| Cable CSA | 4, 6mm² | |
| Mount Type | Cable | |
| Connector Gender | Male | |
| Voltage | 1.5kV | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Male | |
| Standards/Approvals | TUV IEC62852, NEC 2008/2011 Standard, UL6703 | |
| Series | H4 PLUS | |
| Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Product Type Solar Connector | ||
Termination Type Crimp | ||
Sub Type Connecting Cable | ||
Current 45A | ||
Cable CSA 4, 6mm² | ||
Mount Type Cable | ||
Connector Gender Male | ||
Voltage 1.5kV | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Male | ||
Standards/Approvals TUV IEC62852, NEC 2008/2011 Standard, UL6703 | ||
Series H4 PLUS | ||
The Amphenol Industrial H4 PV Connector has a higher ampacity than the industry standard connector, it provides exceptional performance. The H4 PV Connector meets the NEC 2008/2011 standard without the need for an additional locking clip, simplifying installation.
Male end
UL6703 and TUV IEC62852 dual approval
Long term UV resistance
Low contact resistance means low power loss
Ready for field assembly
