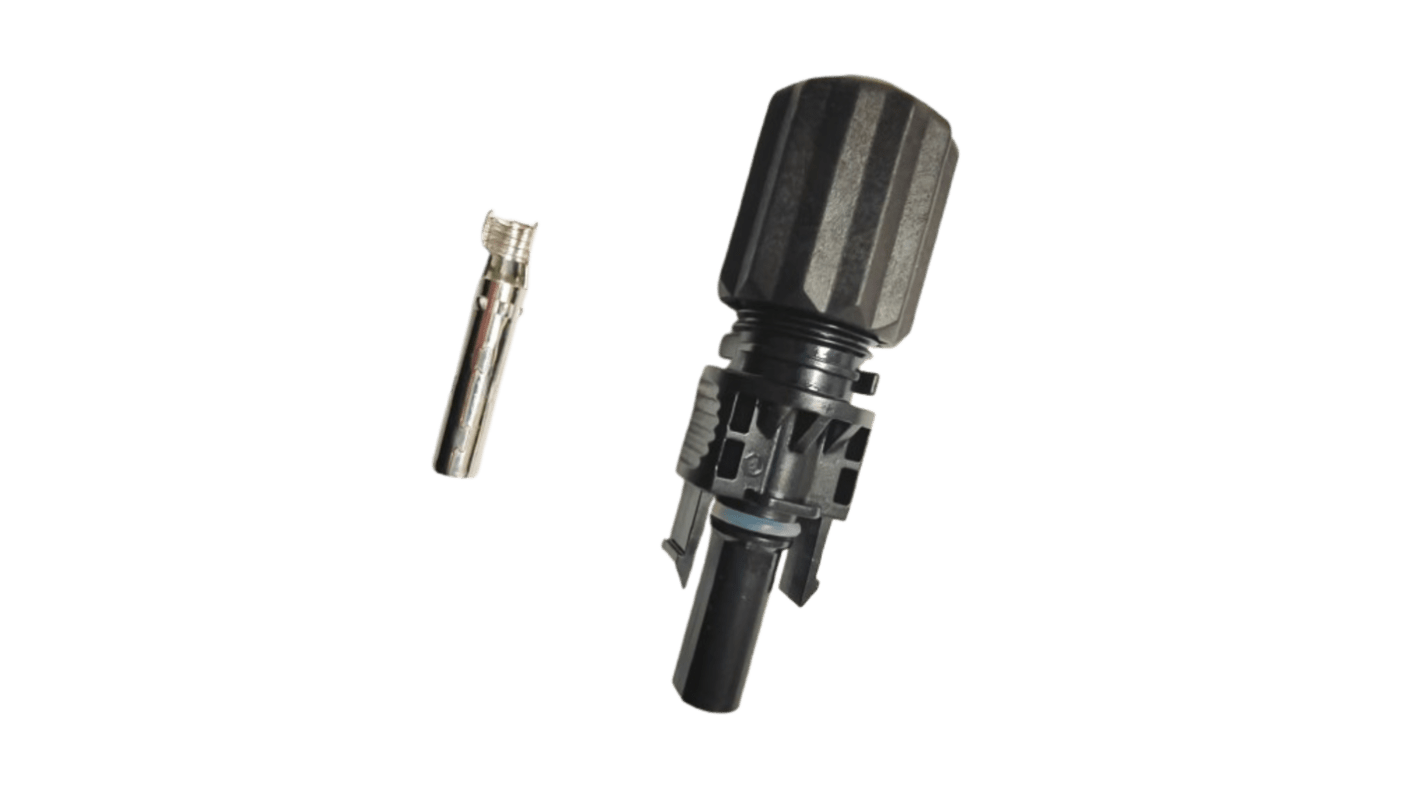

Amphenol Industrial H4 PLUS Series, Female Cable Solar Connector, Cable CSA, 4mm², 6 mm², 1.5kV, 45A
- RS Stock No.:
- 446-280
- Mfr. Part No.:
- HH4SFD4TMS
- Brand:
- Amphenol Industrial
Bulk discount available
Subtotal (1 unit)*
£2.49
(exc. VAT)
£2.99
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2,329 unit(s) ready to ship
- Plus 68 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £2.49 |
| 10 - 24 | £2.28 |
| 25 + | £2.07 |
*price indicative
- RS Stock No.:
- 446-280
- Mfr. Part No.:
- HH4SFD4TMS
- Brand:
- Amphenol Industrial
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Industrial | |
| Sub Type | Connecting Cable | |
| Termination Type | Crimp | |
| Product Type | Solar Connector | |
| Cable CSA | 4, 6mm² | |
| Current | 45A | |
| Mount Type | Cable | |
| Connector Gender | Female | |
| Voltage | 1.5kV | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Contact Gender | Female | |
| Standards/Approvals | UL6703, NEC 2008/2011 Standard, TUV IEC62852 | |
| Series | H4 PLUS | |
| Select all | ||
|---|---|---|
Brand Amphenol Industrial | ||
Sub Type Connecting Cable | ||
Termination Type Crimp | ||
Product Type Solar Connector | ||
Cable CSA 4, 6mm² | ||
Current 45A | ||
Mount Type Cable | ||
Connector Gender Female | ||
Voltage 1.5kV | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Contact Gender Female | ||
Standards/Approvals UL6703, NEC 2008/2011 Standard, TUV IEC62852 | ||
Series H4 PLUS | ||
- COO (Country of Origin):
- CN
The Amphenol Industrial H4 PV Connector has a higher ampacity than the industry standard connector, it provides exceptional performance. The H4 PV Connector meets the NEC 2008/2011 standard without the need for an additional locking clip, simplifying installation.
Female end
UL6703 and TUV IEC62852 dual approval
Long term UV resistance
Low contact resistance means low power loss
Ready for field assembly
