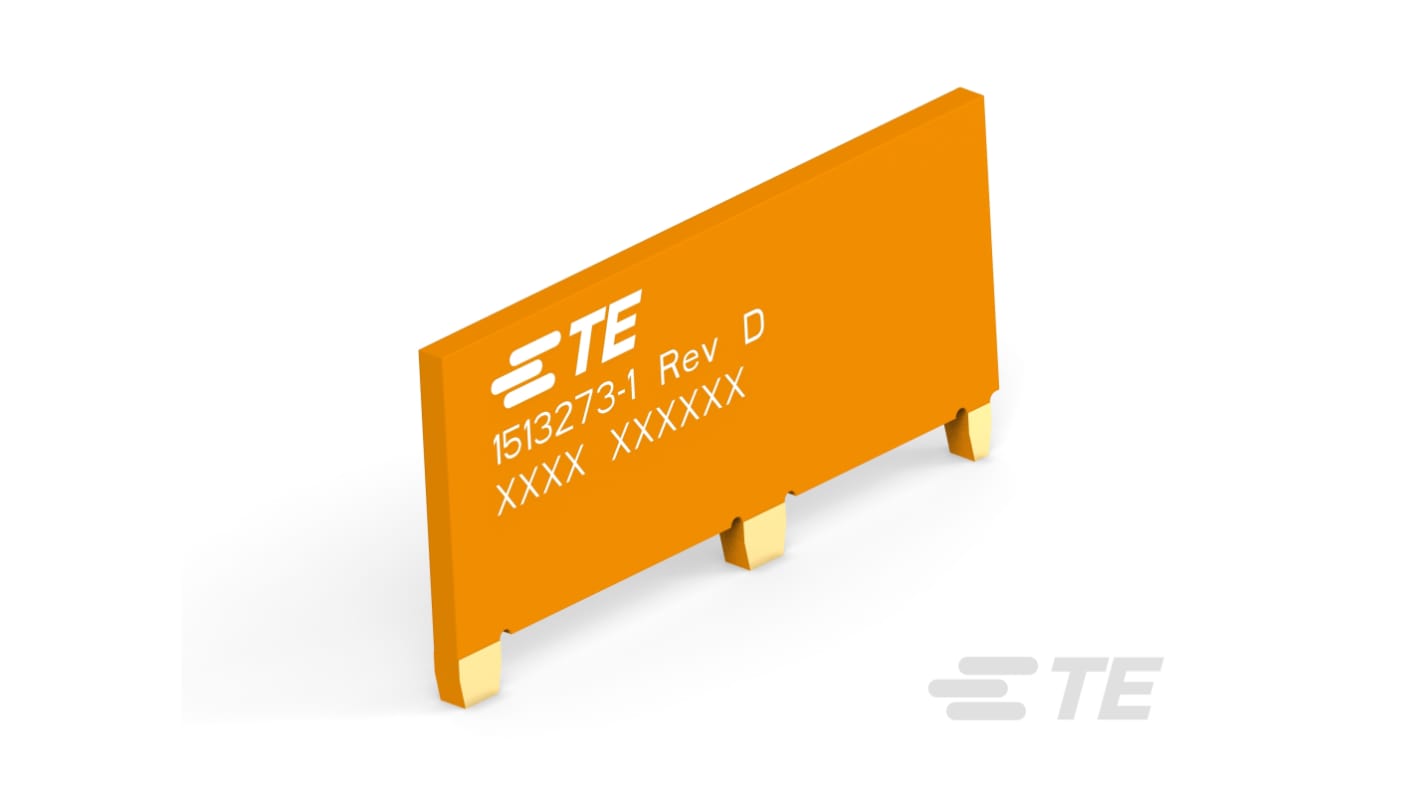

TE Connectivity 1513273-1 Internal PCB SMT Antenna, ISM Band
- RS Stock No.:
- 467-735
- Mfr. Part No.:
- 1513273-1
- Brand:
- TE Connectivity
Subtotal (1 bag of 100 units)*
£172.30
(exc. VAT)
£206.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 + | £1.723 | £172.30 |
*price indicative
- RS Stock No.:
- 467-735
- Mfr. Part No.:
- 1513273-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Internal/External | Internal | |
RF Protocols | ISM Band | |
Frequency Range | 824 → 960, 1710 → 1990 | |
Physical Form | PCB | |
Gain | 2dB | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Internal/External Internal | ||
RF Protocols ISM Band | ||
Frequency Range 824 → 960, 1710 → 1990 | ||
Physical Form PCB | ||
Gain 2dB | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Antenna is designed for multi-band wireless communication applications, ensuring seamless connectivity in both cellular and ISM bands. Tailored for internal or embedded mounting, this omnidirectional antenna offers a compact solution for diverse electronic devices. With its through-hole/tab mount configuration, installation remains straightforward, making it ideal for modern engineering projects. The antenna operates passively, providing an efficient performance with a peak gain of less than 3 dBi. Its lightweight design is complemented by a low-profile structure, ensuring minimal impact on the host device's aesthetics. This product caters to both the Americas and EU markets, upholding stringent compliance with essential regulations, thus enhancing its reliability and safety in various applications.
Supports multi-band operation for versatile applications
Optimised for cellular and ISM wireless technology
Lightweight construction enhances overall device efficiency
Designed for easy installation with a through-hole/tab mount
Omnidirectional pattern ensures consistent signal reception
Manufactured to comply with EU RoHS and REACH regulations
Compact dimensions fit seamlessly into a variety of device designs
Maintains high performance with a maximum VSWR of less than 3:1
Optimised for cellular and ISM wireless technology
Lightweight construction enhances overall device efficiency
Designed for easy installation with a through-hole/tab mount
Omnidirectional pattern ensures consistent signal reception
Manufactured to comply with EU RoHS and REACH regulations
Compact dimensions fit seamlessly into a variety of device designs
Maintains high performance with a maximum VSWR of less than 3:1
