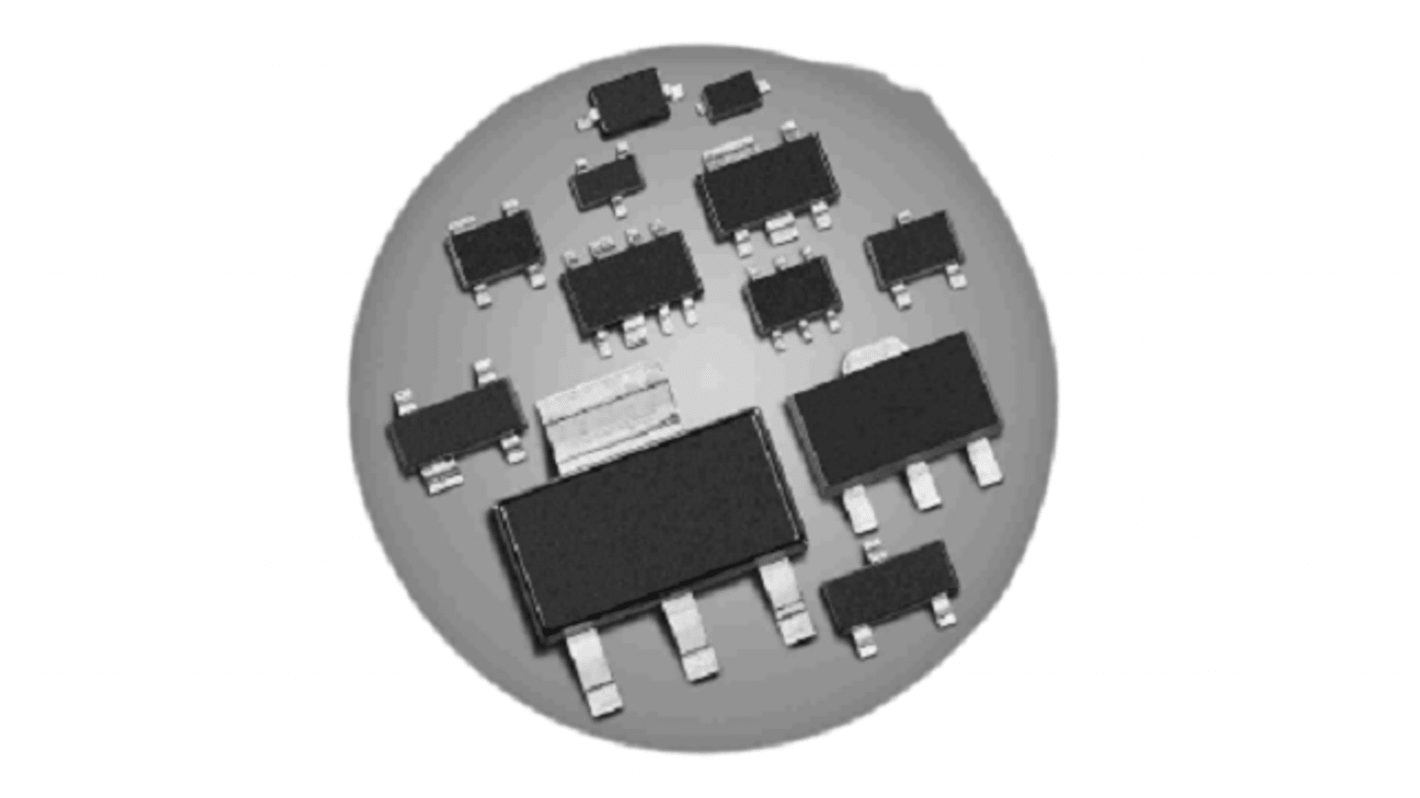

Infineon 40 V 120 mA Rectifier & Schottky Diode Schottky 3-Pin SOT-23
- RS Stock No.:
- 249-6969
- Mfr. Part No.:
- BAS4004E6327HTSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 reel of 3000 units)*
£111.00
(exc. VAT)
£132.00
(inc. VAT)
Add 3000 units to get free delivery
Temporarily out of stock
- 24,000 unit(s) shipping from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 3000 | £0.037 | £111.00 |
| 6000 - 12000 | £0.035 | £105.00 |
| 15000 + | £0.033 | £99.00 |
*price indicative
- RS Stock No.:
- 249-6969
- Mfr. Part No.:
- BAS4004E6327HTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Mount Type | Surface | |
| Product Type | Rectifier & Schottky Diode | |
| Package Type | SOT-23 | |
| Maximum Continuous Forward Current If | 120mA | |
| Peak Reverse Repetitive Voltage Vrrm | 40V | |
| Diode Configuration | Series | |
| Series | BAS40 | |
| Rectifier Type | Schottky | |
| Pin Count | 3 | |
| Peak Reverse Current Ir | 1μA | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200mA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Forward Voltage Vf | 1000mV | |
| Maximum Operating Temperature | 150°C | |
| Length | 2.9mm | |
| Width | 1 mm | |
| Height | 2.4mm | |
| Standards/Approvals | RoHS | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Mount Type Surface | ||
Product Type Rectifier & Schottky Diode | ||
Package Type SOT-23 | ||
Maximum Continuous Forward Current If 120mA | ||
Peak Reverse Repetitive Voltage Vrrm 40V | ||
Diode Configuration Series | ||
Series BAS40 | ||
Rectifier Type Schottky | ||
Pin Count 3 | ||
Peak Reverse Current Ir 1μA | ||
Peak Non-Repetitive Forward Surge Current Ifsm 200mA | ||
Minimum Operating Temperature -55°C | ||
Maximum Forward Voltage Vf 1000mV | ||
Maximum Operating Temperature 150°C | ||
Length 2.9mm | ||
Width 1 mm | ||
Height 2.4mm | ||
Standards/Approvals RoHS | ||
Automotive Standard AEC-Q101 | ||
The Infineon general-purpose diode is high-speed switching high-level detecting and mixing. It gives circuit protection.
Voltage clamping
Pb-free
250 mW power dissipation
