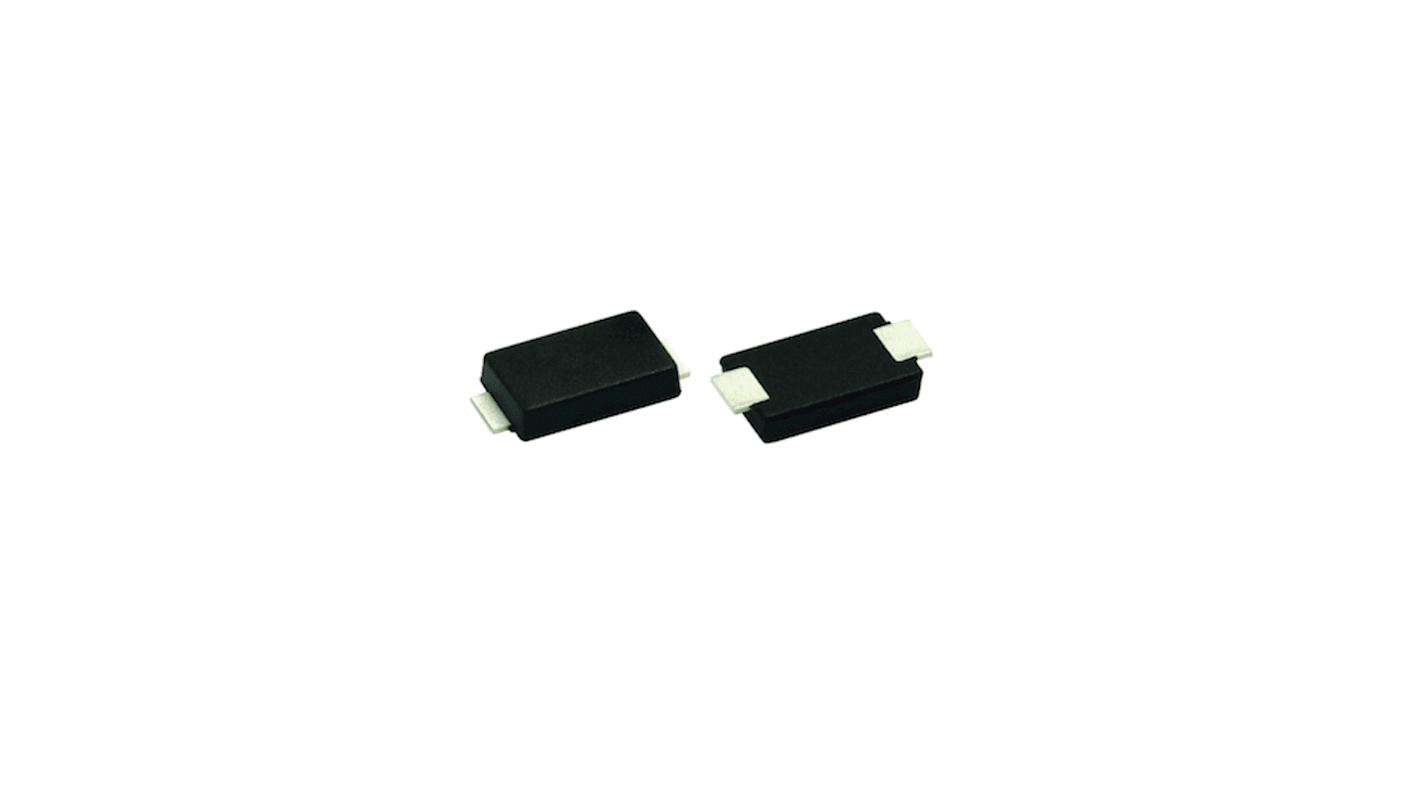

Vishay 600 V 3 A Rectifier & Schottky Diode General Purpose 2-Pin DO-221AC S3AFJHM3/I
- RS Stock No.:
- 244-8947
- Mfr. Part No.:
- S3AFJHM3/I
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 50 units)*
£12.75
(exc. VAT)
£15.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 14,100 unit(s) shipping from 29 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 450 | £0.255 | £12.75 |
| 500 - 1200 | £0.23 | £11.50 |
| 1250 - 2450 | £0.217 | £10.85 |
| 2500 - 4950 | £0.209 | £10.45 |
| 5000 + | £0.204 | £10.20 |
*price indicative
- RS Stock No.:
- 244-8947
- Mfr. Part No.:
- S3AFJHM3/I
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Rectifier & Schottky Diode | |
| Mount Type | Surface | |
| Package Type | DO-221AC | |
| Maximum Continuous Forward Current If | 3A | |
| Peak Reverse Repetitive Voltage Vrrm | 600V | |
| Series | S3AF | |
| Diode Configuration | Single | |
| Rectifier Type | General Purpose | |
| Pin Count | 2 | |
| Peak Reverse Current Ir | 100μA | |
| Minimum Operating Temperature | -55°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A | |
| Maximum Forward Voltage Vf | 0.9V | |
| Maximum Operating Temperature | 175°C | |
| Peak Reverse Recovery Time trr | 2.7μs | |
| Width | 1 mm | |
| Length | 5.35mm | |
| Standards/Approvals | RoHS | |
| Height | 2.7mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Rectifier & Schottky Diode | ||
Mount Type Surface | ||
Package Type DO-221AC | ||
Maximum Continuous Forward Current If 3A | ||
Peak Reverse Repetitive Voltage Vrrm 600V | ||
Series S3AF | ||
Diode Configuration Single | ||
Rectifier Type General Purpose | ||
Pin Count 2 | ||
Peak Reverse Current Ir 100μA | ||
Minimum Operating Temperature -55°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 50A | ||
Maximum Forward Voltage Vf 0.9V | ||
Maximum Operating Temperature 175°C | ||
Peak Reverse Recovery Time trr 2.7μs | ||
Width 1 mm | ||
Length 5.35mm | ||
Standards/Approvals RoHS | ||
Height 2.7mm | ||
Automotive Standard AEC-Q101 | ||
The Vishay's surface mount glass passivated rectifier have glass passivated pellet chip junction and low profile. This rectifier used in general purpose rectification of power supplies, inverters, converters etc.
Very low profile - typical height of 0.95 mm
Ideal for automated placement
Low forward voltage drop
Low leakage current
AEC-Q101 qualified
