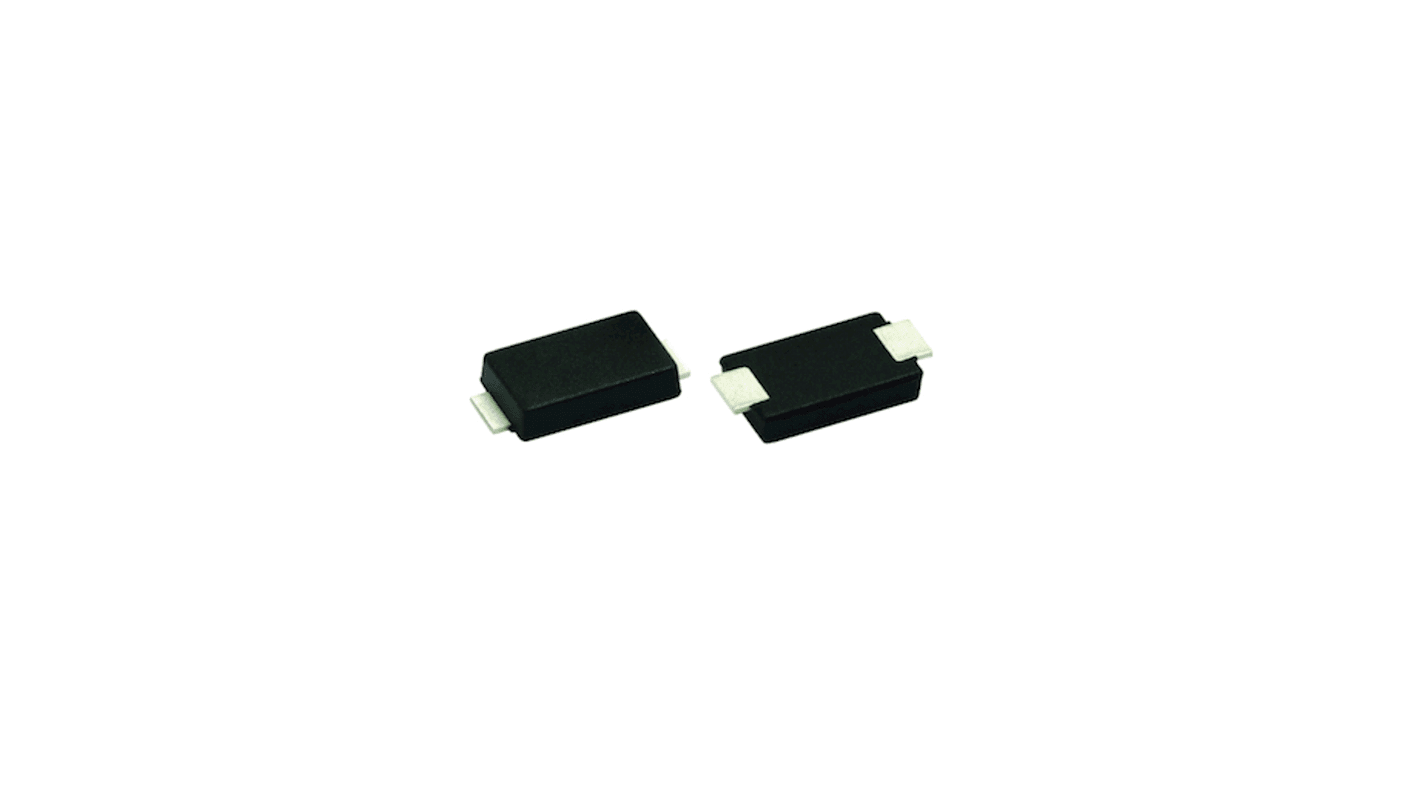

Vishay 600 V 3 A Rectifier & Schottky Diode General Purpose 2-Pin DO-221AC

View this category

Subtotal (1 reel of 14000 units)*

£1,036.00

(exc. VAT)

£1,246.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 14,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
14000 +£0.074£1,036.00

*price indicative

RS Stock No.:
244-8946
Mfr. Part No.:
S3AFJHM3/I
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Mount Type

Surface

Product Type

Rectifier & Schottky Diode

Package Type

DO-221AC

Maximum Continuous Forward Current If

3A

Peak Reverse Repetitive Voltage Vrrm

600V

Diode Configuration

Single

Series

S3AF

Rectifier Type

General Purpose

Pin Count

2

Peak Non-Repetitive Forward Surge Current Ifsm

50A

Peak Reverse Current Ir

100μA

Maximum Forward Voltage Vf

0.9V

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Peak Reverse Recovery Time trr

2.7μs

Standards/Approvals

RoHS

Width

1 mm

Height

2.7mm

Length

5.35mm

Automotive Standard

AEC-Q101

The Vishay's surface mount glass passivated rectifier have glass passivated pellet chip junction and low profile. This rectifier used in general purpose rectification of power supplies, inverters, converters etc.

Very low profile - typical height of 0.95 mm

Ideal for automated placement

Low forward voltage drop

Low leakage current

AEC-Q101 qualified
