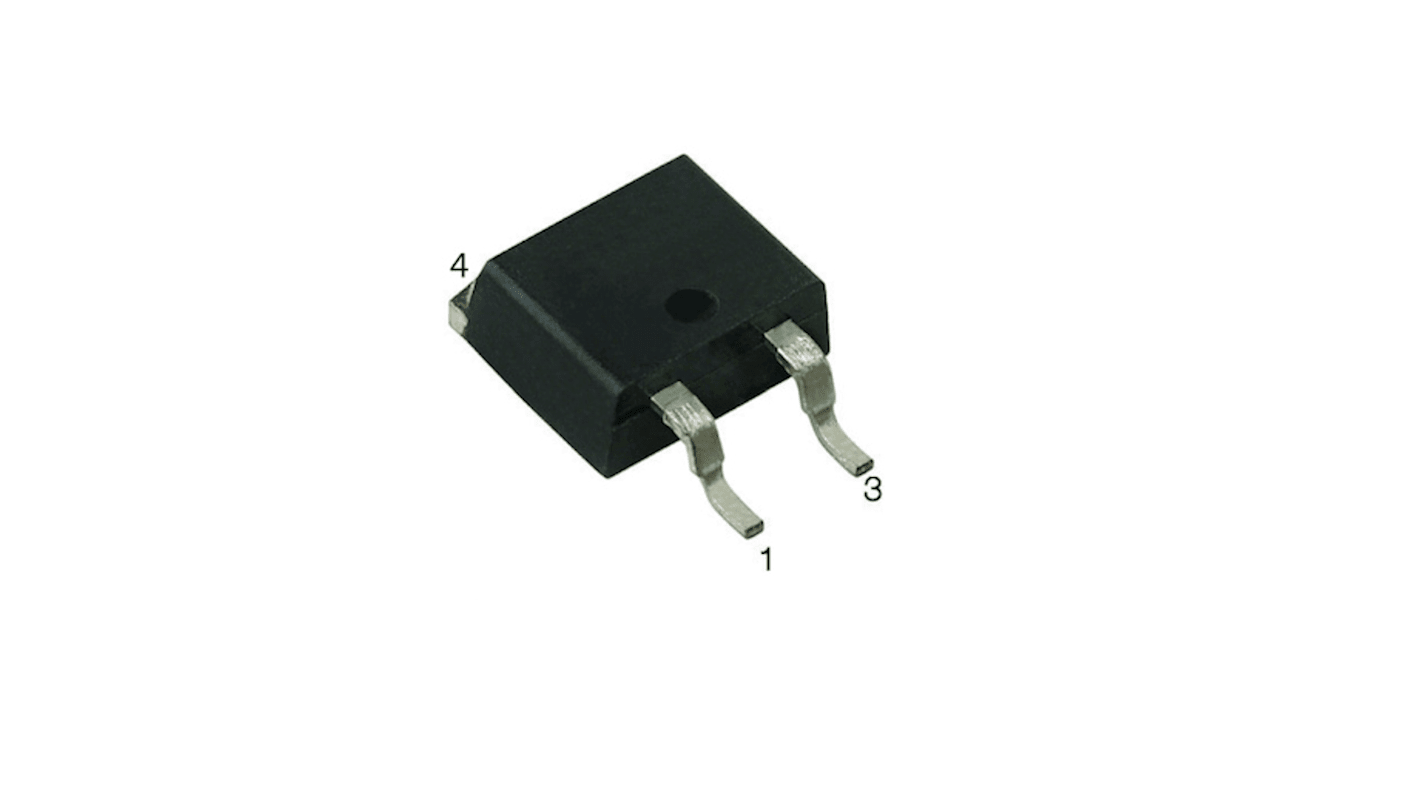

Vishay 600 V 20 A Rectifier & Schottky Diode General Purpose 2-Pin D2PAK

View this category

Subtotal (1 reel of 800 units)*

£695.20

(exc. VAT)

£834.40

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 800 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
800 +£0.869£695.20

*price indicative

RS Stock No.:
244-9116
Mfr. Part No.:
VS-E5TH2106S2LHM3
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Product Type

Rectifier & Schottky Diode

Mount Type

Surface

Package Type

TO-263

Maximum Continuous Forward Current If

20A

Peak Reverse Repetitive Voltage Vrrm

600V

Diode Configuration

Single

Series

VS

Rectifier Type

General Purpose

Pin Count

2

Peak Non-Repetitive Forward Surge Current Ifsm

200A

Minimum Operating Temperature

-50°C

Peak Reverse Current Ir

500μA

Maximum Forward Voltage Vf

1.15V

Peak Reverse Recovery Time trr

22ns

Maximum Operating Temperature

175°C

Standards/Approvals

RoHS

Height

15.88mm

Width

4.83 mm

Length

10.67mm

Automotive Standard

AEC-Q101

The Vishay's hyperfast rectifier provides unique combination of low conduction and low switching losses, and can be used in applications like soft switched, resonant converters, medium frequency hard switching converters etc.

Best in class forward voltage drop and switching losses trade off

Optimized for high speed operation

175 °C maximum operating junction temperature

AEC-Q101 qualified meets JESD 201 class 2 whisker test

RoHS compliant
