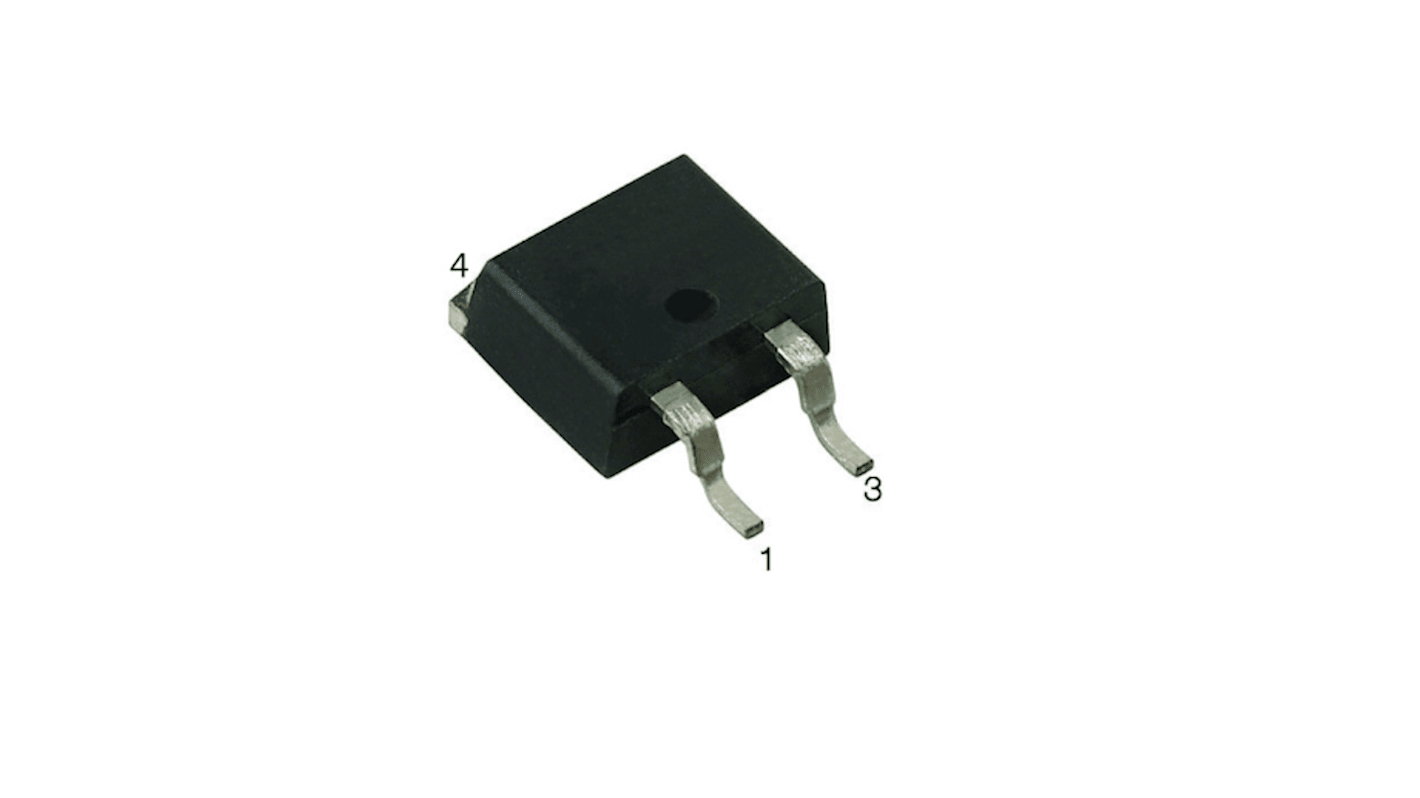

Vishay 600 V 15 A Rectifier & Schottky Diode General Purpose 2-Pin D2PAK VS-E5TX1506S2LHM3
- RS Stock No.:
- 244-9123
- Mfr. Part No.:
- VS-E5TX1506S2LHM3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 5 units)*
£13.35
(exc. VAT)
£16.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 815 unit(s) shipping from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £2.67 | £13.35 |
| 50 - 120 | £2.404 | £12.02 |
| 125 - 245 | £2.272 | £11.36 |
| 250 - 495 | £2.19 | £10.95 |
| 500 + | £2.136 | £10.68 |
*price indicative
- RS Stock No.:
- 244-9123
- Mfr. Part No.:
- VS-E5TX1506S2LHM3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Surface | |
| Product Type | Rectifier & Schottky Diode | |
| Package Type | TO-263 | |
| Maximum Continuous Forward Current If | 15A | |
| Peak Reverse Repetitive Voltage Vrrm | 600V | |
| Series | VS | |
| Diode Configuration | Single | |
| Rectifier Type | General Purpose | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -50°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 185A | |
| Maximum Forward Voltage Vf | 1.3V | |
| Peak Reverse Current Ir | 500μA | |
| Maximum Operating Temperature | 175°C | |
| Peak Reverse Recovery Time trr | 19ns | |
| Height | 15.88mm | |
| Standards/Approvals | RoHS | |
| Length | 10.67mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Surface | ||
Product Type Rectifier & Schottky Diode | ||
Package Type TO-263 | ||
Maximum Continuous Forward Current If 15A | ||
Peak Reverse Repetitive Voltage Vrrm 600V | ||
Series VS | ||
Diode Configuration Single | ||
Rectifier Type General Purpose | ||
Pin Count 2 | ||
Minimum Operating Temperature -50°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 185A | ||
Maximum Forward Voltage Vf 1.3V | ||
Peak Reverse Current Ir 500μA | ||
Maximum Operating Temperature 175°C | ||
Peak Reverse Recovery Time trr 19ns | ||
Height 15.88mm | ||
Standards/Approvals RoHS | ||
Length 10.67mm | ||
Automotive Standard AEC-Q101 | ||
The Vishay's hyperfast rectifier provides unique combination of low conduction and low switching losses, and can be used in applications like soft switched, resonant converters, medium frequency hard switching converters etc.
Best in class forward voltage drop and switching losses trade off
Optimized for high speed operation
175 °C maximum operating junction temperature
AEC-Q101 qualified meets JESD 201 class 2 whisker test
RoHS compliant
