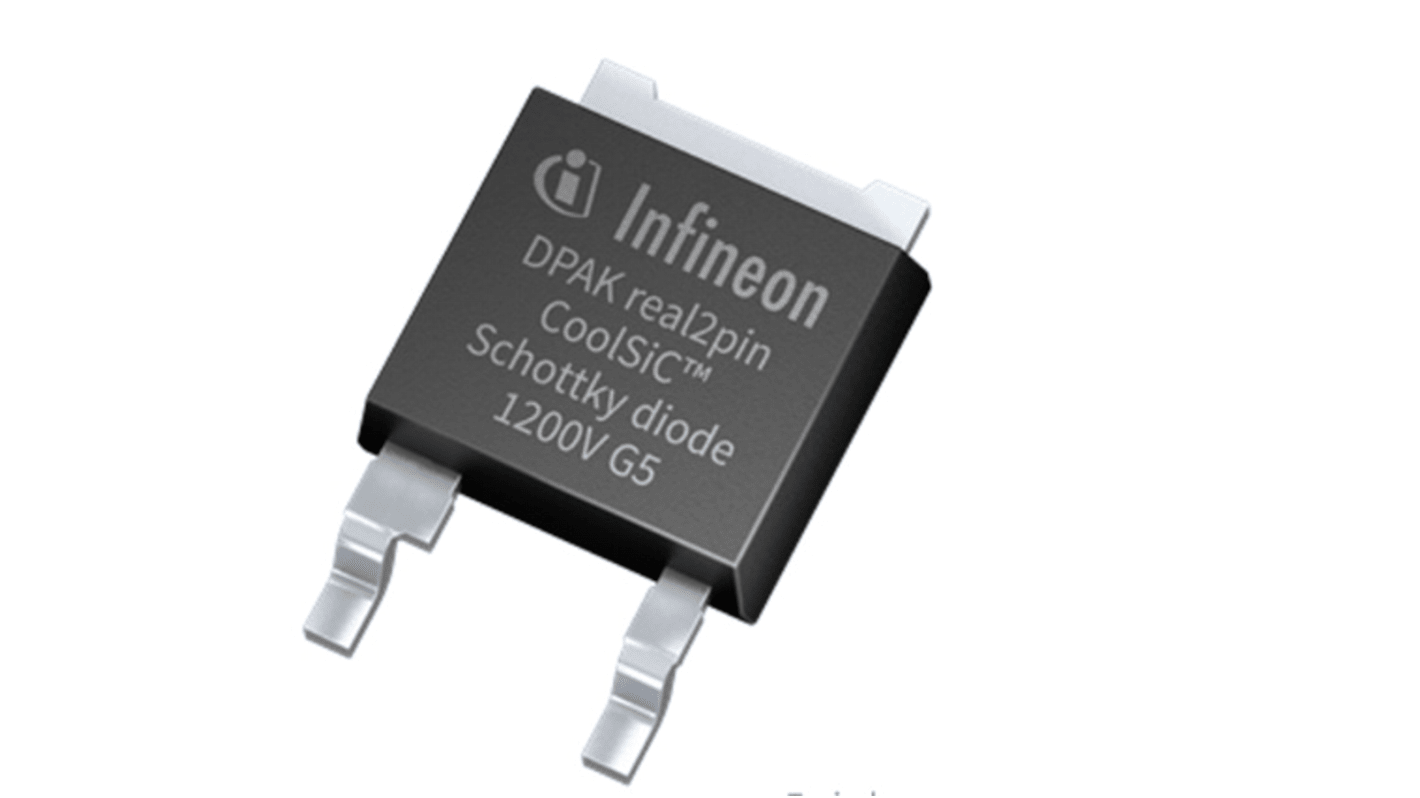

Infineon 1200 V 5 A Diode Schottky 2-Pin DPAK IDM05G120C5XTMA1
- RS Stock No.:
- 222-4829
- Mfr. Part No.:
- IDM05G120C5XTMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 5 units)*
£12.00
(exc. VAT)
£14.40
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 26 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £2.40 | £12.00 |
| 25 - 45 | £2.136 | £10.68 |
| 50 - 120 | £2.016 | £10.08 |
| 125 - 245 | £1.874 | £9.37 |
| 250 + | £1.726 | £8.63 |
*price indicative
- RS Stock No.:
- 222-4829
- Mfr. Part No.:
- IDM05G120C5XTMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | TO-252 | |
| Maximum Continuous Forward Current If | 5A | |
| Peak Reverse Repetitive Voltage Vrrm | 1200V | |
| Series | 5th Generation thinQ!TM 1200 V SiC Schottky Diode IDM05G120C5 | |
| Diode Configuration | Silicon Carbide Schottky Diode | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Maximum Forward Voltage Vf | 1.95V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Length | 6.65mm | |
| Height | 10.4mm | |
| Standards/Approvals | J-STD20 and JESD22 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type TO-252 | ||
Maximum Continuous Forward Current If 5A | ||
Peak Reverse Repetitive Voltage Vrrm 1200V | ||
Series 5th Generation thinQ!TM 1200 V SiC Schottky Diode IDM05G120C5 | ||
Diode Configuration Silicon Carbide Schottky Diode | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Maximum Forward Voltage Vf 1.95V | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Length 6.65mm | ||
Height 10.4mm | ||
Standards/Approvals J-STD20 and JESD22 | ||
Automotive Standard No | ||
The Infineon CoolSiC™ Schottky diode generation 5 1200 V, 5 A in a DPAK real2pin package, presents a leading edge technology for SiC Schottky Barrier diodes. The thin wafer technology, already introduced with G2, is now combined with a new merged pn junction improving diode surge current capabilities. The result is a series of products delivering market leading efficiency and more system reliability at an attractive cost point.
Best-in-class forward voltage (VF)
No reverse recovery charge
Mild positive temperature dependency of VF
Best-in-class surge current capability
Excellent thermal performance
