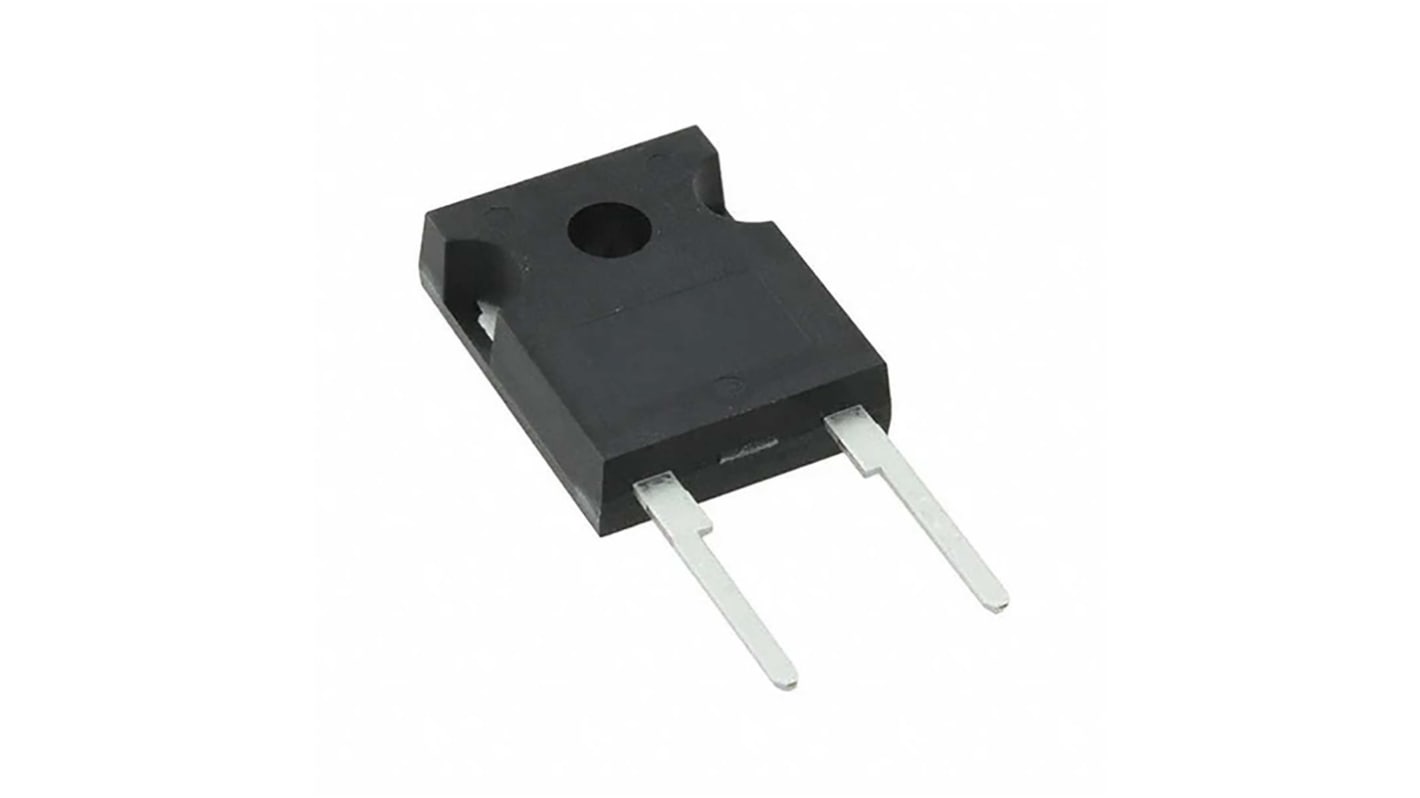

STMicroelectronics 600 V 80 A Diode High Voltage 2-Pin DO-247

View this category
Bulk discount available

Subtotal (1 tube of 30 units)*

£62.22

(exc. VAT)

£74.67

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 06 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
30 - 90£2.074£62.22
120 - 240£1.811£54.33
270 - 480£1.763£52.89
510 - 990£1.719£51.57
1020 +£1.676£50.28

*price indicative

RS Stock No.:
204-3940
Mfr. Part No.:
STTH60RQ06WL
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

Diode

Mount Type

Surface

Package Type

DO-247

Maximum Continuous Forward Current If

80A

Peak Reverse Repetitive Voltage Vrrm

600V

Rectifier Type

High Voltage

Pin Count

2

Peak Reverse Current Ir

160μA

Maximum Forward Voltage Vf

1.85V

Minimum Operating Temperature

-65°C

Peak Non-Repetitive Forward Surge Current Ifsm

425A

Maximum Operating Temperature

175°C

Length

40.6mm

Width

15.49 mm

Height

4.7mm

Diameter

3.56 mm

Standards/Approvals

No

Automotive Standard

No

COO (Country of Origin):
CN
The STMicroelectronics ultrafast high voltage rectifier has been developed for applications requiring a high-voltage (HV) capability such as in secondary rectification in HV LLC full bridge topology or in high voltage boost function. It is ideal for switching power supplies and industrial applications, as rectification function, or even freewheeling and clamping diode.

High junction temperature capability

Ultrafast with soft recovery behaviour

Low reverse current

Low thermal resistance

Reduced switching and conduction losses

ECOPACK2 compliant component
