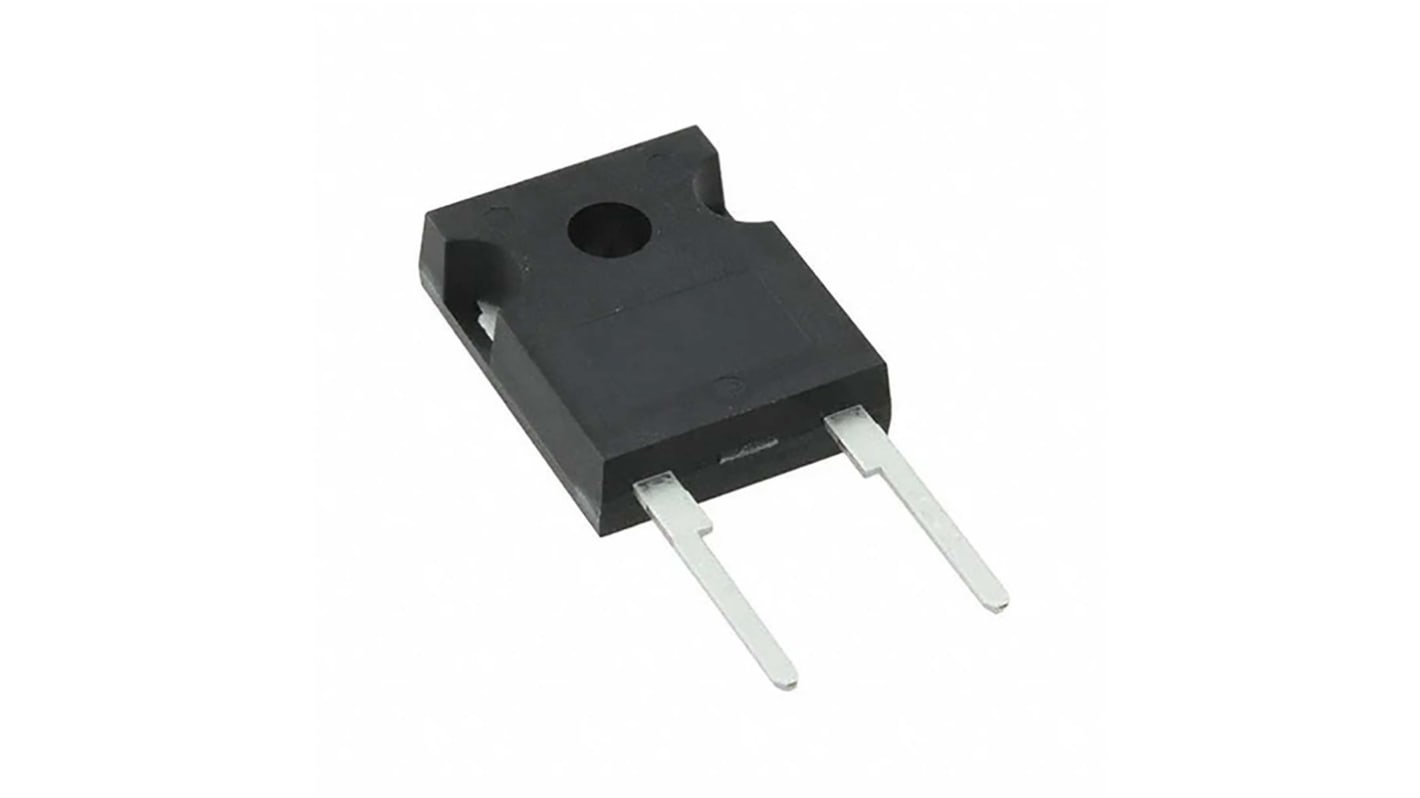

STMicroelectronics 600 V 50 A Diode High Voltage 2-Pin DO-247 LL STTH30RQ06WL
- RS Stock No.:
- 204-3935
- Mfr. Part No.:
- STTH30RQ06WL
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 204-3935
- Mfr. Part No.:
- STTH30RQ06WL
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | DO-247 LL | |
| Maximum Continuous Forward Current If | 50A | |
| Peak Reverse Repetitive Voltage Vrrm | 600V | |
| Rectifier Type | High Voltage | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -65°C | |
| Maximum Forward Voltage Vf | 1.85V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200A | |
| Peak Reverse Current Ir | 80μA | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Width | 15.45 mm | |
| Height | 4.85mm | |
| Diameter | 3.55 mm | |
| Length | 34mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type DO-247 LL | ||
Maximum Continuous Forward Current If 50A | ||
Peak Reverse Repetitive Voltage Vrrm 600V | ||
Rectifier Type High Voltage | ||
Pin Count 2 | ||
Minimum Operating Temperature -65°C | ||
Maximum Forward Voltage Vf 1.85V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 200A | ||
Peak Reverse Current Ir 80μA | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Width 15.45 mm | ||
Height 4.85mm | ||
Diameter 3.55 mm | ||
Length 34mm | ||
Automotive Standard No | ||
The STMicroelectronics ultrafast high voltage rectifier has been developed to be used in application requiring a high voltage secondary rectification for LLC full bridge topology. It is also suited for use in switching power supplies, industrial applications, as rectification, freewheeling and clamping diode.
ECOPACK2 compliant
Low reverse current
Low thermal resistance
High junction temperature capability
Ultrafast with soft recovery behaviour
Reduce switching and conduction losses
D²PAK HV creep age distance is 5.38 mm min
