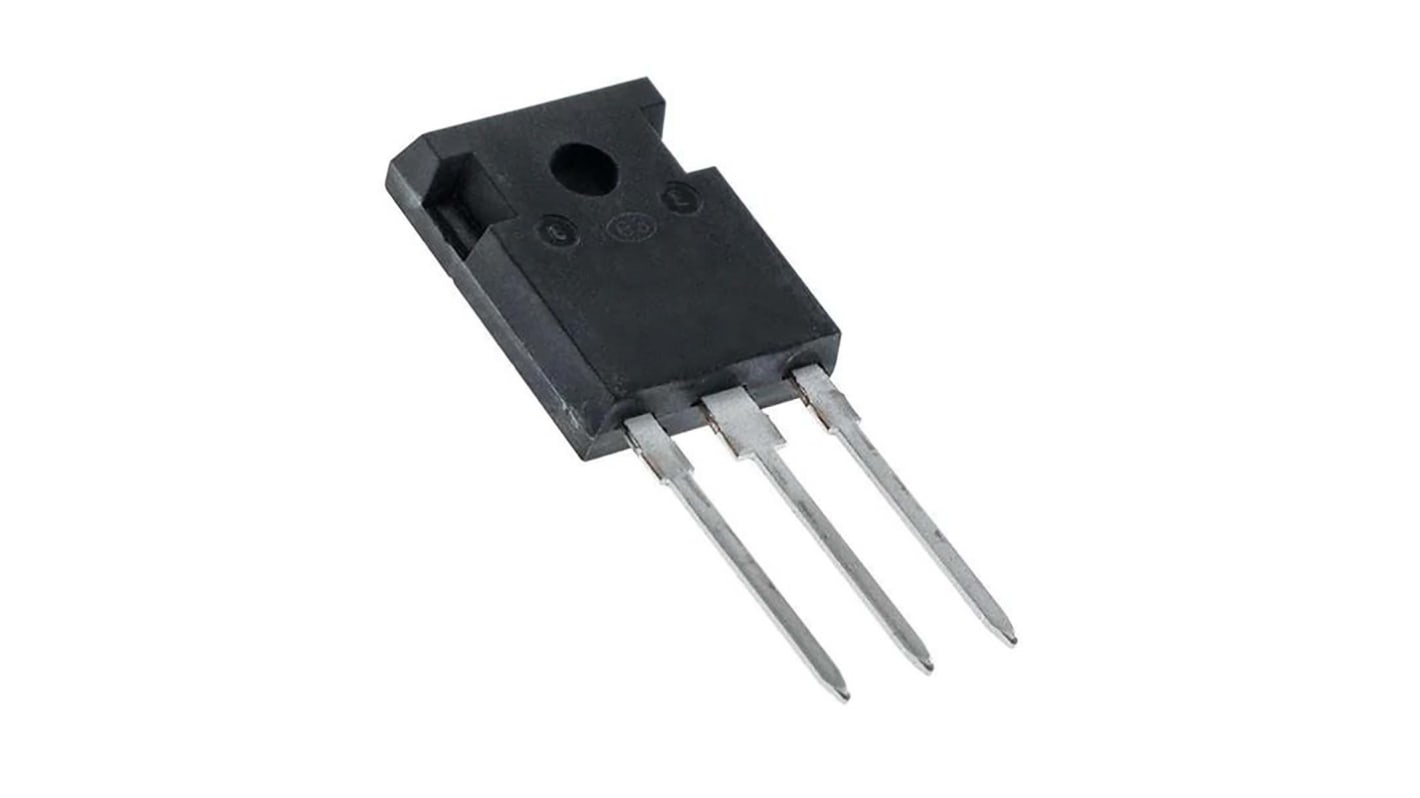

STMicroelectronics 600 V 50 A Diode High Voltage 3-Pin TO-247 STTH60RQ06CWL

View this category

Subtotal (1 pack of 5 units)*

£9.00

(exc. VAT)

£10.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 570 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 +£1.80£9.00

*price indicative

Packaging Options:
RS Stock No.:
204-3939
Mfr. Part No.:
STTH60RQ06CWL
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Mount Type

Surface

Product Type

Diode

Package Type

TO-247

Maximum Continuous Forward Current If

50A

Peak Reverse Repetitive Voltage Vrrm

600V

Rectifier Type

High Voltage

Pin Count

3

Peak Reverse Current Ir

80μA

Peak Non-Repetitive Forward Surge Current Ifsm

200A

Maximum Forward Voltage Vf

1.85V

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

175°C

Length

40.6mm

Height

4.9mm

Diameter

3.5 mm

Width

15.7 mm

Standards/Approvals

No

Automotive Standard

No

COO (Country of Origin):
PH
The STMicroelectronics ultrafast high voltage rectifier has been developed for applications requiring a high-voltage (HV) capability such as in secondary rectification in HV LLC full bridge topology or in high voltage boost function. It is ideal for switching power supplies and industrial applications, as rectification function, or even freewheeling and clamping diode.

High junction temperature capability

Ultrafast with soft recovery behaviour

Low reverse current

Low thermal resistance

Reduced switching and conduction losses

ECOPACK2 compliant component
