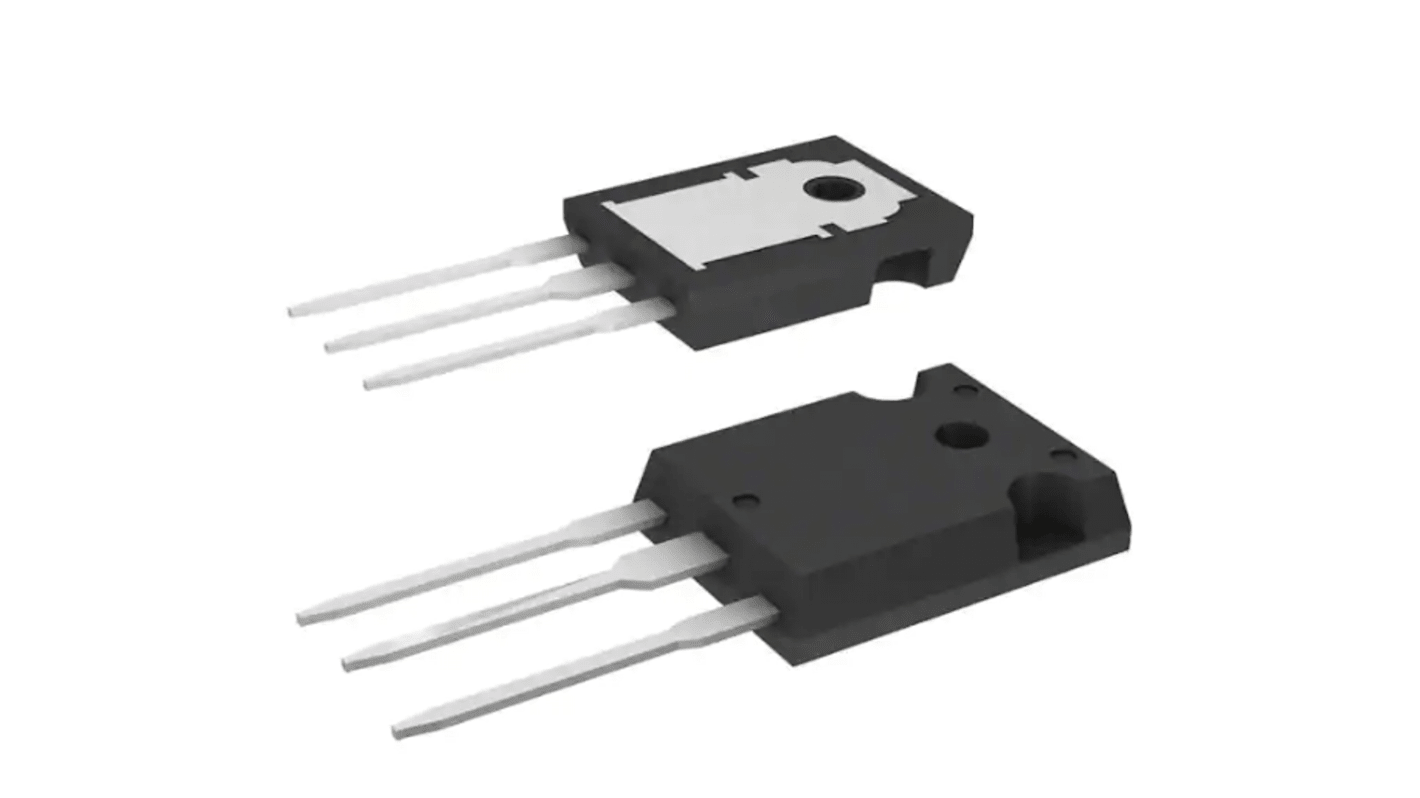

STMicroelectronics 60V 30A, Dual Schottky Diode, 3-Pin TO-247 STPS3060CW
- RS Stock No.:
- 189-3980
- Mfr. Part No.:
- STPS3060CW
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 tube of 30 units)*
£37.41
(exc. VAT)
£44.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 60 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
---|---|---|
30 - 90 | £1.247 | £37.41 |
120 - 240 | £1.213 | £36.39 |
270 - 480 | £1.181 | £35.43 |
510 - 990 | £1.151 | £34.53 |
1020 + | £1.122 | £33.66 |
*price indicative
- RS Stock No.:
- 189-3980
- Mfr. Part No.:
- STPS3060CW
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
Mounting Type | Through Hole | |
Package Type | TO-247 | |
Maximum Continuous Forward Current | 30A | |
Peak Reverse Repetitive Voltage | 60V | |
Diode Configuration | 2x Common Cathode Pair | |
Rectifier Type | Schottky Rectifier | |
Diode Type | Schottky | |
Pin Count | 3 | |
Maximum Forward Voltage Drop | 1.05V | |
Number of Elements per Chip | 2 | |
Diode Technology | Schottky | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
Mounting Type Through Hole | ||
Package Type TO-247 | ||
Maximum Continuous Forward Current 30A | ||
Peak Reverse Repetitive Voltage 60V | ||
Diode Configuration 2x Common Cathode Pair | ||
Rectifier Type Schottky Rectifier | ||
Diode Type Schottky | ||
Pin Count 3 | ||
Maximum Forward Voltage Drop 1.05V | ||
Number of Elements per Chip 2 | ||
Diode Technology Schottky | ||
High voltage dual Schottky rectifier suited for switchmode power supplies and other power converters. Packaged in TO-247, this device is intended for use in medium voltage operation, and particularly, in high frequency circuitries where low switching losses and low noise are required.
Negligible switching losses
Low capacitance
Low forward voltage drop
High reverse avalanche surge capability
Low capacitance
Low forward voltage drop
High reverse avalanche surge capability
