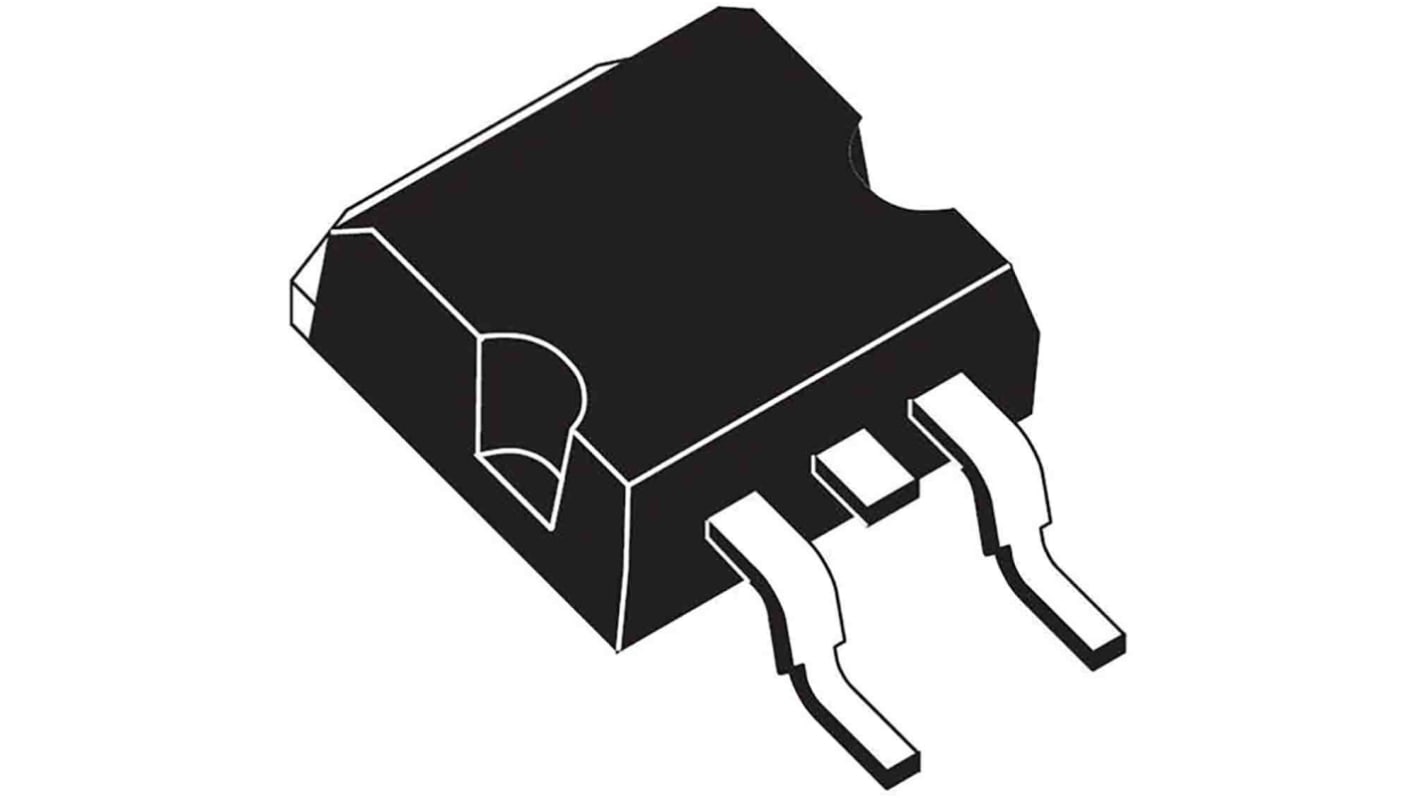

STMicroelectronics 650 V 4 A Diode 2-Pin D2PAK

View this category

Subtotal (1 reel of 2500 units)*

£2,127.50

(exc. VAT)

£2,552.50

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 10 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£0.851£2,127.50

*price indicative

RS Stock No.:
201-0881
Mfr. Part No.:
STPSC4H065B-TR
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Product Type

Diode

Mount Type

Surface

Package Type

TO-263

Maximum Continuous Forward Current If

4A

Peak Reverse Repetitive Voltage Vrrm

650V

Diode Configuration

Single

Series

STPSC

Pin Count

2

Peak Non-Repetitive Forward Surge Current Ifsm

200A

Minimum Operating Temperature

-40°C

Maximum Forward Voltage Vf

2.25V

Peak Reverse Current Ir

35μA

Maximum Operating Temperature

175°C

Length

28.25mm

Standards/Approvals

No

Height

4.5mm

Width

10 mm

Diameter

3.75 mm

Automotive Standard

No

The STMicroelectronics 650V high surge silicon carbide power schottky diode has a current rating of 4A. It is an ultra high performance power schottky diode. It is manufactured using a silicon carbide substrate. Its high forward surge capability ensures good robustness during transient phases. This SiC diode will boost the performance in hard switching condition.

No reverse recovery charge in application current range

Switching behavior independent of temperature

High forward surge capability

Power efficient product
