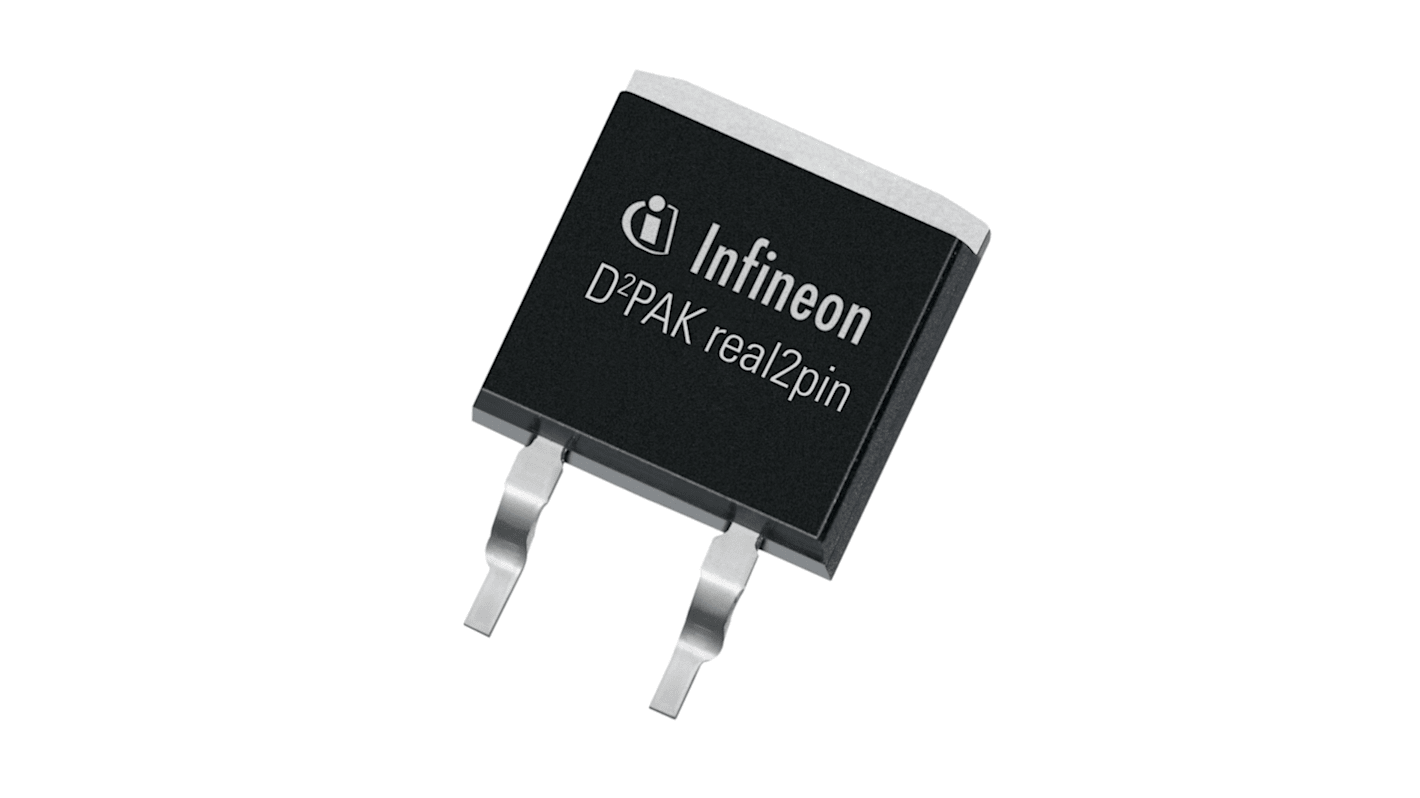

Infineon 650V 12A, SiC Schottky Diode, 2-Pin D2PAK IDK12G65C5XTMA2
- RS Stock No.:
- 273-2743
- Mfr. Part No.:
- IDK12G65C5XTMA2
- Brand:
- Infineon
Subtotal (1 reel of 1000 units)*
£1,880.00
(exc. VAT)
£2,260.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1000 + | £1.88 | £1,880.00 |
*price indicative
- RS Stock No.:
- 273-2743
- Mfr. Part No.:
- IDK12G65C5XTMA2
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Mounting Type | Through Hole | |
| Package Type | TO-263 | |
| Maximum Continuous Forward Current | 12A | |
| Peak Reverse Repetitive Voltage | 650V | |
| Diode Configuration | Single | |
| Series | IDK12G65C5 | |
| Diode Type | SiC Schottky | |
| Pin Count | 2 | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Mounting Type Through Hole | ||
Package Type TO-263 | ||
Maximum Continuous Forward Current 12A | ||
Peak Reverse Repetitive Voltage 650V | ||
Diode Configuration Single | ||
Series IDK12G65C5 | ||
Diode Type SiC Schottky | ||
Pin Count 2 | ||
Number of Elements per Chip 1 | ||
The Infineon SiC Schottky Diode is a silicon carbide schottky barrier diode. The ThinQ Generation 5 represents Infineon leading edge technology for the SiC schottky barrier diode. The Infineon proprietary diffusion soldering process, already introduced with G3 is now combined with a new, more compact design and thin wafer technology. The result is a new family of products showing improved efficiency over all load conditions, resulting from both the improved thermal characteristics and a lower figure of merit.
RoHS compliant
Pb free lead plating
High surge current capability
Benchmark switching behaviour
Optimized for high temperature operation
Temperature independent switching behaviour
Pb free lead plating
High surge current capability
Benchmark switching behaviour
Optimized for high temperature operation
Temperature independent switching behaviour
