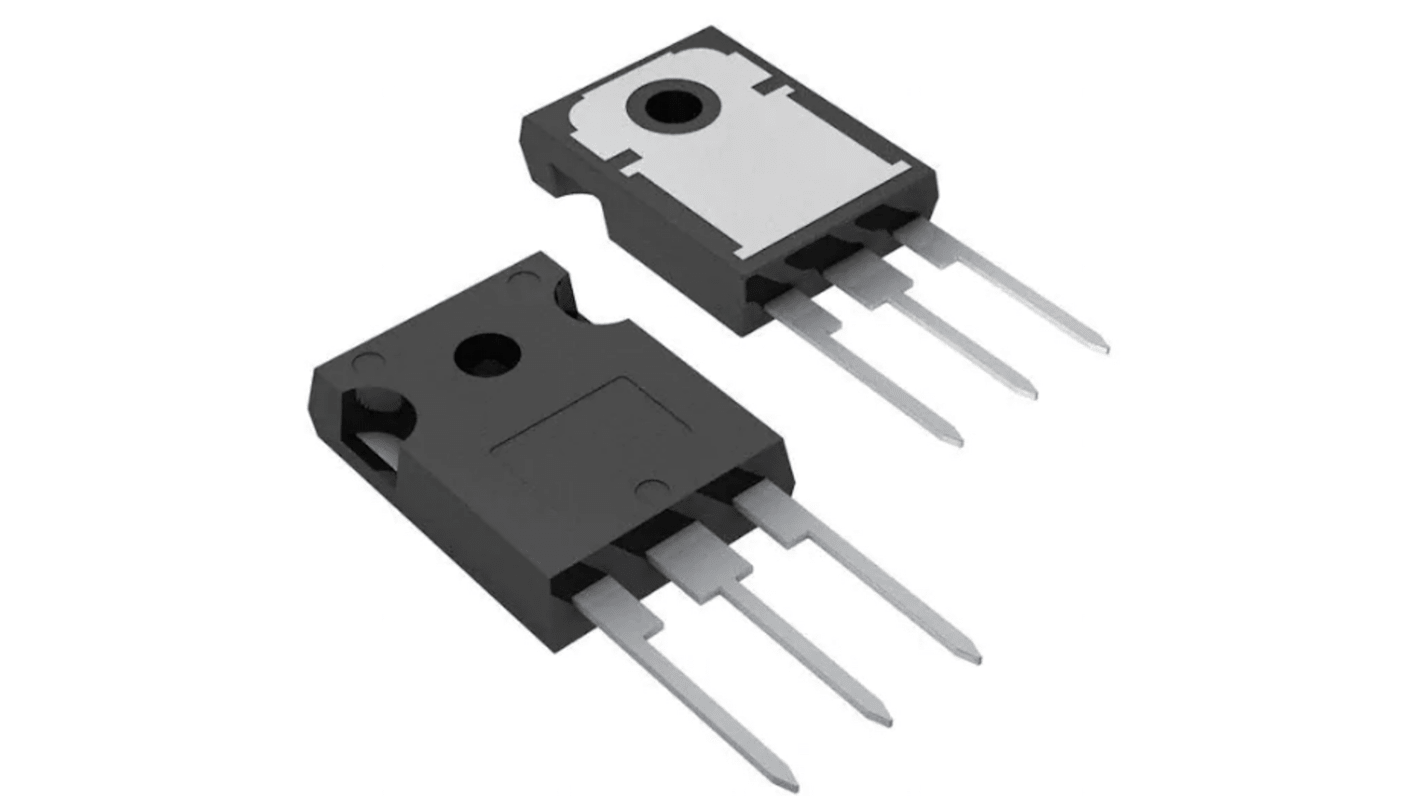

STMicroelectronics 600 V 30 A Diode High Voltage 3-Pin TO-247

View this category

Subtotal (1 tube of 30 units)*

£45.81

(exc. VAT)

£54.96

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,560 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
30 +£1.527£45.81

*price indicative

RS Stock No.:
189-4013
Mfr. Part No.:
STTH30R06CW
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Mount Type

Through Hole

Product Type

Diode

Package Type

TO-247

Maximum Continuous Forward Current If

30A

Peak Reverse Repetitive Voltage Vrrm

600V

Series

STTH30R06C

Diode Configuration

2x Common Cathode Pair

Rectifier Type

High Voltage

Pin Count

3

Peak Non-Repetitive Forward Surge Current Ifsm

120A

Peak Reverse Current Ir

800μA

Minimum Operating Temperature

-65°C

Maximum Forward Voltage Vf

2.9V

Maximum Operating Temperature

175°C

Peak Reverse Recovery Time trr

50ns

Length

15.75mm

Width

5.15 mm

Height

20.15mm

Standards/Approvals

No

Automotive Standard

No

This device using ST Turbo 2 600 V technology, is specially suited as boost diode in continuous mode power factor corrections and hard switching conditions. The device is also intended for use as a free wheeling diode in power supplies and other power switching applications.

Ultrafast switching

Low reverse current

Low thermal resistance

Reduced switching and conduction losses
