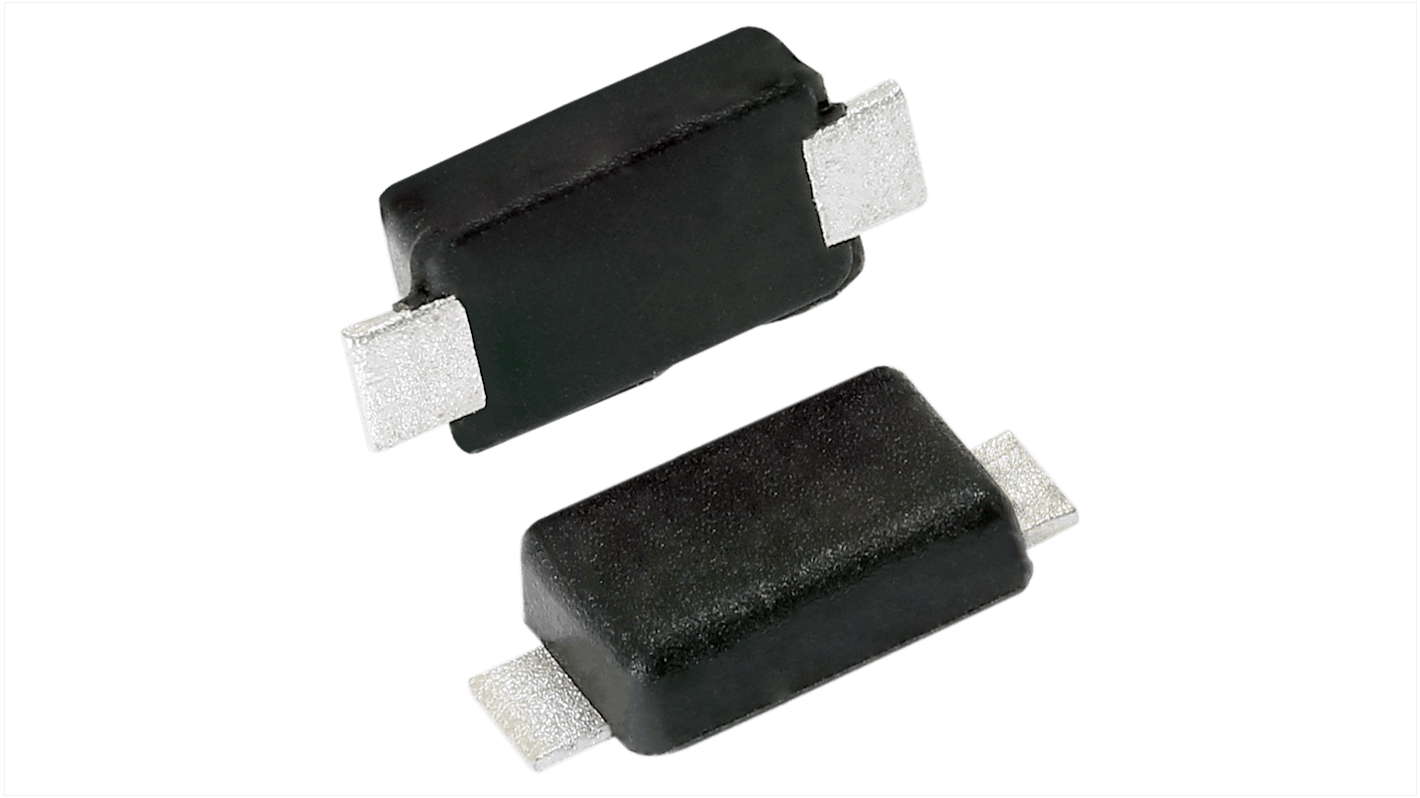

Vishay 1.2 kV 1 A Rectifier & Schottky Diode 2-Pin DO-219AB VS-E7FX0112-M3/I
- RS Stock No.:
- 277-508
- Mfr. Part No.:
- VS-E7FX0112-M3/I
- Brand:
- Vishay
Currently unavailable
Sorry, we don't know when this will be back in stock.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (On a Tape of 50)
£8.90
(exc. VAT)
£10.68
(inc. VAT)
- RS Stock No.:
- 277-508
- Mfr. Part No.:
- VS-E7FX0112-M3/I
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Rectifier & Schottky Diode | |
| Mount Type | Surface | |
| Package Type | DO-219AB | |
| Maximum Continuous Forward Current If | 1A | |
| Peak Reverse Repetitive Voltage Vrrm | 1.2kV | |
| Diode Configuration | Single | |
| Series | eSMP | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 14A | |
| Minimum Operating Temperature | -55°C | |
| Maximum Forward Voltage Vf | 2.3V | |
| Peak Reverse Current Ir | 20μA | |
| Peak Reverse Recovery Time trr | 50ns | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Rectifier & Schottky Diode | ||
Mount Type Surface | ||
Package Type DO-219AB | ||
Maximum Continuous Forward Current If 1A | ||
Peak Reverse Repetitive Voltage Vrrm 1.2kV | ||
Diode Configuration Single | ||
Series eSMP | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 14A | ||
Minimum Operating Temperature -55°C | ||
Maximum Forward Voltage Vf 2.3V | ||
Peak Reverse Current Ir 20μA | ||
Peak Reverse Recovery Time trr 50ns | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS | ||
Automotive Standard No | ||
The Vishay Hyperfast Rectifiers are designed for optimized forward voltage drop and hyperfast recovery time, ensuring superior performance, ruggedness, and reliability. They are Ideal for use in flyback power supplies, MOSFET/IGBT drivers, and high frequency rectification in LED lighting and other applications requiring fast switching and efficiency.
175 °C maximum operating junction temperature
Specified for output and snubber operation
Low forward voltage drop
Low leakage current
