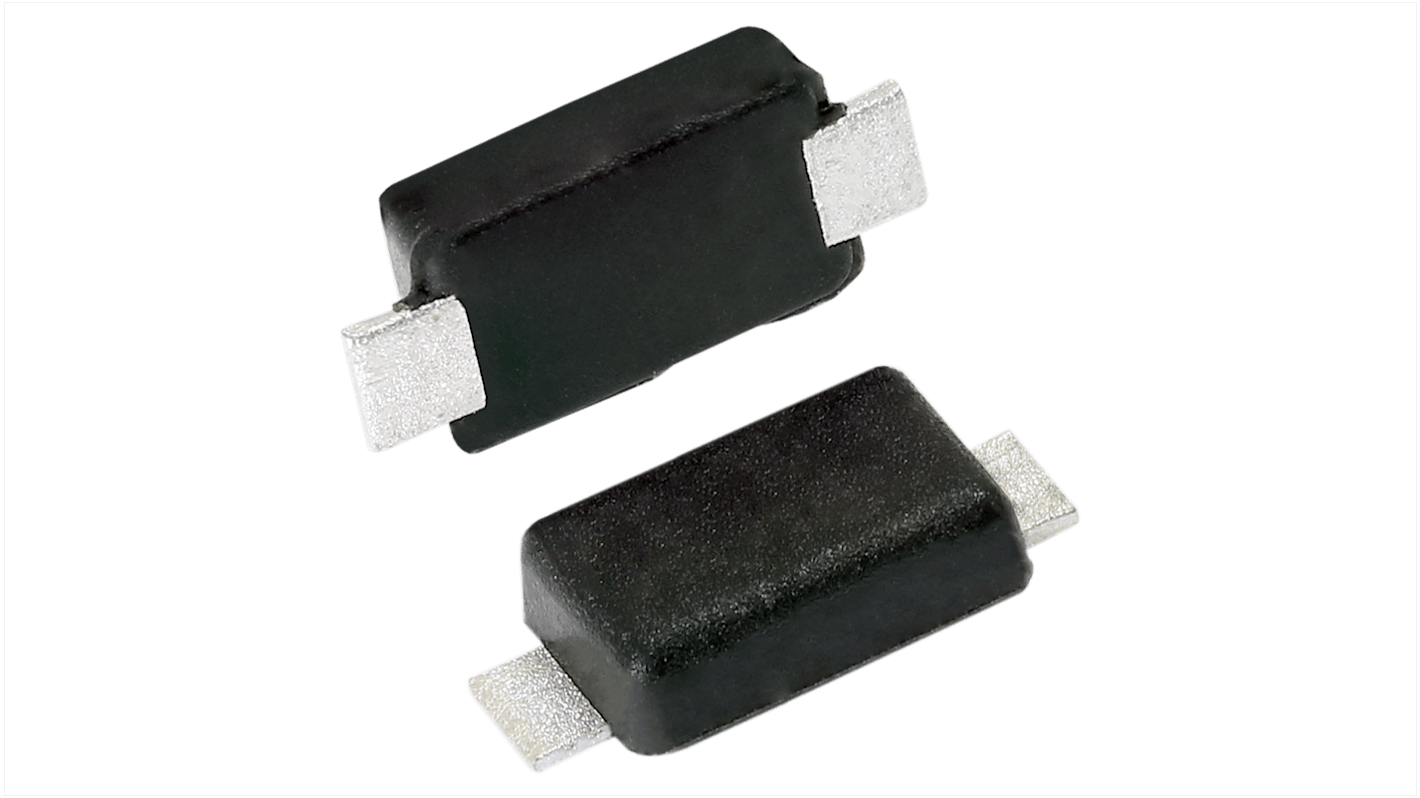

Vishay 1200 V 2 A Rectifier & Schottky Diode Trench MOS Schottky 2-Pin DO-219AB VS-E7FX0212-M3/I
- RS Stock No.:
- 277-513
- Mfr. Part No.:
- VS-E7FX0212-M3/I
- Brand:
- Vishay
Subtotal (1 reel of 10000 units)*
£1,440.00
(exc. VAT)
£1,730.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 10000 + | £0.144 | £1,440.00 |
*price indicative
- RS Stock No.:
- 277-513
- Mfr. Part No.:
- VS-E7FX0212-M3/I
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Rectifier & Schottky Diode | |
| Mount Type | Surface | |
| Package Type | DO-219AB | |
| Maximum Continuous Forward Current If | 2A | |
| Peak Reverse Repetitive Voltage Vrrm | 1200V | |
| Diode Configuration | Single | |
| Series | eSMP | |
| Rectifier Type | Trench MOS Schottky | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 21A | |
| Peak Reverse Current Ir | 3μA | |
| Minimum Operating Temperature | -55°C | |
| Maximum Forward Voltage Vf | 2.5V | |
| Maximum Operating Temperature | 175°C | |
| Height | 1.08mm | |
| Length | 3.9mm | |
| Width | 1.9 mm | |
| Standards/Approvals | AEC-Q101, JESD 201 Class 2 whisker test, RoHS, UL 94 V-0 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Rectifier & Schottky Diode | ||
Mount Type Surface | ||
Package Type DO-219AB | ||
Maximum Continuous Forward Current If 2A | ||
Peak Reverse Repetitive Voltage Vrrm 1200V | ||
Diode Configuration Single | ||
Series eSMP | ||
Rectifier Type Trench MOS Schottky | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 21A | ||
Peak Reverse Current Ir 3μA | ||
Minimum Operating Temperature -55°C | ||
Maximum Forward Voltage Vf 2.5V | ||
Maximum Operating Temperature 175°C | ||
Height 1.08mm | ||
Length 3.9mm | ||
Width 1.9 mm | ||
Standards/Approvals AEC-Q101, JESD 201 Class 2 whisker test, RoHS, UL 94 V-0 | ||
Automotive Standard No | ||
The Vishay Hyperfast Rectifiers are designed for optimized forward voltage drop and hyperfast recovery time, ensuring superior performance, ruggedness, and reliability. They are Ideal for use in flyback power supplies, MOSFET/IGBT drivers, and high frequency rectification in LED lighting and other applications requiring fast switching and efficiency.
175 °C maximum operating junction temperature
Specified for output and snubber operation
Low forward voltage drop
Low leakage current
