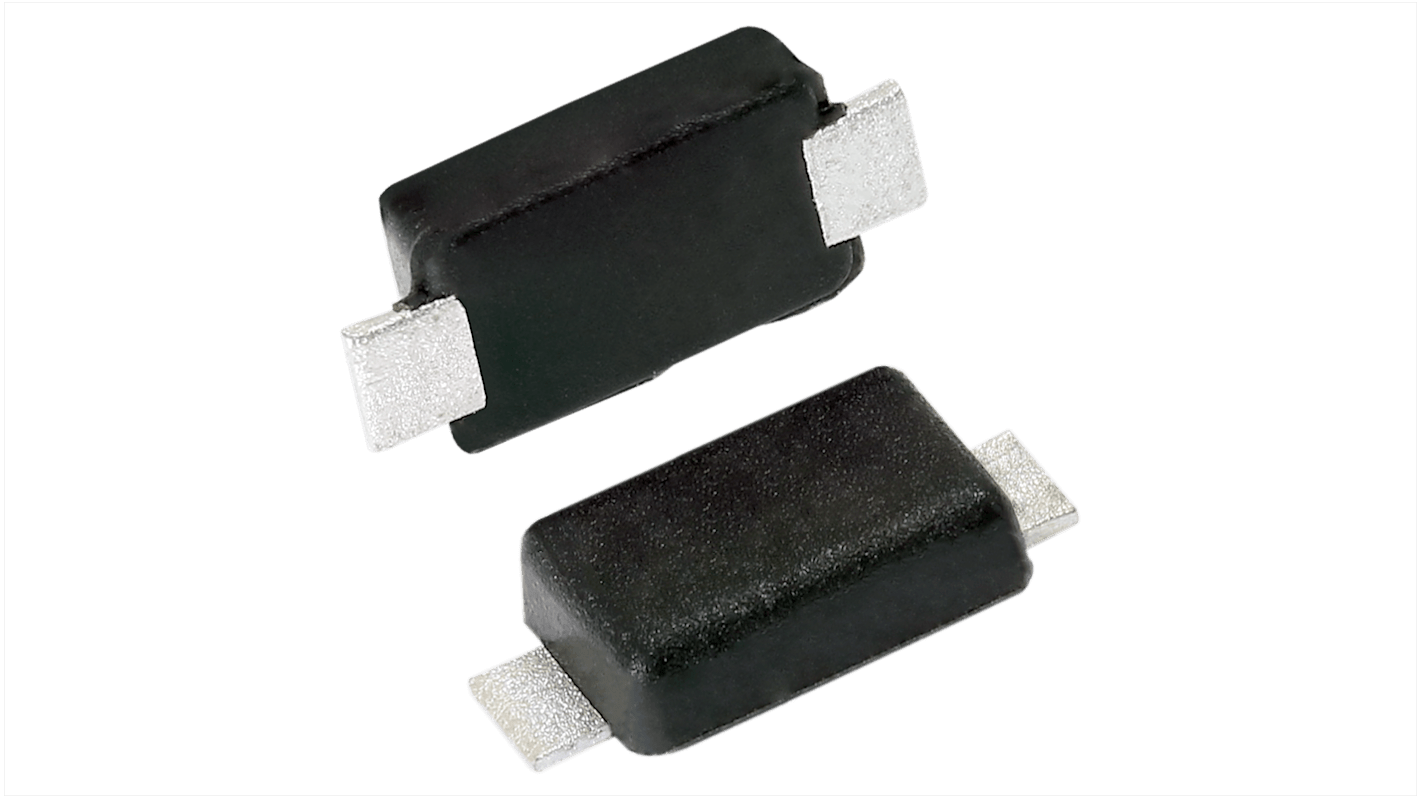

Vishay 1200 V 1 A Rectifier & Schottky Diode Trench MOS Schottky 2-Pin DO-219AB VS-E7FX0212HM3/I
- RS Stock No.:
- 277-510
- Mfr. Part No.:
- VS-E7FX0212HM3/I
- Brand:
- Vishay
Subtotal (1 reel of 10000 units)*
£1,590.00
(exc. VAT)
£1,910.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 10000 + | £0.159 | £1,590.00 |
*price indicative
- RS Stock No.:
- 277-510
- Mfr. Part No.:
- VS-E7FX0212HM3/I
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Surface | |
| Product Type | Rectifier & Schottky Diode | |
| Package Type | DO-219AB | |
| Maximum Continuous Forward Current If | 1A | |
| Peak Reverse Repetitive Voltage Vrrm | 1200V | |
| Series | eSMP | |
| Diode Configuration | Single | |
| Rectifier Type | Trench MOS Schottky | |
| Pin Count | 2 | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 21A | |
| Minimum Operating Temperature | -55°C | |
| Peak Reverse Current Ir | 3μA | |
| Maximum Forward Voltage Vf | 2.5V | |
| Maximum Operating Temperature | 175°C | |
| Height | 1.08mm | |
| Width | 1.9 mm | |
| Standards/Approvals | RoHS, JESD 201 Class 2 whisker test, UL 94 V-0, AEC-Q101 | |
| Length | 3.9mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Surface | ||
Product Type Rectifier & Schottky Diode | ||
Package Type DO-219AB | ||
Maximum Continuous Forward Current If 1A | ||
Peak Reverse Repetitive Voltage Vrrm 1200V | ||
Series eSMP | ||
Diode Configuration Single | ||
Rectifier Type Trench MOS Schottky | ||
Pin Count 2 | ||
Peak Non-Repetitive Forward Surge Current Ifsm 21A | ||
Minimum Operating Temperature -55°C | ||
Peak Reverse Current Ir 3μA | ||
Maximum Forward Voltage Vf 2.5V | ||
Maximum Operating Temperature 175°C | ||
Height 1.08mm | ||
Width 1.9 mm | ||
Standards/Approvals RoHS, JESD 201 Class 2 whisker test, UL 94 V-0, AEC-Q101 | ||
Length 3.9mm | ||
Automotive Standard AEC-Q101 | ||
The Vishay Hyperfast Rectifiers are designed for optimized forward voltage drop and hyperfast recovery time, ensuring superior performance, ruggedness, and reliability. They are Ideal for use in flyback power supplies, MOSFET/IGBT drivers, and high frequency rectification in LED lighting and other applications requiring fast switching and efficiency.
175 °C maximum operating junction temperature
Specified for output and snubber operation
Low forward voltage drop
Low leakage current
