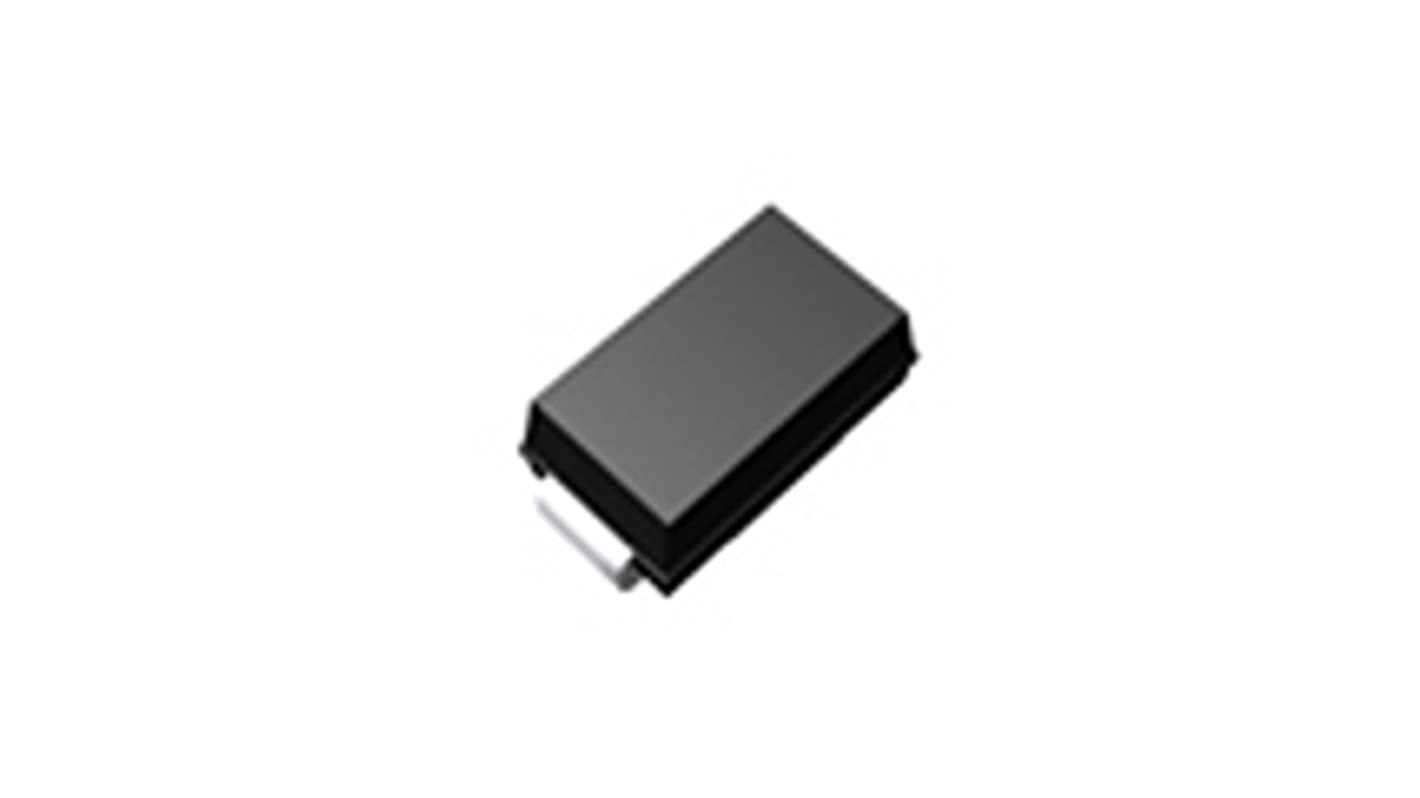

ROHM 30 V 3 A Diode Schottky 2-Pin DO-214AC RSX301L-30DDTE25
- RS Stock No.:
- 265-319
- Mfr. Part No.:
- RSX301L-30DDTE25
- Brand:
- ROHM
Bulk discount available
Subtotal (1 tape of 25 units)*
£11.20
(exc. VAT)
£13.45
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1,350 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 25 - 75 | £0.448 | £11.20 |
| 100 - 225 | £0.426 | £10.65 |
| 250 + | £0.394 | £9.85 |
*price indicative
- RS Stock No.:
- 265-319
- Mfr. Part No.:
- RSX301L-30DDTE25
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | DO-214AC (SMA) | |
| Maximum Continuous Forward Current If | 3A | |
| Peak Reverse Repetitive Voltage Vrrm | 30V | |
| Diode Configuration | Single | |
| Series | RSX301L | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Peak Reverse Current Ir | 200μA | |
| Maximum Forward Voltage Vf | 0.42V | |
| Minimum Operating Temperature | -40°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 70A | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Height | 2.2mm | |
| Length | 5.3mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type DO-214AC (SMA) | ||
Maximum Continuous Forward Current If 3A | ||
Peak Reverse Repetitive Voltage Vrrm 30V | ||
Diode Configuration Single | ||
Series RSX301L | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Peak Reverse Current Ir 200μA | ||
Maximum Forward Voltage Vf 0.42V | ||
Minimum Operating Temperature -40°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 70A | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Height 2.2mm | ||
Length 5.3mm | ||
Automotive Standard AEC-Q101 | ||
The ROHM Schottky barrier diode features low forward voltage and low reverse leakage current, making it ideal for general rectification applications. With its high reliability, it is specifically designed for automotive use, ensuring efficient performance and durability in demanding environments.
High reliability
Small power mould type
Low VF and Low IR
