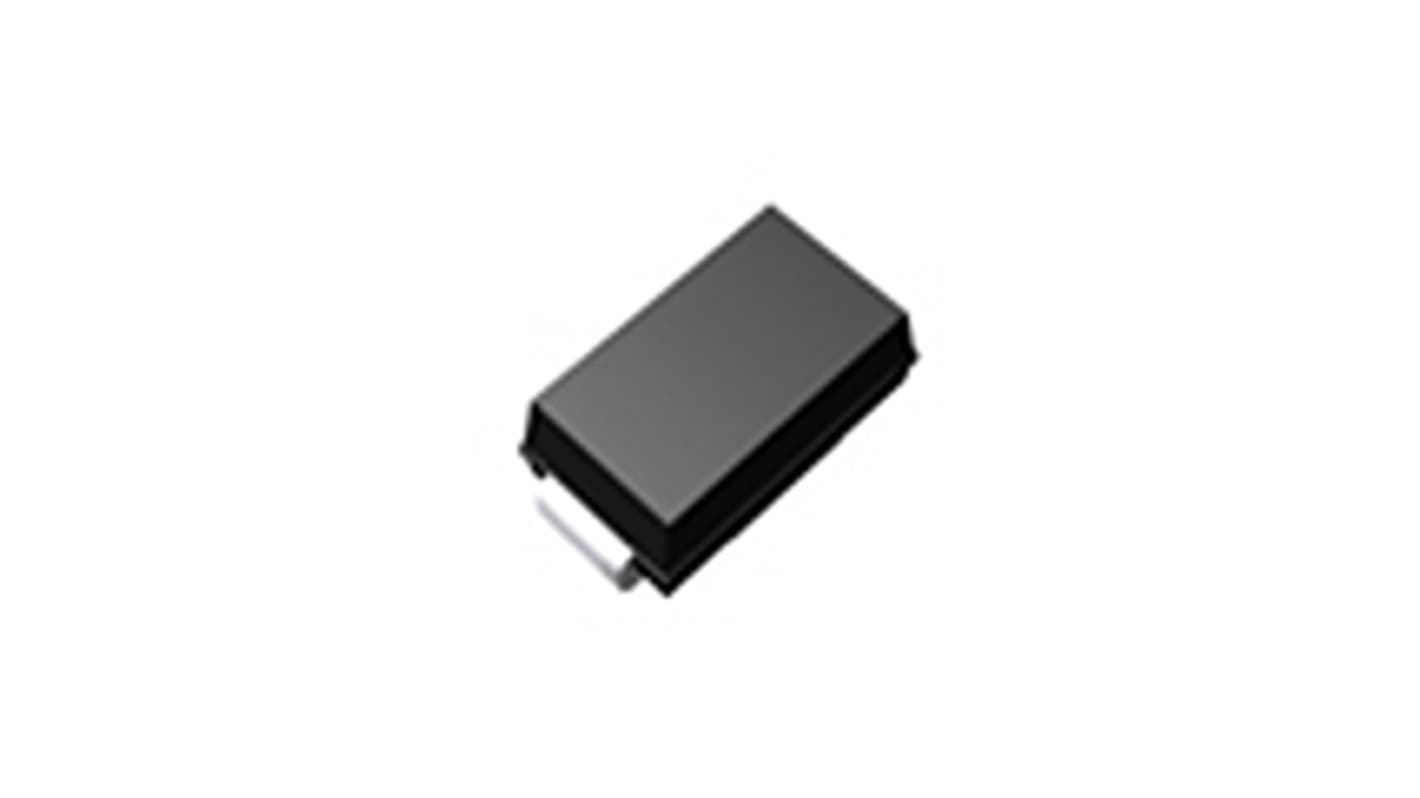

ROHM 30 V 2 A Diode Schottky 2-Pin DO-214AC RSX201L-30DDTE25
- RS Stock No.:
- 265-316
- Mfr. Part No.:
- RSX201L-30DDTE25
- Brand:
- ROHM
Bulk discount available
Subtotal (1 tape of 25 units)*
£6.575
(exc. VAT)
£7.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,425 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 25 - 75 | £0.263 | £6.58 |
| 100 - 225 | £0.25 | £6.25 |
| 250 - 475 | £0.231 | £5.78 |
| 500 - 975 | £0.213 | £5.33 |
| 1000 + | £0.205 | £5.13 |
*price indicative
- RS Stock No.:
- 265-316
- Mfr. Part No.:
- RSX201L-30DDTE25
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Diode | |
| Mount Type | Surface | |
| Package Type | DO-214AC (SMA) | |
| Maximum Continuous Forward Current If | 2A | |
| Peak Reverse Repetitive Voltage Vrrm | 30V | |
| Diode Configuration | Single | |
| Series | RSX201L | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Peak Reverse Current Ir | 150μA | |
| Maximum Forward Voltage Vf | 0.44V | |
| Minimum Operating Temperature | -40°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A | |
| Maximum Operating Temperature | 150°C | |
| Width | 2.8 mm | |
| Height | 2.2mm | |
| Length | 5.3mm | |
| Standards/Approvals | AEC-Q101 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Diode | ||
Mount Type Surface | ||
Package Type DO-214AC (SMA) | ||
Maximum Continuous Forward Current If 2A | ||
Peak Reverse Repetitive Voltage Vrrm 30V | ||
Diode Configuration Single | ||
Series RSX201L | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Peak Reverse Current Ir 150μA | ||
Maximum Forward Voltage Vf 0.44V | ||
Minimum Operating Temperature -40°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 60A | ||
Maximum Operating Temperature 150°C | ||
Width 2.8 mm | ||
Height 2.2mm | ||
Length 5.3mm | ||
Standards/Approvals AEC-Q101 | ||
Automotive Standard AEC-Q101 | ||
The ROHM Schottky barrier diode features low forward voltage and low reverse leakage current, making it suitable for general rectification applications. Its high reliability in automotive environments ensures optimal performance, making it an excellent choice for automotive electronic systems.
High reliability
Small power mould type
Low VF and Low IR
