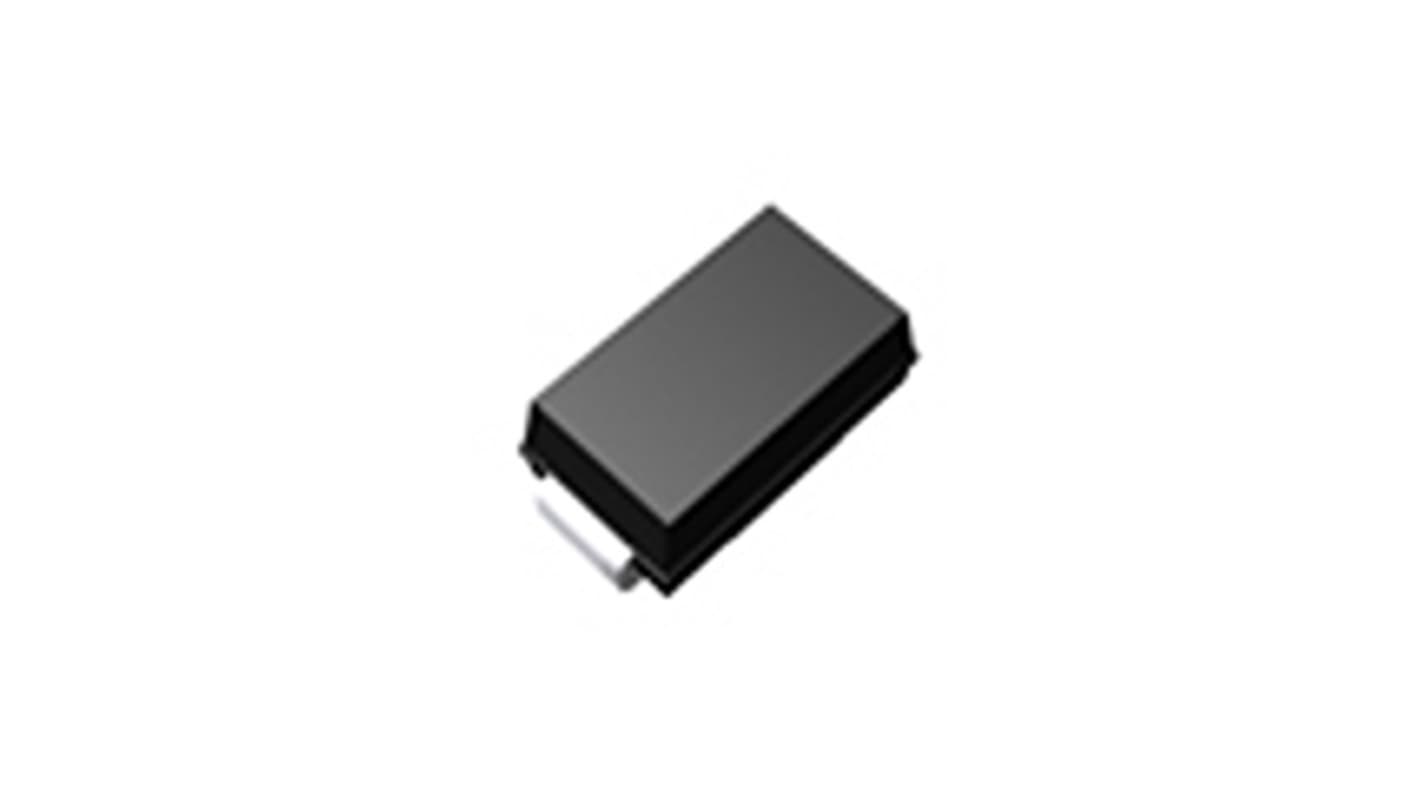

ROHM 30 V 2 A Diode Schottky 2-Pin DO-214AC RSX205L-30TFTE25
- RS Stock No.:
- 265-318
- Mfr. Part No.:
- RSX205L-30TFTE25
- Brand:
- ROHM
Bulk discount available
Subtotal (1 tape of 25 units)*
£8.575
(exc. VAT)
£10.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,425 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 25 - 75 | £0.343 | £8.58 |
| 100 - 225 | £0.326 | £8.15 |
| 250 - 475 | £0.302 | £7.55 |
| 500 - 975 | £0.278 | £6.95 |
| 1000 + | £0.268 | £6.70 |
*price indicative
- RS Stock No.:
- 265-318
- Mfr. Part No.:
- RSX205L-30TFTE25
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Mount Type | Surface | |
| Product Type | Diode | |
| Package Type | DO-214AC (SMA) | |
| Maximum Continuous Forward Current If | 2A | |
| Peak Reverse Repetitive Voltage Vrrm | 30V | |
| Series | RSX205L | |
| Diode Configuration | Single | |
| Rectifier Type | Schottky | |
| Pin Count | 2 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Forward Voltage Vf | 0.49V | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 60A | |
| Peak Reverse Current Ir | 200μA | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | AEC-Q101 | |
| Height | 2.2mm | |
| Length | 5.3mm | |
| Width | 2.8 mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Mount Type Surface | ||
Product Type Diode | ||
Package Type DO-214AC (SMA) | ||
Maximum Continuous Forward Current If 2A | ||
Peak Reverse Repetitive Voltage Vrrm 30V | ||
Series RSX205L | ||
Diode Configuration Single | ||
Rectifier Type Schottky | ||
Pin Count 2 | ||
Minimum Operating Temperature -40°C | ||
Maximum Forward Voltage Vf 0.49V | ||
Peak Non-Repetitive Forward Surge Current Ifsm 60A | ||
Peak Reverse Current Ir 200μA | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals AEC-Q101 | ||
Height 2.2mm | ||
Length 5.3mm | ||
Width 2.8 mm | ||
Automotive Standard AEC-Q101 | ||
The ROHM Schottky barrier diode is characterized by low forward voltage and low reverse leakage current, making it ideal for general rectification applications. Designed for high reliability, it is particularly well suited for automotive environments, ensuring efficient performance in automotive electronic systems.
High reliability
Small power mould type
Low VF and Low IR
