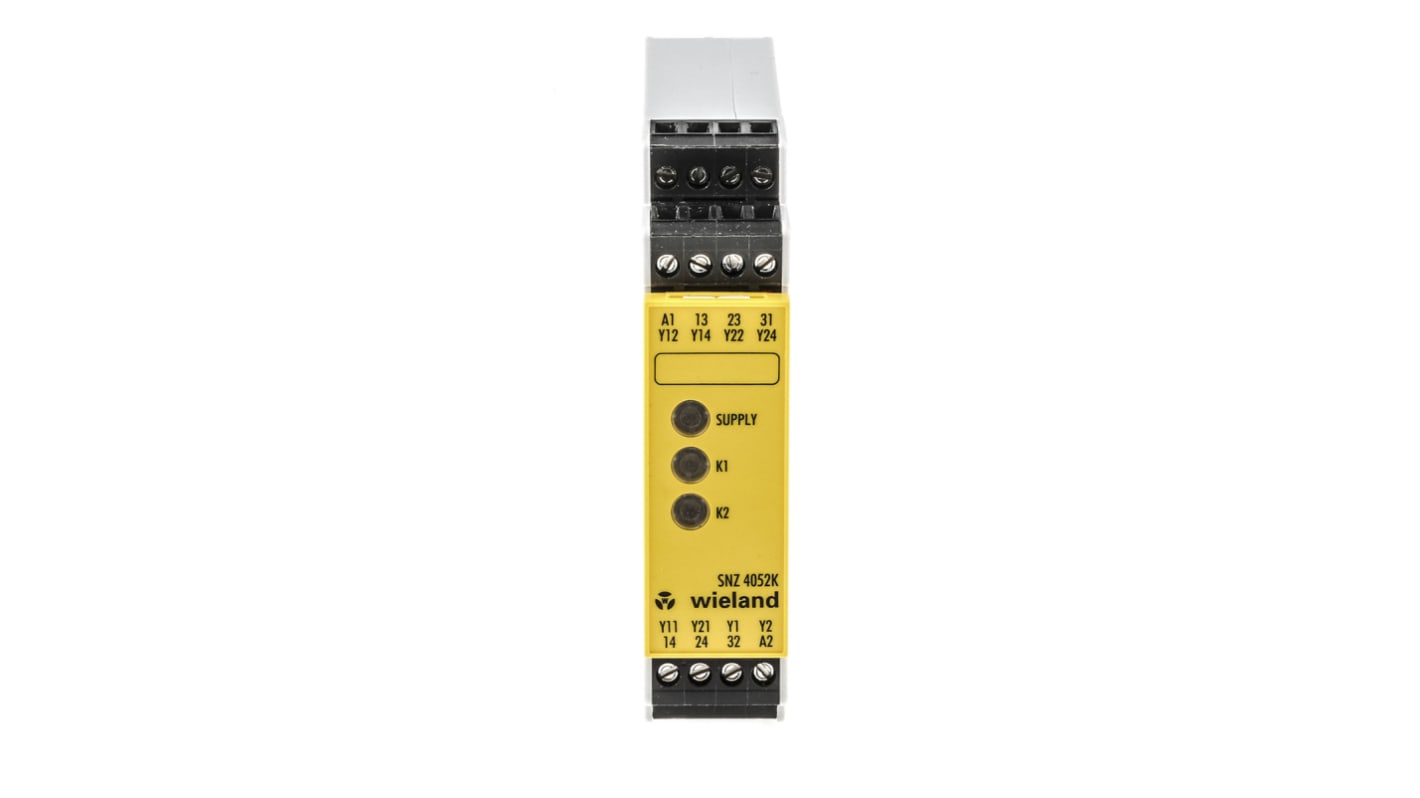

Wieland safeRELAY SNZ 4052 1 Auxiliary Contacts Safety Relay 24V ac/dc, Dual-Channel 2 Safety Contacts
- RS Stock No.:
- 515-1787
- Mfr. Part No.:
- R1.188.0530.1
- Brand:
- Wieland
Subtotal (1 unit)*
£178.06
(exc. VAT)
£213.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
- Plus 12 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £178.06 |
*price indicative
- RS Stock No.:
- 515-1787
- Mfr. Part No.:
- R1.188.0530.1
- Brand:
- Wieland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wieland | |
Supply Voltage | 24V ac/dc | |
Number of Channels | 2 | |
Safety Contacts | 2 | |
Function | Two Hand Control | |
Auxiliary Contacts | 1 | |
Reset Method | Monitored | |
Range | safeRELAY | |
Safety Category ISO 13849-1 | 4 | |
PL ISO 13849-1 | e | |
SIL IEC 61508 | 3 | |
Terminal Type | Screw | |
Width | 22.5mm | |
Series | SNZ 4052 | |
Depth | 114mm | |
Performance Level | e | |
Length | 96.5mm | |
Select all | ||
---|---|---|
Brand Wieland | ||
Supply Voltage 24V ac/dc | ||
Number of Channels 2 | ||
Safety Contacts 2 | ||
Function Two Hand Control | ||
Auxiliary Contacts 1 | ||
Reset Method Monitored | ||
Range safeRELAY | ||
Safety Category ISO 13849-1 4 | ||
PL ISO 13849-1 e | ||
SIL IEC 61508 3 | ||
Terminal Type Screw | ||
Width 22.5mm | ||
Series SNZ 4052 | ||
Depth 114mm | ||
Performance Level e | ||
Length 96.5mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
SNZ 4052K Safety Relay for Two Hand Control, Type IIIC
All units conform to BS EN 60204 Part 1 1993; EN 954-1; IEC 204-1; VDE 0113. Dimensions (mm) for all units: H 96.5, W 22.5, L 114,Contact Rating: 6A for all units. Colour supplied may vary from that shown.
Stop category 0
LED indication for supply voltage and safety circuits
Simultaneity check <0.5s
LED indication for supply voltage and safety circuits
Simultaneity check <0.5s
