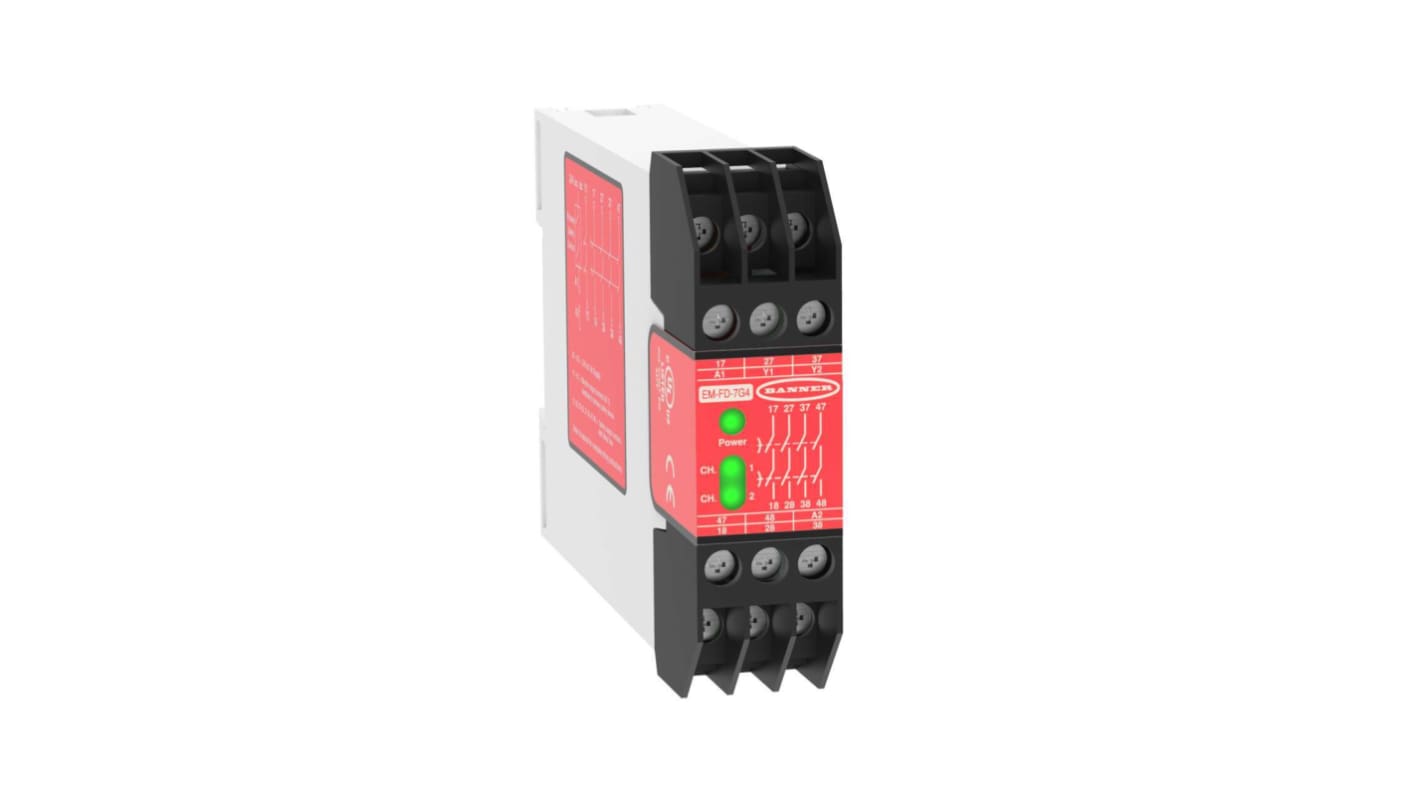

Banner EM-FD-7G4, 24V dc Safety Relay, 2 Safety Contacts, 1
- RS Stock No.:
- 293-284
- Mfr. Part No.:
- EM-FD-7G4
- Brand:
- Banner
Subtotal (1 unit)*
£323.04
(exc. VAT)
£387.65
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 08 February 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £323.04 |
*price indicative
- RS Stock No.:
- 293-284
- Mfr. Part No.:
- EM-FD-7G4
- Brand:
- Banner
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Banner | |
| Product Type | Safety Relay | |
| Safety Contacts | 2 | |
| Number of Auxiliary Contacts | 1 | |
| Mount Type | DIN Rail | |
| Reset Method | Automatic or Manual | |
| Series | EM-FD-7G4 | |
| Power Consumption | 2W | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | 0°C | |
| Switching DC Voltage | 250V dc | |
| Switching AC Voltage | 250V ac | |
| Standards/Approvals | IEC 61508 IEC 62061 | |
| Contact Current | 6A | |
| Maximum Operating Temperature | 50°C | |
| Width | 22.5mm | |
| Length | 118mm | |
| Height | 84mm | |
| Safety Category | 4 | |
| Hazardous Area Certification | No | |
| Coil Voltage | 24V dc | |
| Select all | ||
|---|---|---|
Brand Banner | ||
Product Type Safety Relay | ||
Safety Contacts 2 | ||
Number of Auxiliary Contacts 1 | ||
Mount Type DIN Rail | ||
Reset Method Automatic or Manual | ||
Series EM-FD-7G4 | ||
Power Consumption 2W | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Minimum Operating Temperature 0°C | ||
Switching DC Voltage 250V dc | ||
Switching AC Voltage 250V ac | ||
Standards/Approvals IEC 61508 IEC 62061 | ||
Contact Current 6A | ||
Maximum Operating Temperature 50°C | ||
Width 22.5mm | ||
Length 118mm | ||
Height 84mm | ||
Safety Category 4 | ||
Hazardous Area Certification No | ||
Coil Voltage 24V dc | ||
- COO (Country of Origin):
- US
The Banner Safety Extension Module is designed to enhance the safety capabilities of primary safety devices. This module provides an essential safety solution for applications that require a delayed output, making it perfect for environments where controlled shutdowns are necessary. Offering advanced relay contact functionality, it ensures that critical machinery can be safely managed during operational interruptions.
Offers visual indicators for realtime monitoring of input power and internal relay status
Housed in a compact polycarbonate casing for optimal space efficiency
Provides output circuit feedback for seamless integration with primary safety devices
