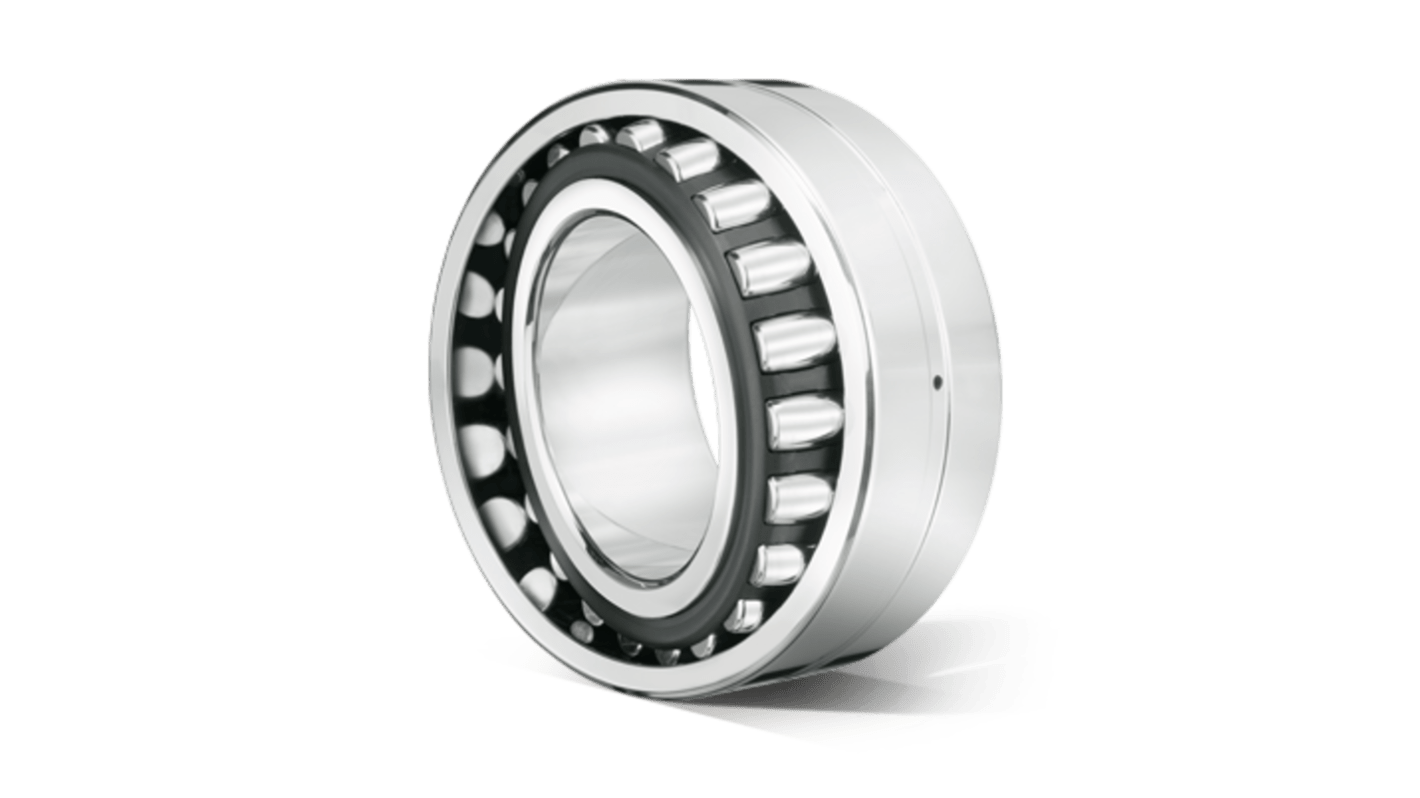

NTN 23040EAW33C3 Round 200 mm ID Spherical Roller Bearing, 310 mm OD
- RS Stock No.:
- 640-285
- Mfr. Part No.:
- 23040EAW33C3
- Brand:
- NTN
Subtotal (1 unit)*
£1,272.85
(exc. VAT)
£1,527.42
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 24 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,272.85 |
*price indicative
- RS Stock No.:
- 640-285
- Mfr. Part No.:
- 23040EAW33C3
- Brand:
- NTN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NTN | |
| Product Type | Spherical Roller Bearing | |
| Inside Diameter | 200mm | |
| Race Width | 82mm | |
| Bore Type | Round | |
| Cage Material | Steel | |
| Bearing Material | Through Hardened Steel | |
| Outside Diameter | 310mm | |
| Internal Clearance | C3 | |
| Static Load Rating | 1790.00kN | |
| Number of Rows | 2 | |
| Maximum Speed - Grease | 1400rpm | |
| Limiting Speed | 2300rpm | |
| Maximum Speed - Oil | 1800rpm | |
| Series | 230 | |
| Standards/Approvals | No | |
| End Type | Open | |
| Dynamic Load Rating | 1310.00kN | |
| Select all | ||
|---|---|---|
Brand NTN | ||
Product Type Spherical Roller Bearing | ||
Inside Diameter 200mm | ||
Race Width 82mm | ||
Bore Type Round | ||
Cage Material Steel | ||
Bearing Material Through Hardened Steel | ||
Outside Diameter 310mm | ||
Internal Clearance C3 | ||
Static Load Rating 1790.00kN | ||
Number of Rows 2 | ||
Maximum Speed - Grease 1400rpm | ||
Limiting Speed 2300rpm | ||
Maximum Speed - Oil 1800rpm | ||
Series 230 | ||
Standards/Approvals No | ||
End Type Open | ||
Dynamic Load Rating 1310.00kN | ||
Non Compliant
- COO (Country of Origin):
- IT
The NTN Spherical Roller Bearing is designed to withstand substantial loads and misalignments, making it ideal for demanding operating conditions. This type of bearing excels in environments such as crushers, vibrating screens, and heavy handling applications. With NTN's ULTAGE design, it delivers exceptional durability and extended service life as a standard feature, offering unparalleled endurance and reliability in harsh conditions.
High impacts resistance
High vibrations resistance
