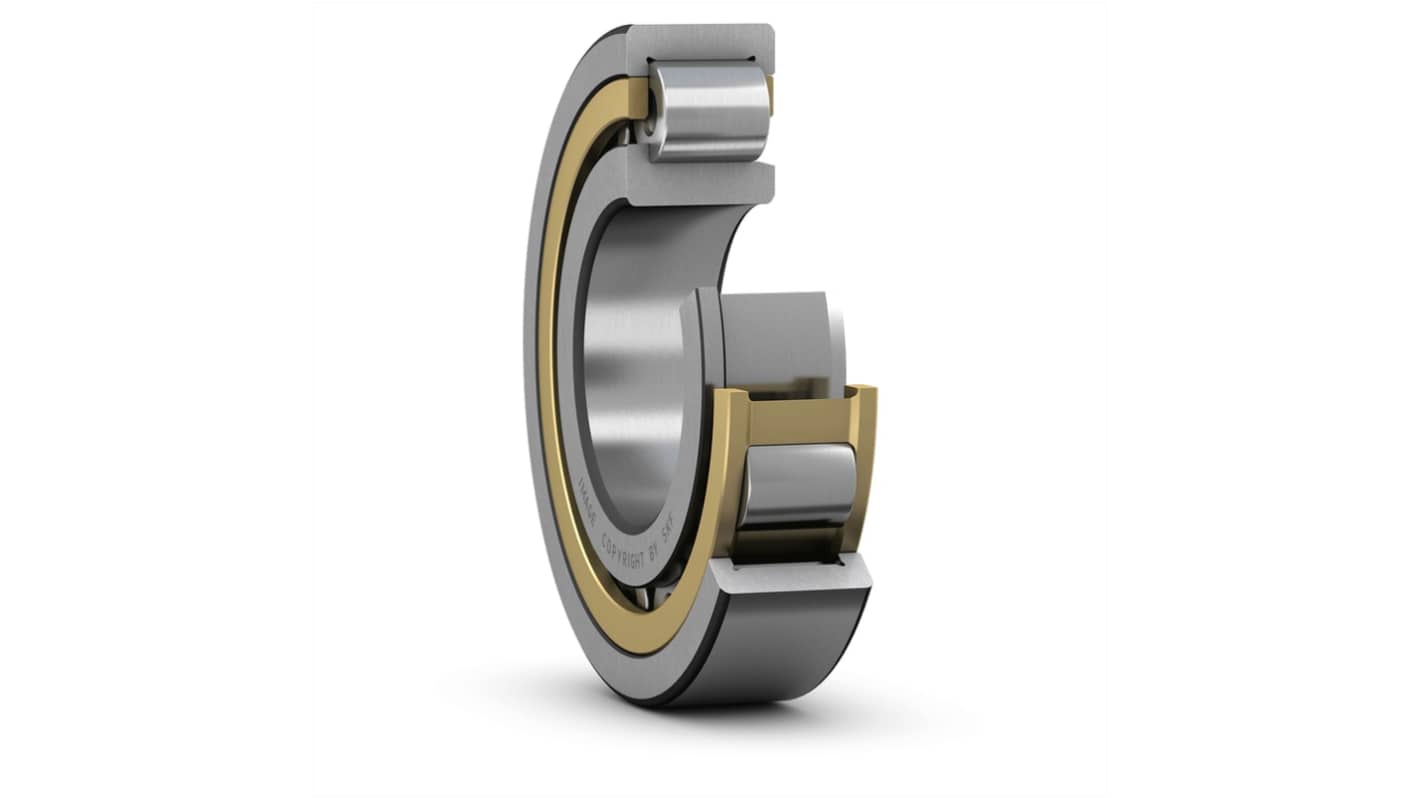

SKF NJ 214 ECJ/C3 70 mm ID Cylindrical Roller Bearing, 125 mm OD
- RS Stock No.:
- 586-959
- Mfr. Part No.:
- NJ 214 ECJ/C3
- Brand:
- SKF
Subtotal (1 pack of 2 units)*
£234.23
(exc. VAT)
£281.08
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £234.23 | £117.115 |
*price indicative
- RS Stock No.:
- 586-959
- Mfr. Part No.:
- NJ 214 ECJ/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 70mm | |
| Race Width | 24mm | |
| Bore Type | Parallel | |
| Cage Material | Sheet Metal | |
| Roller Material | Bearing Steel | |
| Standards/Approvals | RoHS Compliance | |
| Series | NJ | |
| End Type | Open | |
| Bearing Material | Bearing Steel | |
| Limiting Speed | 6300rpm | |
| Static Load Rating | 137kN | |
| Outside Diameter | 125mm | |
| Dynamic Load Rating | 137kN | |
| Number of Rows | 1 | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 70mm | ||
Race Width 24mm | ||
Bore Type Parallel | ||
Cage Material Sheet Metal | ||
Roller Material Bearing Steel | ||
Standards/Approvals RoHS Compliance | ||
Series NJ | ||
End Type Open | ||
Bearing Material Bearing Steel | ||
Limiting Speed 6300rpm | ||
Static Load Rating 137kN | ||
Outside Diameter 125mm | ||
Dynamic Load Rating 137kN | ||
Number of Rows 1 | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design
