SKF NU 214 ECP/C3 70 mm ID Cylindrical Roller Bearing, 125 mm OD
- RS Stock No.:
- 586-500
- Mfr. Part No.:
- NU 214 ECP/C3
- Brand:
- SKF
Subtotal (1 pack of 2 units)*
£181.97
(exc. VAT)
£218.36
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £181.97 | £90.985 |
*price indicative
- RS Stock No.:
- 586-500
- Mfr. Part No.:
- NU 214 ECP/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 70mm | |
| Race Width | 24mm | |
| Bore Type | Parallel | |
| Roller Material | Bearing Steel | |
| Cage Material | Non-Metallic | |
| Bearing Material | Steel | |
| Number of Rows | 1 | |
| Limiting Speed | 6300rpm | |
| Series | NU | |
| Static Load Rating | 137kN | |
| Outside Diameter | 125mm | |
| Dynamic Load Rating | 137kN | |
| End Type | Open | |
| Standards/Approvals | RoHS Compliance | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 70mm | ||
Race Width 24mm | ||
Bore Type Parallel | ||
Roller Material Bearing Steel | ||
Cage Material Non-Metallic | ||
Bearing Material Steel | ||
Number of Rows 1 | ||
Limiting Speed 6300rpm | ||
Series NU | ||
Static Load Rating 137kN | ||
Outside Diameter 125mm | ||
Dynamic Load Rating 137kN | ||
End Type Open | ||
Standards/Approvals RoHS Compliance | ||

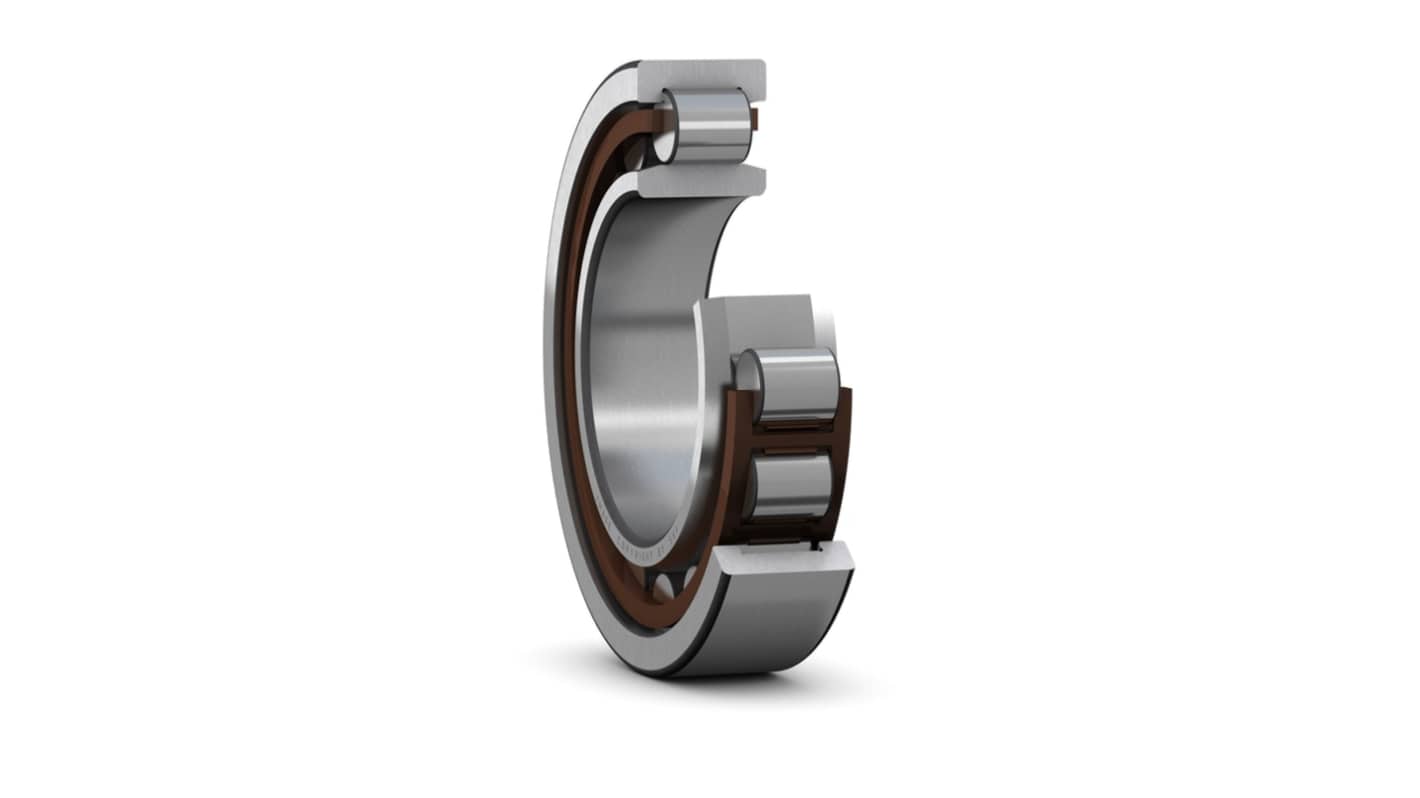

The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
