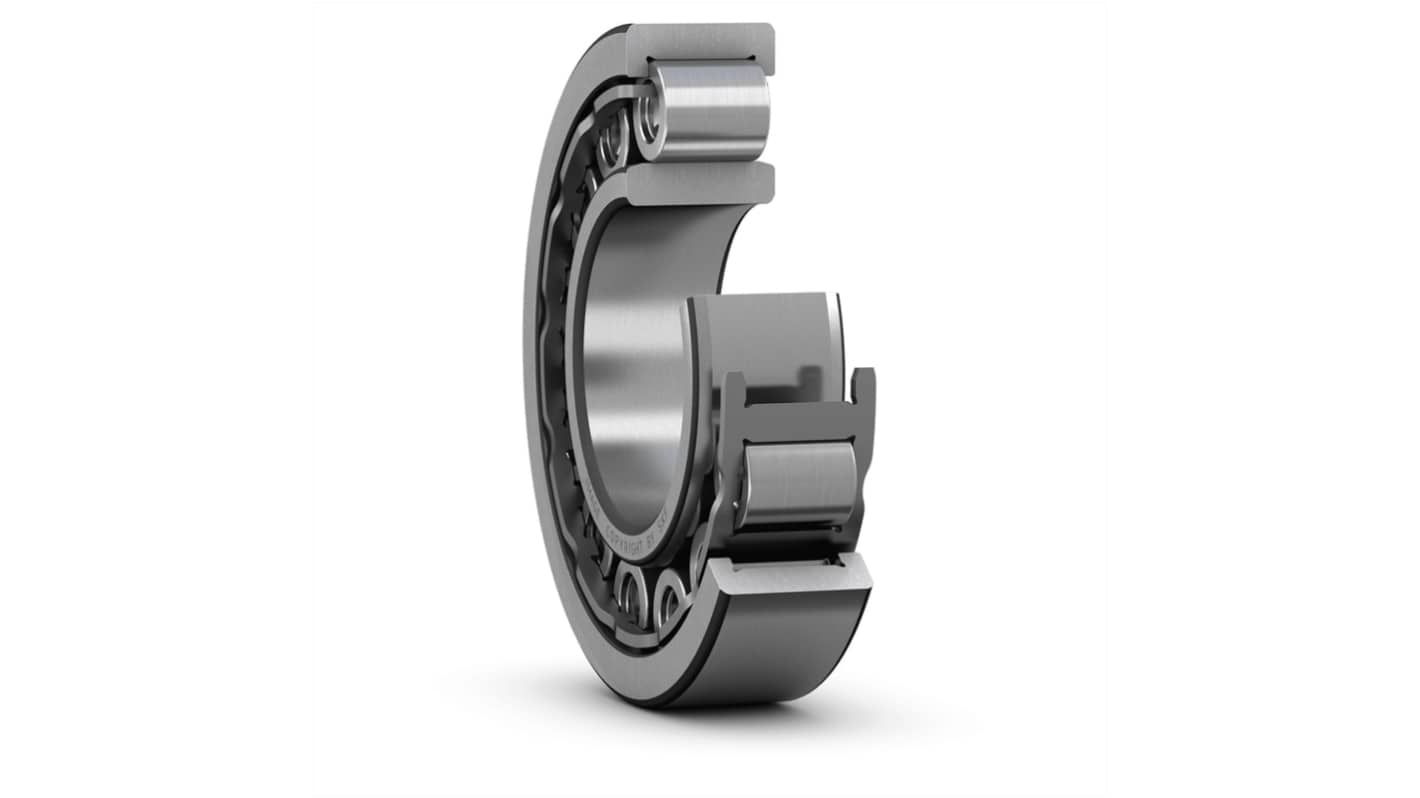

SKF NU 214 ECJ 70 mm ID Cylindrical Roller Bearing, 125 mm OD
- RS Stock No.:
- 586-293
- Mfr. Part No.:
- NU 214 ECJ
- Brand:
- SKF
Subtotal (1 pack of 2 units)*
£192.26
(exc. VAT)
£230.71
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £192.26 | £96.13 |
*price indicative
- RS Stock No.:
- 586-293
- Mfr. Part No.:
- NU 214 ECJ
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 70 mm | |
| Race Width | 24mm | |
| Bore Type | Parallel | |
| Cage Material | Sheet Metal | |
| Roller Material | Bearing Steel | |
| Static Load Rating | 137kN | |
| Series | NU | |
| Outside Diameter | 125 mm | |
| Dynamic Load Rating | 137kN | |
| End Type | Open | |
| Standards/Approvals | RoHS Compliance | |
| Limiting Speed | 6300rpm | |
| Number of Rows | 1 | |
| Bearing Material | Steel | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 70 mm | ||
Race Width 24mm | ||
Bore Type Parallel | ||
Cage Material Sheet Metal | ||
Roller Material Bearing Steel | ||
Static Load Rating 137kN | ||
Series NU | ||
Outside Diameter 125 mm | ||
Dynamic Load Rating 137kN | ||
End Type Open | ||
Standards/Approvals RoHS Compliance | ||
Limiting Speed 6300rpm | ||
Number of Rows 1 | ||
Bearing Material Steel | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
