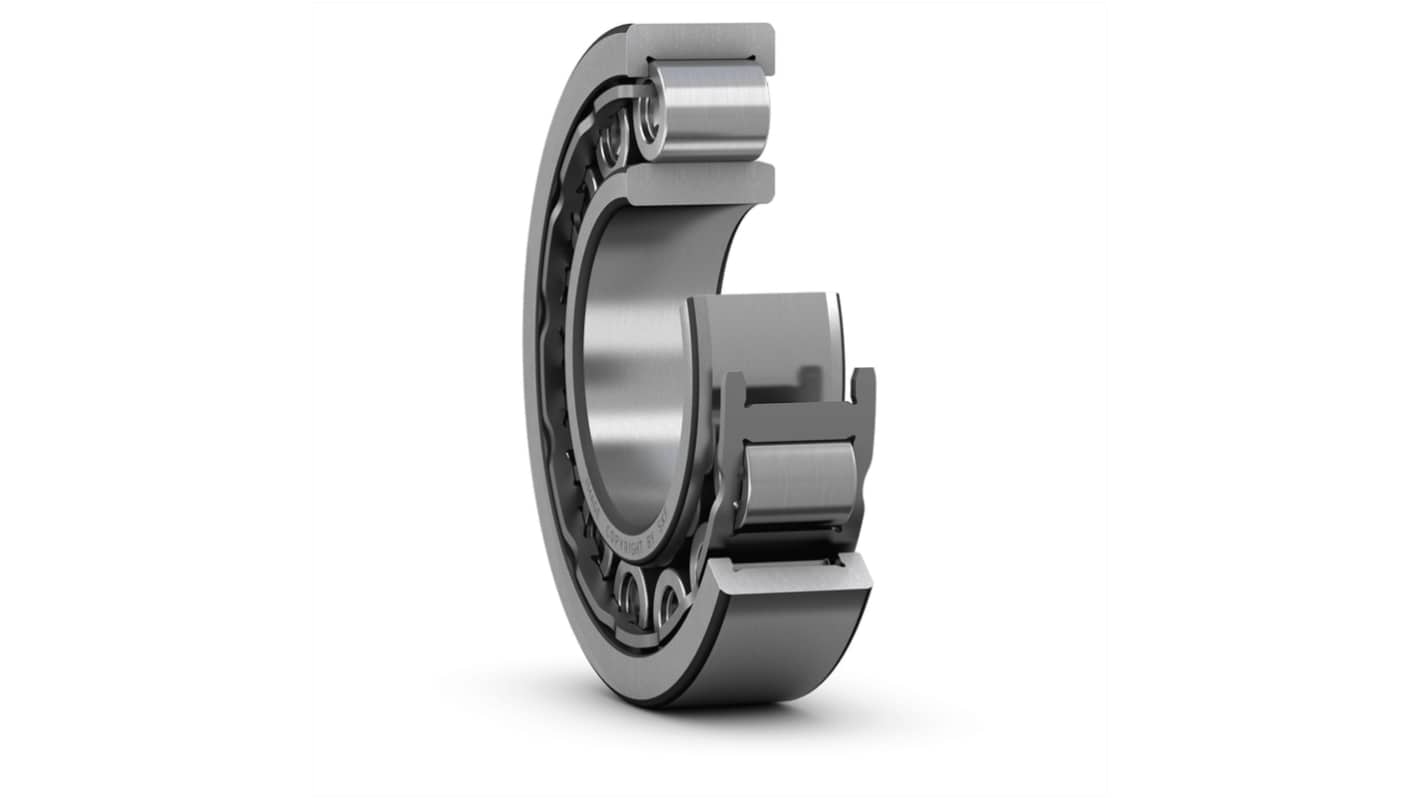

SKF NU 2214 ECJ 70 mm ID Cylindrical Roller Bearing, 125 mm OD
- RS Stock No.:
- 586-893
- Mfr. Part No.:
- NU 2214 ECJ
- Brand:
- SKF
Subtotal (1 pack of 2 units)*
£334.31
(exc. VAT)
£401.17
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £334.31 | £167.155 |
*price indicative
- RS Stock No.:
- 586-893
- Mfr. Part No.:
- NU 2214 ECJ
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 70mm | |
| Race Width | 31mm | |
| Bore Type | Parallel | |
| Roller Material | Bearing Steel | |
| Cage Material | Sheet Metal | |
| Standards/Approvals | RoHS Compliance | |
| Series | NU | |
| End Type | Open | |
| Dynamic Load Rating | 180kN | |
| Outside Diameter | 125mm | |
| Static Load Rating | 193kN | |
| Number of Rows | 1 | |
| Limiting Speed | 6300rpm | |
| Bearing Material | Steel | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 70mm | ||
Race Width 31mm | ||
Bore Type Parallel | ||
Roller Material Bearing Steel | ||
Cage Material Sheet Metal | ||
Standards/Approvals RoHS Compliance | ||
Series NU | ||
End Type Open | ||
Dynamic Load Rating 180kN | ||
Outside Diameter 125mm | ||
Static Load Rating 193kN | ||
Number of Rows 1 | ||
Limiting Speed 6300rpm | ||
Bearing Material Steel | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Accommodate axial displacement in both directions
Separable design
