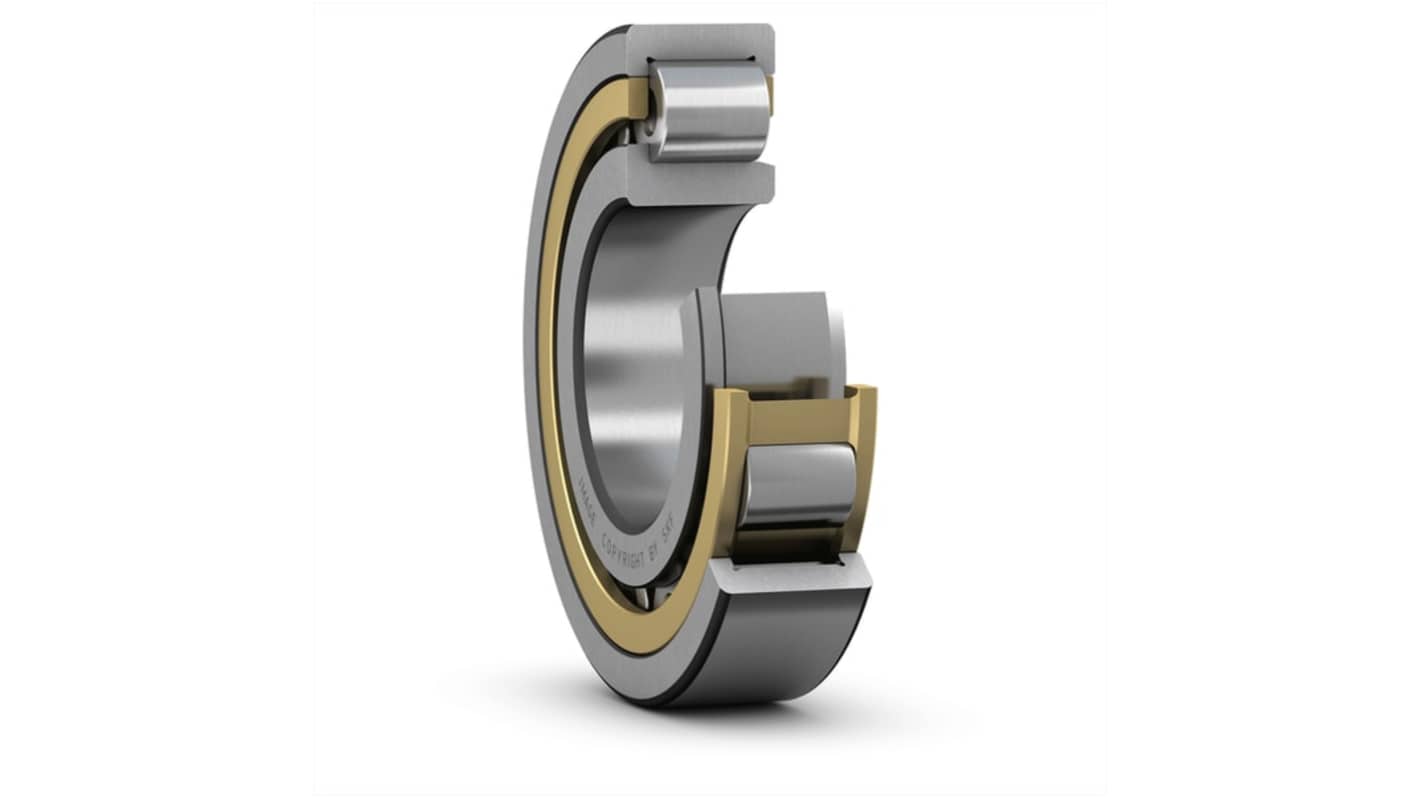

SKF NJ 1016 ECML/C3 80 mm ID Cylindrical Roller Bearing, 125 mm OD
- RS Stock No.:
- 464-430
- Mfr. Part No.:
- NJ 1016 ECML/C3
- Brand:
- SKF
Subtotal (1 unit)*
£609.27
(exc. VAT)
£731.12
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £609.27 |
*price indicative
- RS Stock No.:
- 464-430
- Mfr. Part No.:
- NJ 1016 ECML/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 80mm | |
| Race Width | 22mm | |
| Bore Type | Cylindrical | |
| Cage Material | Machined Brass | |
| Number of Rows | 1 | |
| Standards/Approvals | No | |
| Dynamic Load Rating | 112kN | |
| Limiting Speed | 9500rpm | |
| Series | NJ 1016 | |
| Outside Diameter | 125mm | |
| Static Load Rating | 127kN | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 80mm | ||
Race Width 22mm | ||
Bore Type Cylindrical | ||
Cage Material Machined Brass | ||
Number of Rows 1 | ||
Standards/Approvals No | ||
Dynamic Load Rating 112kN | ||
Limiting Speed 9500rpm | ||
Series NJ 1016 | ||
Outside Diameter 125mm | ||
Static Load Rating 127kN | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction.
High radial load carrying capacity
Low friction
Long service life
