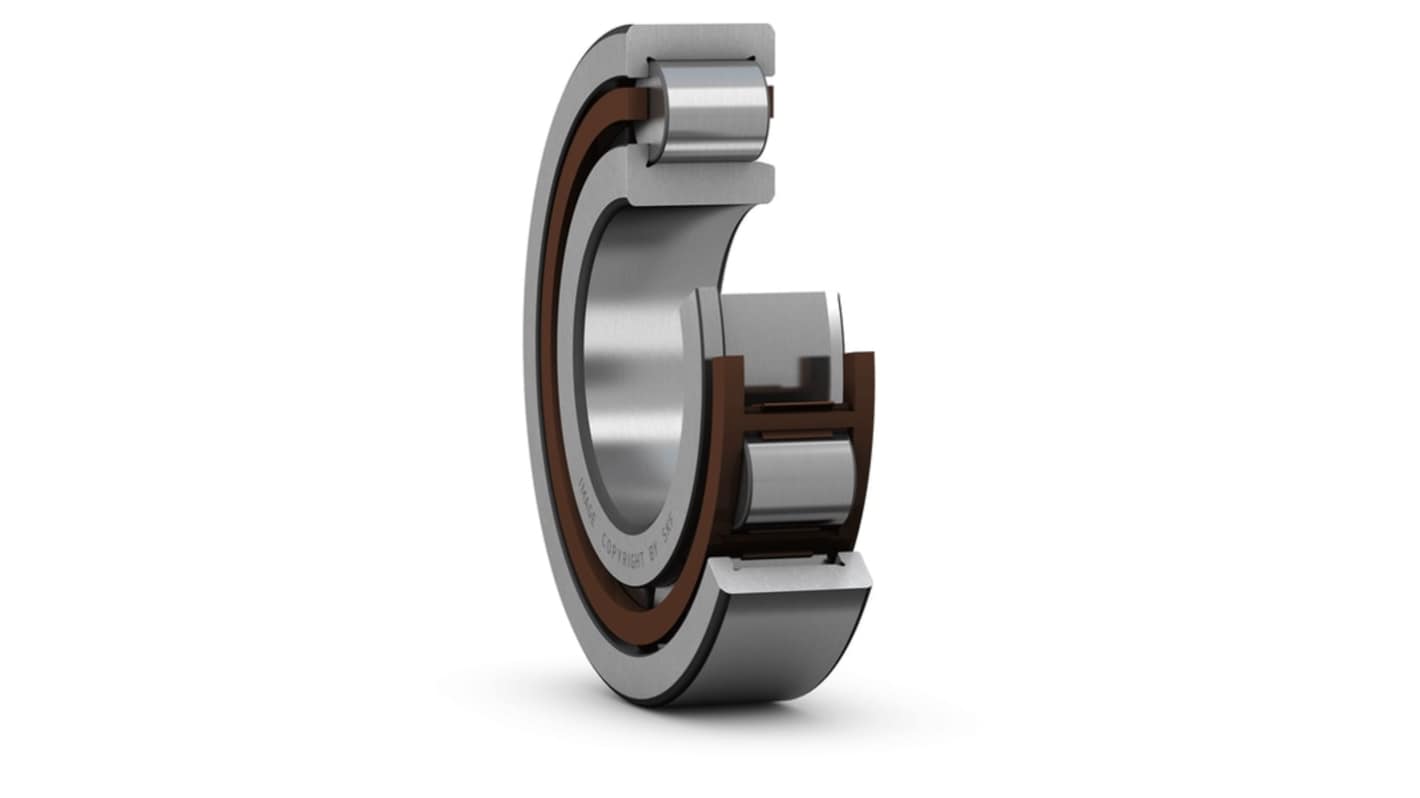

SKF NJ 316 ECP/C3 80 mm ID Cylindrical Roller Bearing, 170 mm OD
- RS Stock No.:
- 464-199
- Mfr. Part No.:
- NJ 316 ECP/C3
- Brand:
- SKF
Subtotal (1 unit)*
£310.92
(exc. VAT)
£373.10
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £310.92 |
*price indicative
- RS Stock No.:
- 464-199
- Mfr. Part No.:
- NJ 316 ECP/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 80mm | |
| Race Width | 39mm | |
| Bore Type | Cylindrical | |
| Cage Material | Non-Metallic | |
| Series | NJ | |
| Standards/Approvals | RoHS | |
| Number of Rows | 1 | |
| Static Load Rating | 290kN | |
| Internal Clearance | C3 | |
| Outside Diameter | 170mm | |
| Dynamic Load Rating | 300kN | |
| Limiting Speed | 5000rpm | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 80mm | ||
Race Width 39mm | ||
Bore Type Cylindrical | ||
Cage Material Non-Metallic | ||
Series NJ | ||
Standards/Approvals RoHS | ||
Number of Rows 1 | ||
Static Load Rating 290kN | ||
Internal Clearance C3 | ||
Outside Diameter 170mm | ||
Dynamic Load Rating 300kN | ||
Limiting Speed 5000rpm | ||
- COO (Country of Origin):
- DE
The SKF Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.
High radial load carrying capacity
Low friction
Long service life
Locate the shaft axially in one direction
Separable design
