SKF NU 316 ECP/C3 80mm I.D Cylindrical Cylindrical Roller Bearing, 170mm O.D
- RS Stock No.:
- 209-2134
- Mfr. Part No.:
- NU 316 ECP/C3
- Brand:
- SKF
Subtotal (1 unit)*
£255.62
(exc. VAT)
£306.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 999,999,998 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £255.62 |
*price indicative
- RS Stock No.:
- 209-2134
- Mfr. Part No.:
- NU 316 ECP/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 80mm | |
Outside Diameter | 170mm | |
Roller Bearing Type | Cylindrical | |
Race Width | 39mm | |
Bore Type | Parallel | |
Static Load Rating | 290kN | |
Cage Material | Non-metallic | |
Number of Rows | 1 | |
Dynamic Load Rating | 300kN | |
Limiting Speed | 5000rpm | |
Reference Speed | 4300rpm | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 80mm | ||
Outside Diameter 170mm | ||
Roller Bearing Type Cylindrical | ||
Race Width 39mm | ||
Bore Type Parallel | ||
Static Load Rating 290kN | ||
Cage Material Non-metallic | ||
Number of Rows 1 | ||
Dynamic Load Rating 300kN | ||
Limiting Speed 5000rpm | ||
Reference Speed 4300rpm | ||
- COO (Country of Origin):
- DE

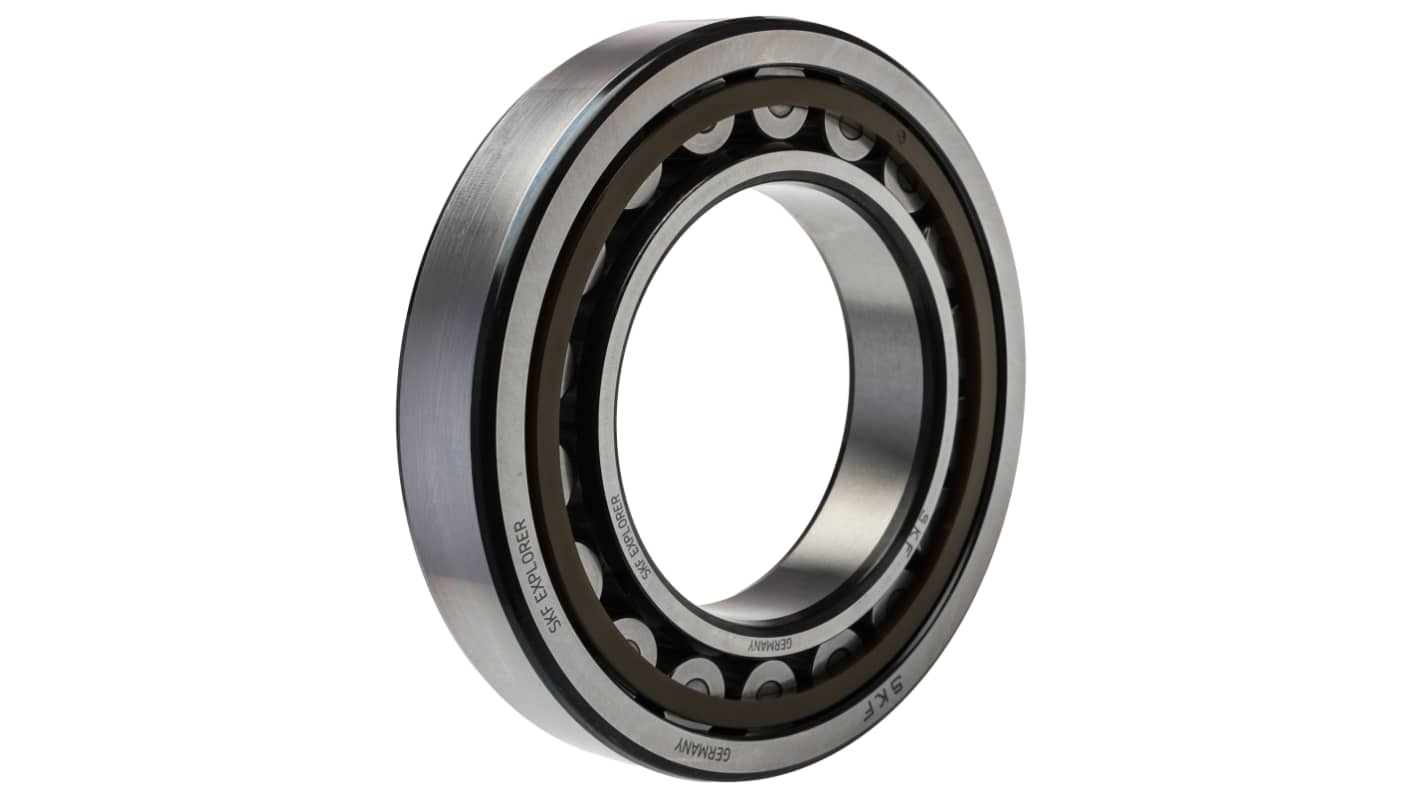

SKF Cylindrical Roller Bearing, 80mm Inside Diameter, 39mm Race Width - NU 316 ECP/C3
This cylindrical roller bearing offers exceptional performance in various industrial applications. Featuring an inside diameter of 80mm and an outside diameter of 170mm, it is designed for robust functionality. With a race width of 39mm, this bearing is adept at handling high loads while maintaining operational efficiency.
Features & Benefits
• Single row configuration enhances load distribution
• Static load rating of 290 kN ensures reliability under static conditions
• High reference speed of 4300 r/min for high-speed usage
• Limiting speed of 5000 r/min facilitates versatile operation
• Static load rating of 290 kN ensures reliability under static conditions
• High reference speed of 4300 r/min for high-speed usage
• Limiting speed of 5000 r/min facilitates versatile operation
Applications
• Used in machinery requiring high load-bearing capacity
• Utilised in electric motors for improved performance
• Applied in conveyor systems for optimal operation
• Effective in various mechanical equipment and systems
• Utilised in electric motors for improved performance
• Applied in conveyor systems for optimal operation
• Effective in various mechanical equipment and systems
What type of clearance does this bearing have?
It features radial internal clearance, which accommodates dimensional variations during operation.
How does the non-metallic cage contribute to its performance?
The non-metallic cage minimises friction, enhancing efficiency and extending the bearing's service life under high-speed conditions.
What temperature limits should I consider for effective use?
This bearing is designed for a wide temperature range, accommodating various operational environments without compromising performance.
What is the significance of the dynamic load rating?
The dynamic load rating of 300 kN indicates the maximum load it can support while in motion, making it suitable for heavy-duty applications.
How can I ensure this bearing is suited for my application?
Consider its load ratings, speed capabilities, and compatibility with other components in your system for optimal integration.
