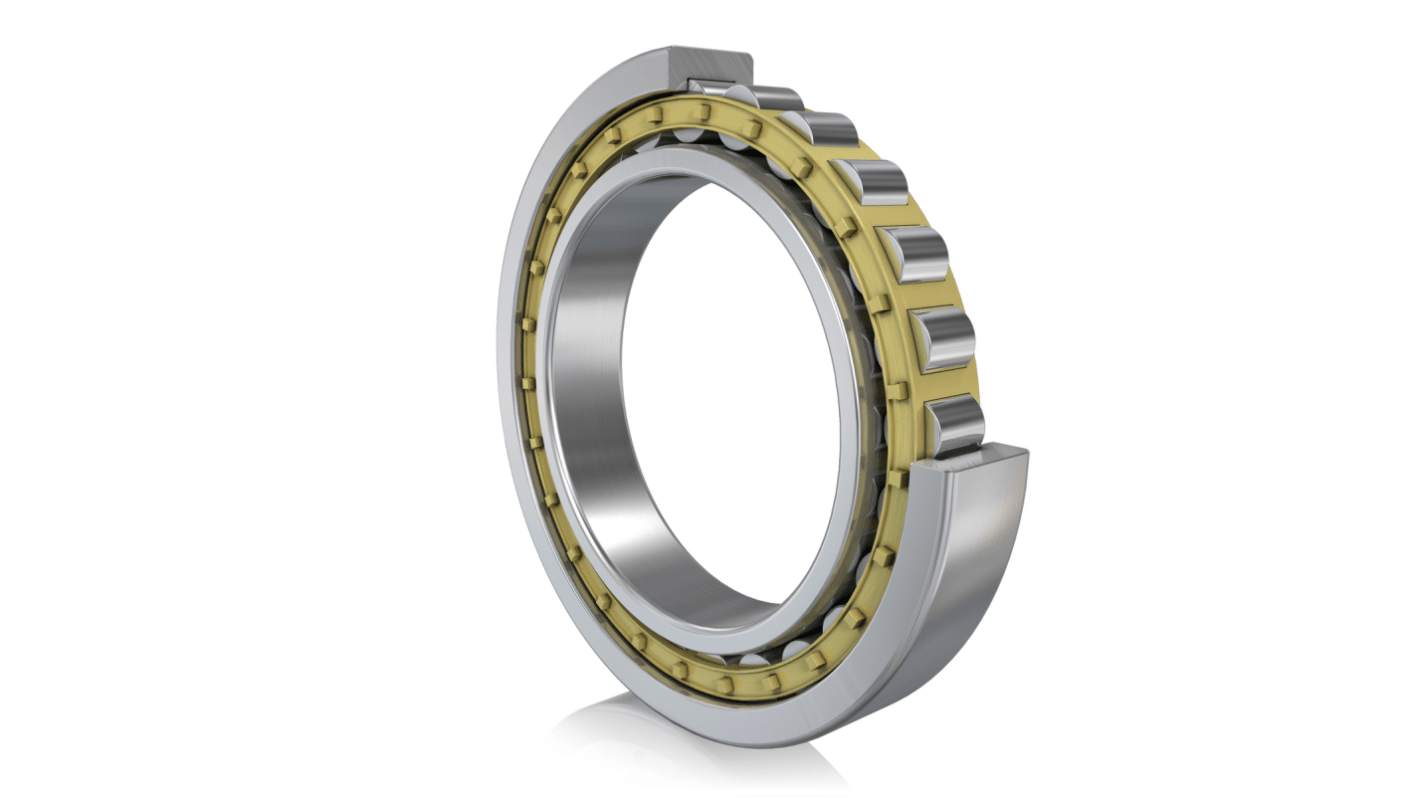

FAG NU216-E-XL-M1-C3 80 mm I.D Cylindrical Roller Bearing, 140 mm O.D
- RS Stock No.:
- 311-160
- Mfr. Part No.:
- NU216-E-XL-M1-C3
- Brand:
- FAG
Subtotal (1 unit)*
£269.99
(exc. VAT)
£323.99
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £269.99 |
*price indicative
- RS Stock No.:
- 311-160
- Mfr. Part No.:
- NU216-E-XL-M1-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Cylindrical Roller Bearing | |
| Inside Diameter | 80 mm | |
| Race Width | 26mm | |
| Cage Material | Two Piece Brass Cage Roller Guided | |
| Number of Rows | 1 | |
| Internal Clearance | CN | |
| Static Load Rating | 168000N | |
| Outside Diameter | 140 mm | |
| Dynamic Load Rating | 166kN | |
| Standards/Approvals | No | |
| Limiting Speed | 9000rpm | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Cylindrical Roller Bearing | ||
Inside Diameter 80 mm | ||
Race Width 26mm | ||
Cage Material Two Piece Brass Cage Roller Guided | ||
Number of Rows 1 | ||
Internal Clearance CN | ||
Static Load Rating 168000N | ||
Outside Diameter 140 mm | ||
Dynamic Load Rating 166kN | ||
Standards/Approvals No | ||
Limiting Speed 9000rpm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- RO
The FAG Cylindrical Roller Bearing is a single row, non locating bearing designed for high radial load capacity. It features a cage to retain and guide the rollers, ensuring smooth operation. This bearing has two ribs on the outer ring and no ribs on the inner ring, providing a smooth surface for the inner ring to move.
Radial load
Grease lubrication
Oil lubrication
Not sealed
