SKF NA 6916 80 mm ID Needle Roller Bearing Complete, 110 mm OD
- RS Stock No.:
- 464-425
- Mfr. Part No.:
- NA 6916
- Brand:
- SKF
Subtotal (1 unit)*
£361.57
(exc. VAT)
£433.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £361.57 |
*price indicative
- RS Stock No.:
- 464-425
- Mfr. Part No.:
- NA 6916
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Needle Roller Bearing | |
| Inside Diameter | 80 mm | |
| Race Width | 54mm | |
| Cage Material | Sheet Steel | |
| Bearing Material | Bearing Steel | |
| Standards/Approvals | RoHS | |
| Limiting Speed | 5000rpm | |
| Number of Rows | 2 | |
| Static Load Rating | 315kN | |
| Series | NA 6916 | |
| Internal Clearance | CN | |
| Outside Diameter | 110 mm | |
| Dynamic Load Rating | 156kN | |
| Bearing Type | Complete | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Needle Roller Bearing | ||
Inside Diameter 80 mm | ||
Race Width 54mm | ||
Cage Material Sheet Steel | ||
Bearing Material Bearing Steel | ||
Standards/Approvals RoHS | ||
Limiting Speed 5000rpm | ||
Number of Rows 2 | ||
Static Load Rating 315kN | ||
Series NA 6916 | ||
Internal Clearance CN | ||
Outside Diameter 110 mm | ||
Dynamic Load Rating 156kN | ||
Bearing Type Complete | ||
- COO (Country of Origin):
- SK

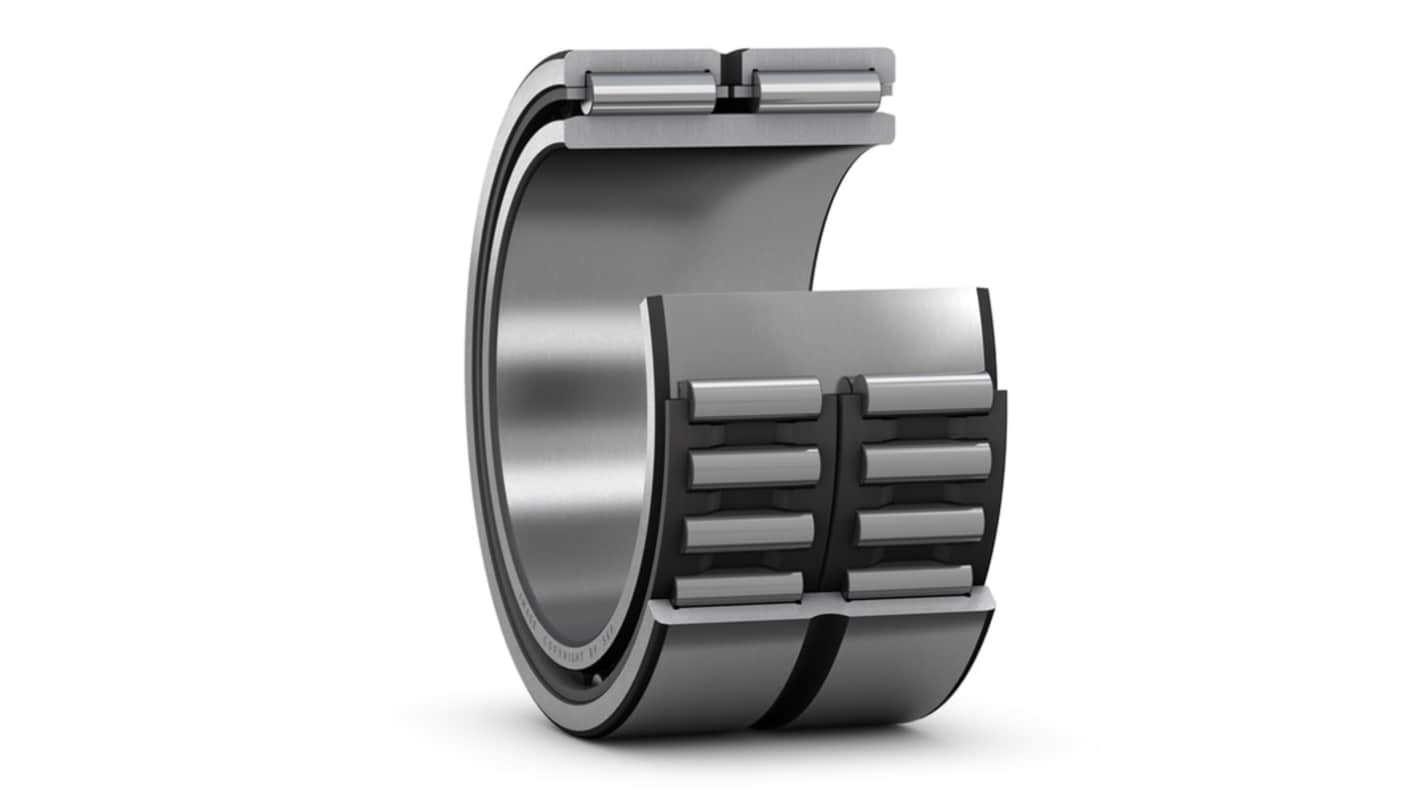

The SKF Double row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes flanges to guide the roller and cage assemblies and has features to facilitate relubrication.
High radial load carrying capacity
High stiffness
Accommodate axial displacement in both directions
