SKF NA 69/32 32 mm ID Roller Bearing Complete, 52 mm OD
- RS Stock No.:
- 465-083
- Mfr. Part No.:
- NA 69/32
- Brand:
- SKF
Subtotal (1 unit)*
£89.75
(exc. VAT)
£107.70
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 28 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £89.75 |
*price indicative
- RS Stock No.:
- 465-083
- Mfr. Part No.:
- NA 69/32
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 32mm | |
| Race Width | 36mm | |
| Cage Material | Sheet Steel | |
| Limiting Speed | 11000rpm | |
| Bearing Material | Bearing Steel | |
| Number of Rows | 2 | |
| Static Load Rating | 90kN | |
| Internal Clearance | CN | |
| Outside Diameter | 52mm | |
| Dynamic Load Rating | 55kN | |
| Standards/Approvals | RoHS | |
| Series | NA 69/32 | |
| Bearing Type | Complete | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 32mm | ||
Race Width 36mm | ||
Cage Material Sheet Steel | ||
Limiting Speed 11000rpm | ||
Bearing Material Bearing Steel | ||
Number of Rows 2 | ||
Static Load Rating 90kN | ||
Internal Clearance CN | ||
Outside Diameter 52mm | ||
Dynamic Load Rating 55kN | ||
Standards/Approvals RoHS | ||
Series NA 69/32 | ||
Bearing Type Complete | ||
- COO (Country of Origin):
- SK

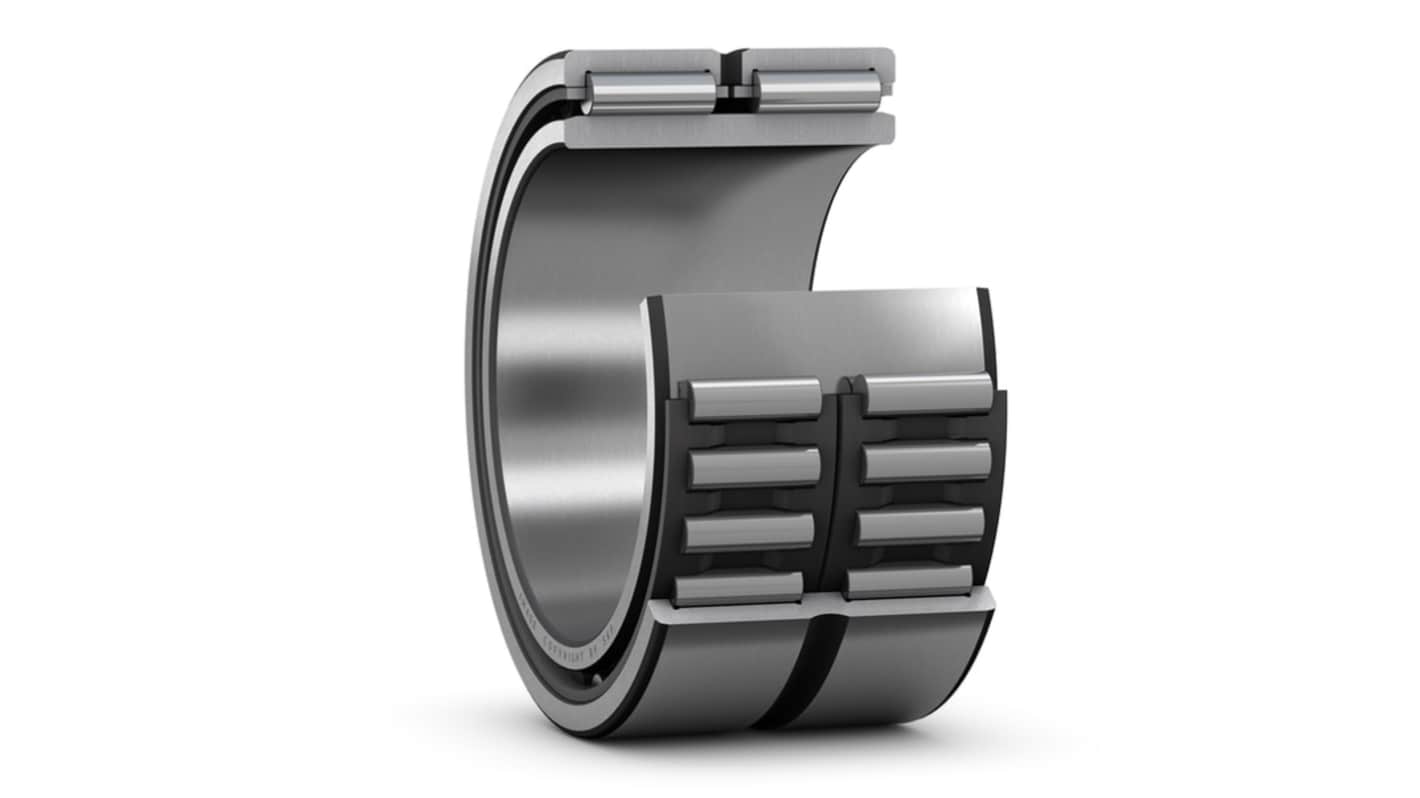

The SKF Double row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes flanges to guide the roller and cage assemblies and has features to facilitate relubrication.
High radial load carrying capacity
High stiffness
Accommodate axial displacement in both directions
