SKF NA 4903.2RS 17 mm ID Roller Bearing Complete, 30 mm OD
- RS Stock No.:
- 464-420
- Mfr. Part No.:
- NA 4903.2RS
- Brand:
- SKF
Subtotal (1 unit)*
£40.82
(exc. VAT)
£48.98
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £40.82 |
*price indicative
- RS Stock No.:
- 464-420
- Mfr. Part No.:
- NA 4903.2RS
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 17mm | |
| Race Width | 14mm | |
| Cage Material | Sheet Steel | |
| Bearing Material | Bearing Steel | |
| Static Load Rating | 12.5kN | |
| Limiting Speed | 9000rpm | |
| Number of Rows | 1 | |
| Dynamic Load Rating | 9.52kN | |
| Internal Clearance | CN | |
| Standards/Approvals | RoHS | |
| Series | NA 4903.2RS | |
| Outside Diameter | 30mm | |
| Bearing Type | Complete | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 17mm | ||
Race Width 14mm | ||
Cage Material Sheet Steel | ||
Bearing Material Bearing Steel | ||
Static Load Rating 12.5kN | ||
Limiting Speed 9000rpm | ||
Number of Rows 1 | ||
Dynamic Load Rating 9.52kN | ||
Internal Clearance CN | ||
Standards/Approvals RoHS | ||
Series NA 4903.2RS | ||
Outside Diameter 30mm | ||
Bearing Type Complete | ||
- COO (Country of Origin):
- SK

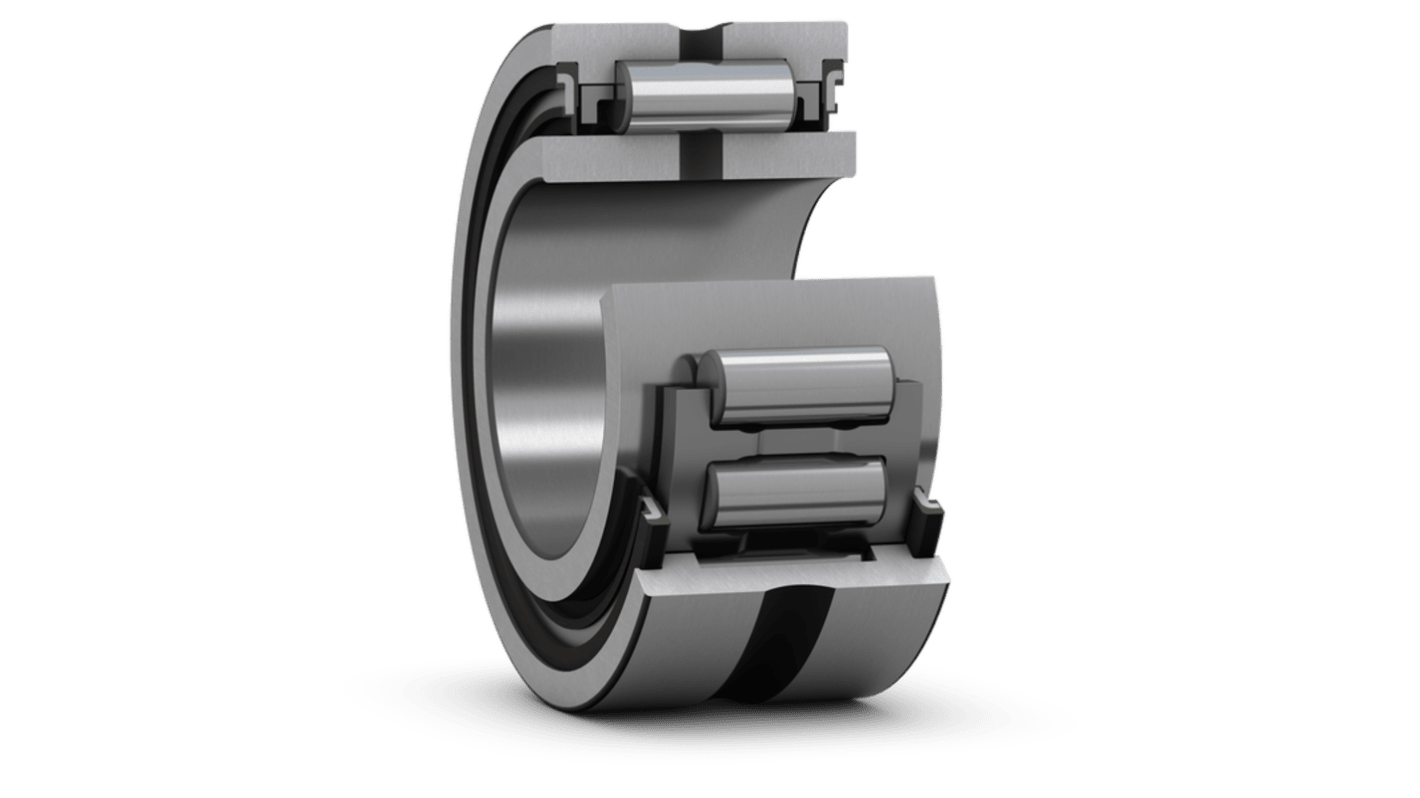

The SKF Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.
High radial load carrying capacity
High stiffness
Accommodate axial displacement in both directions
