SKF NA 4915 75 mm ID Roller Bearing Complete, 105 mm OD
- RS Stock No.:
- 464-422
- Mfr. Part No.:
- NA 4915
- Brand:
- SKF
Subtotal (1 unit)*
£191.85
(exc. VAT)
£230.22
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £191.85 |
*price indicative
- RS Stock No.:
- 464-422
- Mfr. Part No.:
- NA 4915
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Roller Bearing | |
| Inside Diameter | 75mm | |
| Race Width | 30mm | |
| Cage Material | Sheet Steel | |
| Number of Rows | 1 | |
| Bearing Material | Bearing Steel | |
| Series | NA 4915 | |
| Standards/Approvals | RoHS | |
| Dynamic Load Rating | 98kN | |
| Outside Diameter | 105mm | |
| Internal Clearance | CN | |
| Static Load Rating | 170kN | |
| Limiting Speed | 5300rpm | |
| Bearing Type | Complete | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Roller Bearing | ||
Inside Diameter 75mm | ||
Race Width 30mm | ||
Cage Material Sheet Steel | ||
Number of Rows 1 | ||
Bearing Material Bearing Steel | ||
Series NA 4915 | ||
Standards/Approvals RoHS | ||
Dynamic Load Rating 98kN | ||
Outside Diameter 105mm | ||
Internal Clearance CN | ||
Static Load Rating 170kN | ||
Limiting Speed 5300rpm | ||
Bearing Type Complete | ||

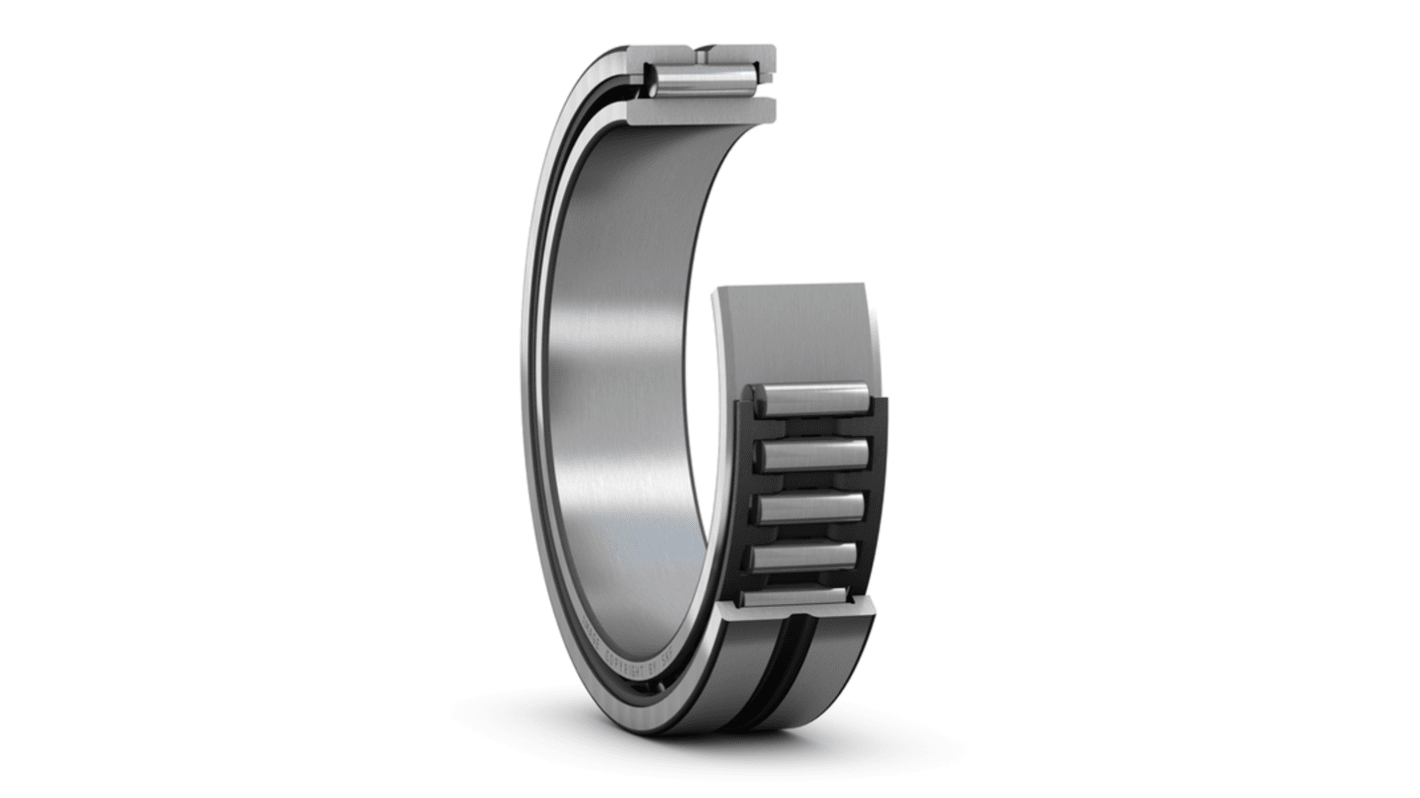

The SKF Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.
High radial load carrying capacity
High stiffness
Accommodate axial displacement in both directions
