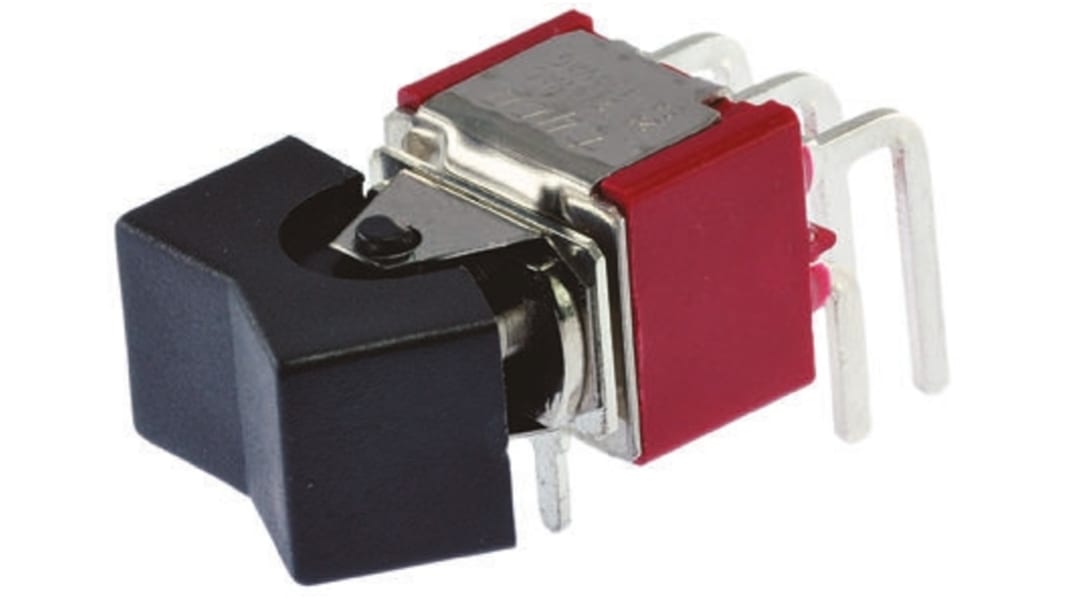

TE Connectivity DPDT, On-(On) Rocker Switch PCB
- RS Stock No.:
- 710-9384
- Mfr. Part No.:
- 1571987-2
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 unit)*
£6.17
(exc. VAT)
£7.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 89 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £6.17 |
| 10 - 24 | £5.87 |
| 25 - 49 | £5.50 |
| 50 - 99 | £4.95 |
| 100 + | £4.63 |
*price indicative
- RS Stock No.:
- 710-9384
- Mfr. Part No.:
- 1571987-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Contact Configuration | DPDT | |
| Switch Operation | On-(On) | |
| Panel Cut Out Width | 10.62mm | |
| Panel Cut Out Height | 17.96mm | |
| Contact Current Rating | 5 A | |
| Illuminated | No | |
| Actuator Colour | Black | |
| Mounting Type | PCB | |
| Actuator Shape | Rectangular | |
| AC Voltage Rating | 120 V, 250V | |
| DC Voltage Rating | 28V | |
| Panel Cut Out Size | 17.96 x 10.62mm | |
| Contact Material | Silver | |
| Case Material | Thermoplastic | |
| Minimum Operating Temperature | -30°C | |
| Contact Resistance | 10mΩ | |
| Operating Temperature Range | -30 → +85°C | |
| Maximum Operating Temperature | +85°C | |
| Mechanical Life | 400000Operations | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Contact Configuration DPDT | ||
Switch Operation On-(On) | ||
Panel Cut Out Width 10.62mm | ||
Panel Cut Out Height 17.96mm | ||
Contact Current Rating 5 A | ||
Illuminated No | ||
Actuator Colour Black | ||
Mounting Type PCB | ||
Actuator Shape Rectangular | ||
AC Voltage Rating 120 V, 250V | ||
DC Voltage Rating 28V | ||
Panel Cut Out Size 17.96 x 10.62mm | ||
Contact Material Silver | ||
Case Material Thermoplastic | ||
Minimum Operating Temperature -30°C | ||
Contact Resistance 10mΩ | ||
Operating Temperature Range -30 → +85°C | ||
Maximum Operating Temperature +85°C | ||
Mechanical Life 400000Operations | ||
Gemini A Series
Break before make contact timing
G and Q contacts have UL recognation
Sealed versions to IP67
G and Q contacts have UL recognation
Sealed versions to IP67
Tyco Series
Easy snap in installation
Black housing
Illuminated rocker & various legend options
Black housing
Illuminated rocker & various legend options
