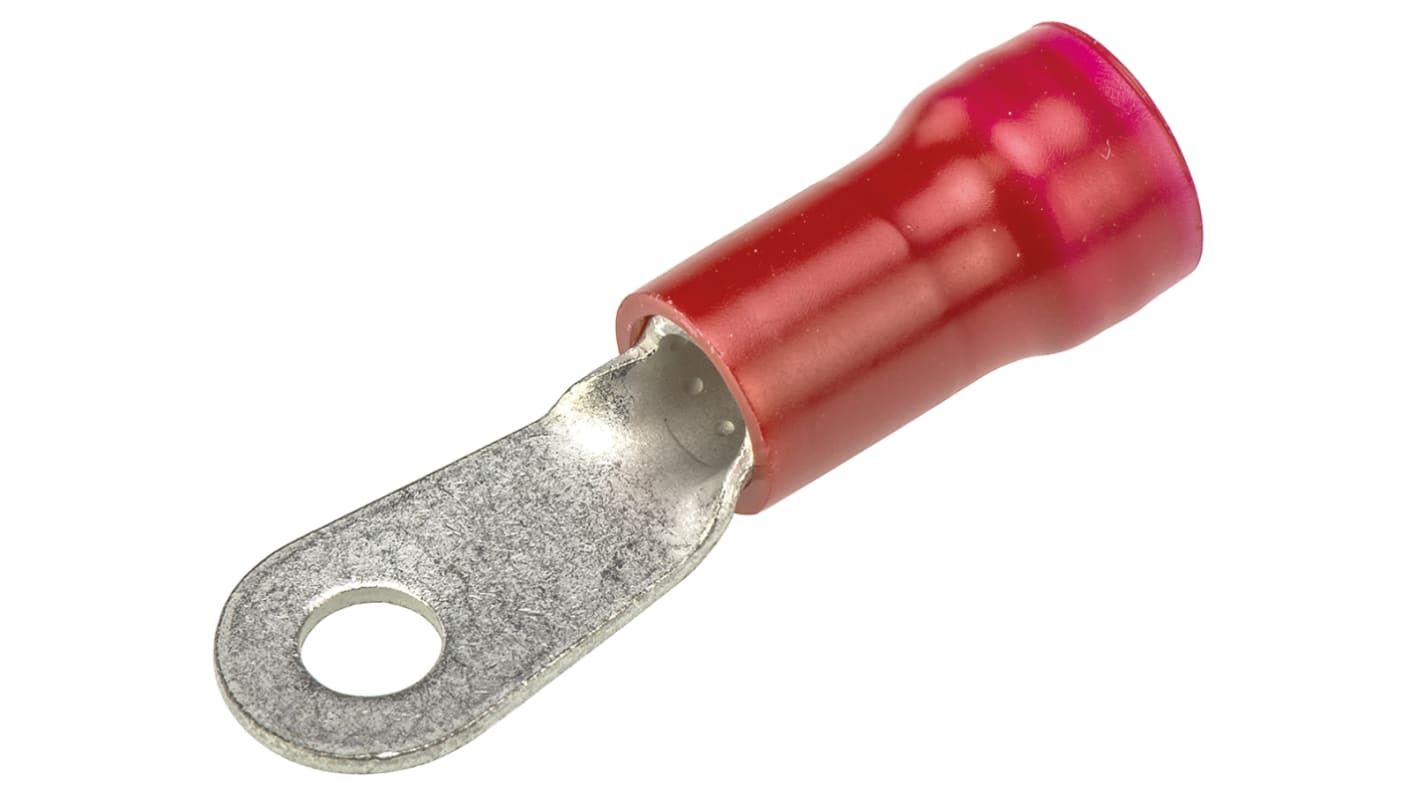

TE Connectivity, PLASTI-GRIP Insulated Ring Terminal, M5 Stud Size, 6.6mm² to 10.5mm² Wire Size, Red
- RS Stock No.:
- 719-6098
- Mfr. Part No.:
- 52263-1
- Brand:
- TE Connectivity
50 In stock - FREE next working day delivery available
150 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 50)
£0.658
(exc. VAT)
£0.79
(inc. VAT)
| Units | Per unit | Per Pack* |
| 50 + | £0.658 | £32.90 |
| *price indicative | ||
- RS Stock No.:
- 719-6098
- Mfr. Part No.:
- 52263-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals
PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily.
Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²
TE Connectivity Plasti-Grip Terminals
Specifications
Attribute | Value |
|---|---|
| Series | PLASTI-GRIP |
| Insulation | Insulated |
| Insulation Material | Vinyl |
| Inner Ring Diameter | 5mm |
| Outer Ring Diameter | 10.95mm |
| Minimum Wire Size mm² | 6.6mm² |
| Maximum Wire Size mm² | 10.5mm² |
| Maximum Wire Size AWG | 8AWG |
| Minimum Wire Size AWG | 8AWG |
| Stud Size | M5 |
| Colour | Red |
| Contact Material | Copper |
| Contact Plating | Tin |
| Thickness | 1.02mm |
| Overall Length | 40.03mm |
