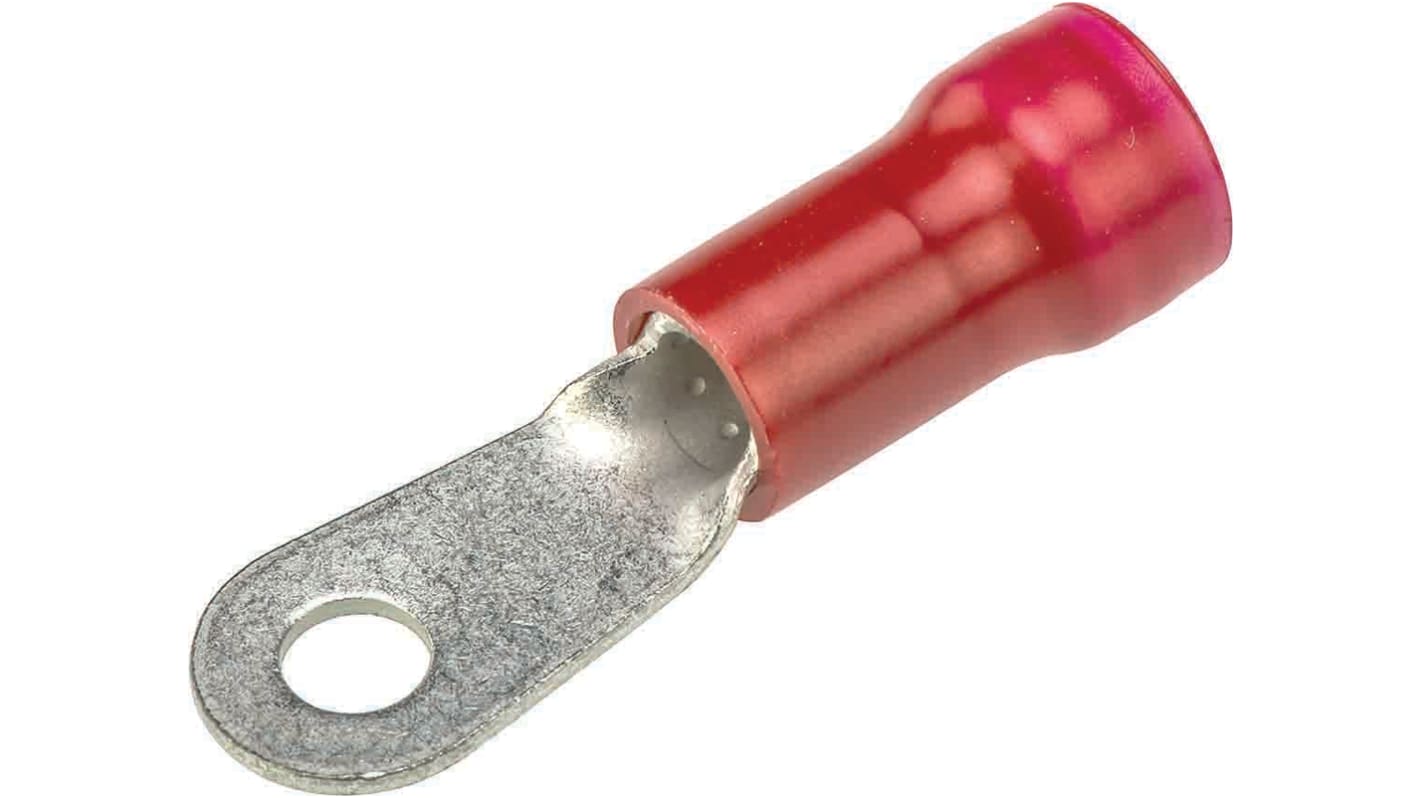

TE Connectivity, PLASTI-GRIP Insulated Ring Terminal, M4 (#8) Stud Size, 6.6mm² to 10.5mm² Wire Size, Red
- RS Stock No.:
- 795-1728
- Mfr. Part No.:
- 52041
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 25 units)*
£34.40
(exc. VAT)
£41.275
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 575 unit(s) ready to ship
- Plus 75 unit(s) ready to ship from another location
- Plus 2,000 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 100 | £1.376 | £34.40 |
| 125 - 600 | £1.21 | £30.25 |
| 625 - 1225 | £1.046 | £26.15 |
| 1250 - 2475 | £0.894 | £22.35 |
| 2500 + | £0.812 | £20.30 |
*price indicative
- RS Stock No.:
- 795-1728
- Mfr. Part No.:
- 52041
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | PLASTI-GRIP | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Inner Ring Diameter | 11.1mm | |
| Outer Ring Diameter | 12.14mm | |
| Maximum Wire Size mm² | 10.5mm² | |
| Minimum Wire Size mm² | 6.6mm² | |
| Minimum Wire Size AWG | 8AWG | |
| Maximum Wire Size AWG | 8AWG | |
| Stud Size | M4 (#8) | |
| Colour | Red | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
| Thickness | 1.02mm | |
| Overall Length | 40.28mm | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series PLASTI-GRIP | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Inner Ring Diameter 11.1mm | ||
Outer Ring Diameter 12.14mm | ||
Maximum Wire Size mm² 10.5mm² | ||
Minimum Wire Size mm² 6.6mm² | ||
Minimum Wire Size AWG 8AWG | ||
Maximum Wire Size AWG 8AWG | ||
Stud Size M4 (#8) | ||
Colour Red | ||
Contact Plating Tin | ||
Contact Material Copper | ||
Thickness 1.02mm | ||
Overall Length 40.28mm | ||
- COO (Country of Origin):
- US
TE Connectivity PLASTI-GRIP Ring Tongue Wire Crimp Terminals
PLASTI-GRIP closed barrel ring tongue wire crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP closed barrel ring tongue crimp terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funneled entry on the wire barrel enables the stripped wire to be inserted more easily.
Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²
TE Connectivity Plasti-Grip Terminals
